2.OPERATIONAL DEVICES OPERATION B-63324EN-1/03
- 50 -
2.5.5.4 System
         
        
        

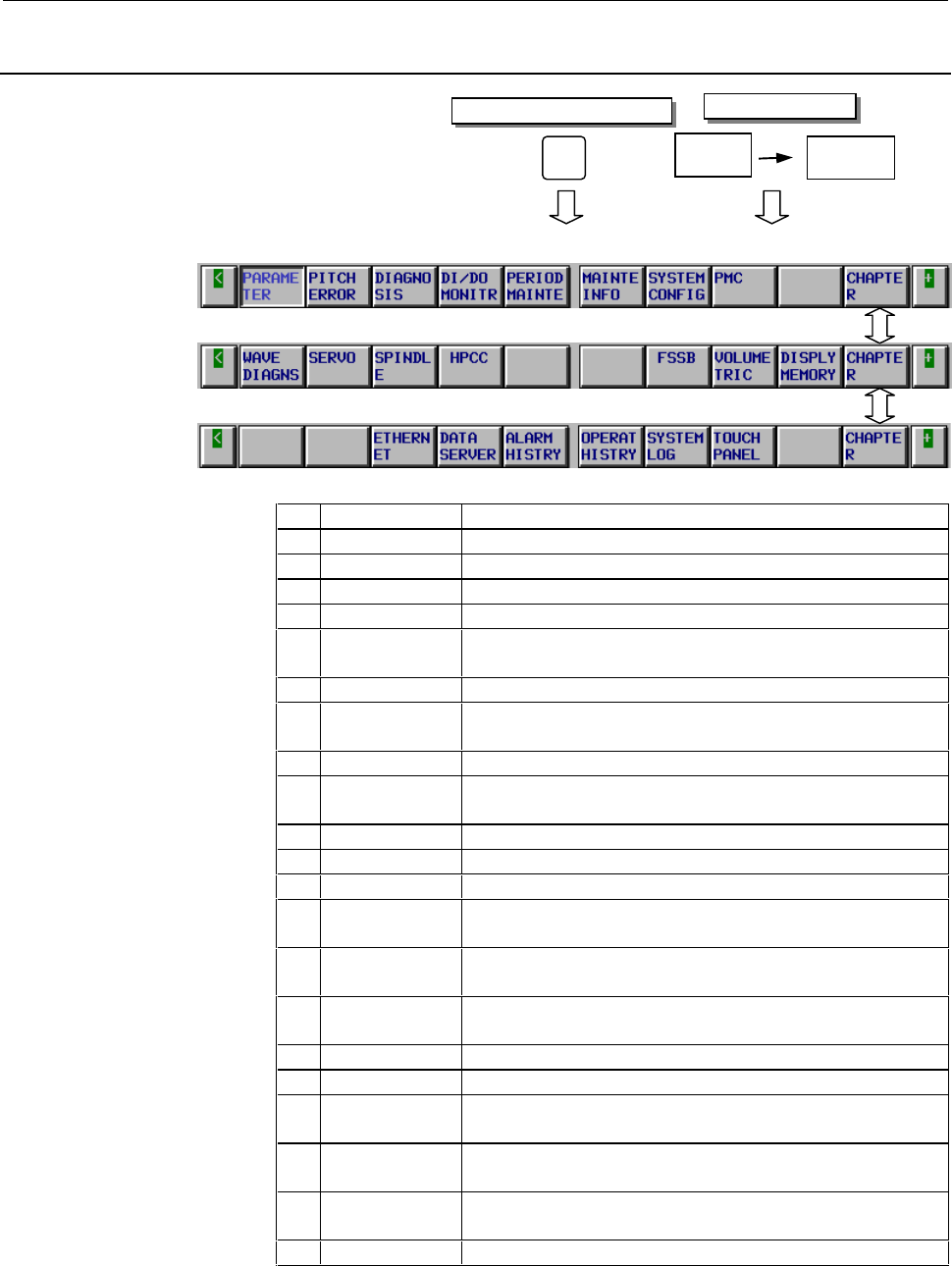

No. Chapter menu Explanation
(1) PARAMETER Selects the screen for parameter setting.
(2) PITCH ERROR Selects the screen for pitch error compensation setting.
(3) DIAGNOSIS Selects the screen for displaying the CNC status information.
(4) DI/DO MONITOR Selects the screen for displaying the signal status.
(5) PERIOD
MAINTE
Select the screen for setting those items that require routine
maintenance.
(6) MAINTE INFO Selects the screen for setting maintenance information.
(7) SYSTEM
CONFIG
Selects the screen for displaying the current system status.
(8) PMC Selects the screen related to the PMC.
(11) WAVE DIAGNS Selects the screen for graphically displaying data such as a
servo positional deviation, torque, and machine signals.
(12) SERVO Selects the screen for making servo settings.
(13) SPINDLE Selects the screen for making spindle settings.
(14) HPCC Selects the screen for setting high-precision contour control.
(17) FSSB Selects the screen for setting the high-speed serial servo bus
(FSSB: FANUC Serial Servo Bus).
(18) VOLUMETRIC Selects the screen for setting three-dimensional error
compensation values.
(19) DISPLY
MEMORY
Selects the screen for displaying the current CNC memory
contents
(23) ETHERNET Selects the screen for setting related to ethernet board.
(24) DATA SERVER Selects the screen for Data server maintenance and setting.
(25) ALARM
HISTORY
Selects the screen for displaying the descriptions of alarms
issued before
(26) OPERAT
HISTORY
Selects the screen for displaying a history of keystrokes.
(27) SYSTEM LOG Selects the screen for displaying the descriptions of system
alarms issued before.
(28) TOUCH PANEL Selects the screen for setting the touch panel.
SYSTEM
SYSTEM
CHAPTER
Function key on the MDI panel
Soft keys
Previous page
Next page
