Series 15i/150i - MA (Operation) Operators manual Page 81

Operators manual

Page of 628

/ 628

2.OPERATIONAL DEVICES OPERATION B-63324EN-1/03

- 60 -

2.8 POWER ON/OFF

2.8.1 Turning on the Power

Procedure of turning on the power

Procedure

1 Check that the appearance of the CNC machine tool is normal.

(For example, check that front door and rear door are closed.)

2 Turn on the power according to the manual issued by the machine

tool builder.

3 After the power is turned on, check that the position screen is

displayed. An alarm screen is displayed if an alarm occurs upon

power-on. If the screen shown in Maintenance Manual (Sec. 7.11)

is displayed, a system failure may have occurred.

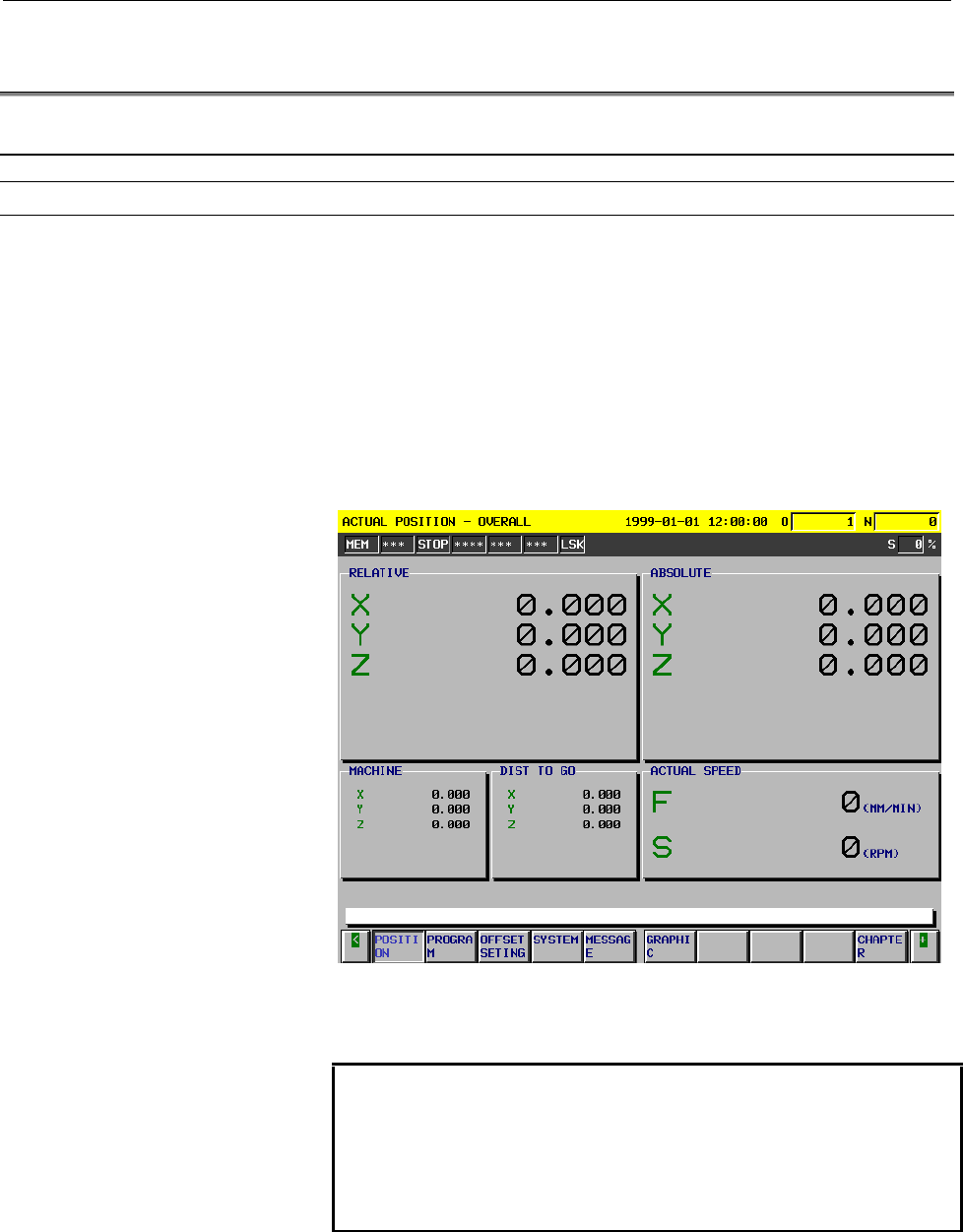

Screen & Position display

4 Check that the fan motor is rotating.

WARNING

Until the positional or alarm screen is displayed at the

power on, do not touch them. Some keys are used

for the maintenance or special operation purpose.

When they are pressed, unexpected operation may

be caused.
