9.SETTING AND DISPLAYING DATA OPERATION B-63324EN-1/03

- 344 -

If the tool does not wear, an advantage of this method is that the

tool length offset does not have to be adjusted for each new

workpiece because the actual tool length is set as the tool length

offset. If multiple workpieces are cut at one time, the need to

adjust the tool length offset can be eliminated by assigning the

workpiece coordinate system of each workpiece to G54 to G59 and

setting the individual workpiece origin offsets.

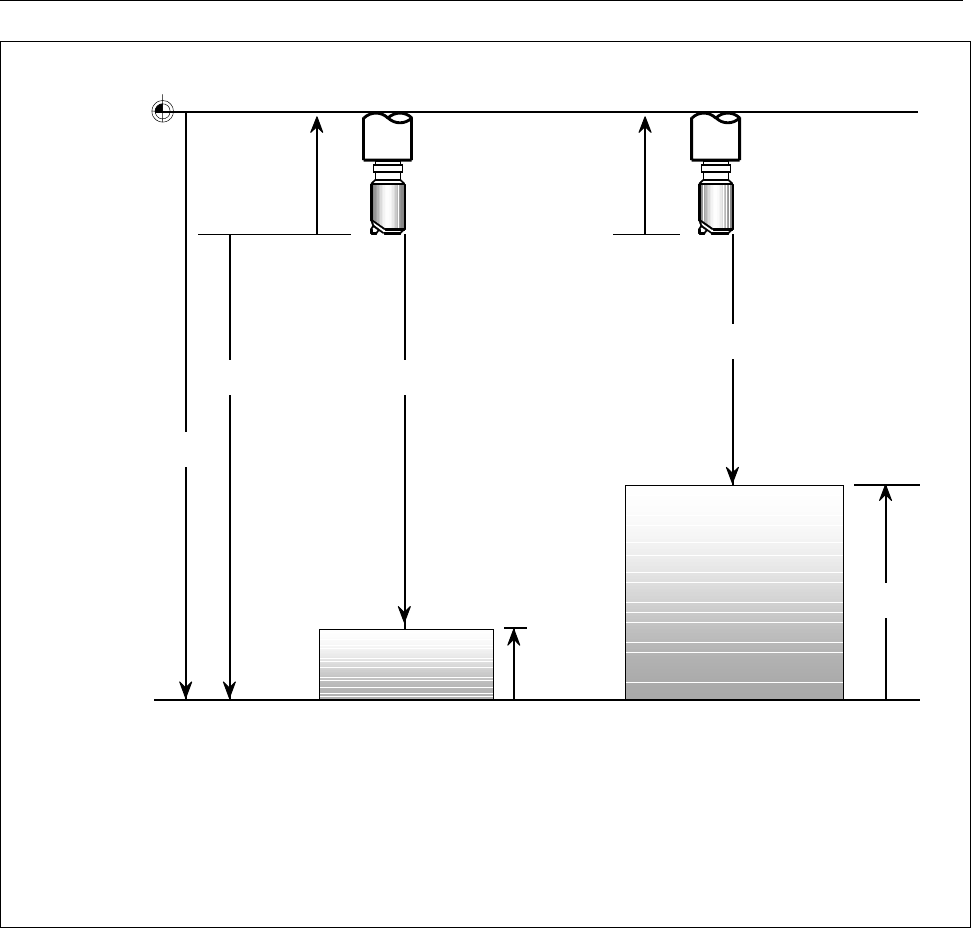

(Tool tip

position of

reference tool)

Workpiec

Measurement surface

OFSL

Measu

Machine zero point

@Hm

Reference block

Reference

L : Distance between the tool tip position of the reference tool and the reference measurement surface

(machine coordinates of the reference measurement surface)

Hm: Distance between the reference measurement surface and the actual measurement surface

Zm: Distance between the measurement surface and the tool tip position of the target tool on the machine zero

point

Zt: Distance between the reference measurement surface and the tool tip position of the target tool on the

machine zero point

OFSL: Tool length offset (OFSL = Zm - Hm - L)

Machine table Machine table

Tool

T01

Tool

T01
