B-63324EN-1/03 OPERATION 10.DISPLAY

- 441 -

10.7 ALARM MESSAGE DISPLAY

When an alarm occurs, an alarm message is displayed on the alarm

message screen.

There are three types of alarm messages:

1 Alarm messages generated by CNC self-diagnosis

2. External alarm messages

3. Alarm messages generated by custom macro commands

When an alarm occurs, the system automatically switches to the alarm

message screen. (Note that there are some cases where the system does

not switch the screen.)

To view alarm messages, follow the procedure described in Section

II-2.3, 2.5, "Messages" to display the alarm message screen.

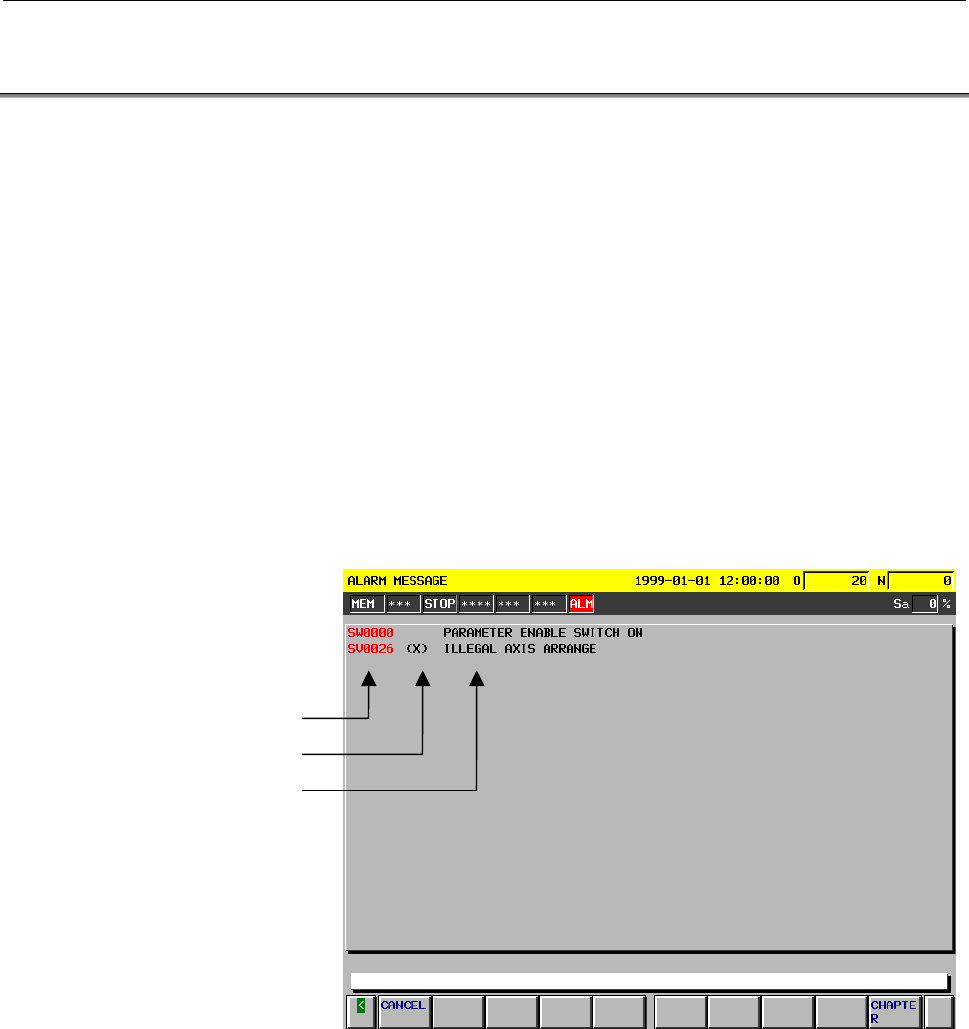

- Alarm message screen

Fig.10.7 Alarm Message Screen

An alarm message is displayed with its alarm division and number. If

the alarm is an axis-form alarm, the axis name is also displayed.

Up to 18 alarm messages can be displayed. Even if more alarms occur,

the 19th and subsequent messages cannot be displayed.

Alarm division and number

Axis number of an axis-form

alarm

Alarm message
