9.SETTING AND DISPLAYING DATA OPERATION B-63324EN-1/03

- 402 -

NOTE

If a program corresponding to the selected program

number is already in program memory, the new data

overwrites the program. If the program is currently

selected, however, no overwriting occurs. Instead, a

warning is issued to reject editing.

(2) Parameter output

Output the parameter using the following procedure.

(1) Select EDIT mode. (Terminate background editing.)

(2) Select a slave axis for which the parameter is to be output.

(3) Press soft key [PUNCH NC -> PM].

(4) Pressing soft key [EXEC] completes parameter output.

Pressing soft key [CANCEL] cancels parameter output.

Status message [PNCH] appears and blinks during parameter output.

Diagnosis screen

This screen displays diagnostic information.

Diagnostic data is represented in bit or integer (decimal) format. Refer

to the applicable power motion series connection manual for a detailed

explanation of the diagnostic data.

- Display method

(1) Press soft key [PMM].

(2) Press soft key [CHAPTER].

(3) Press soft key [DIAGNOSIS].

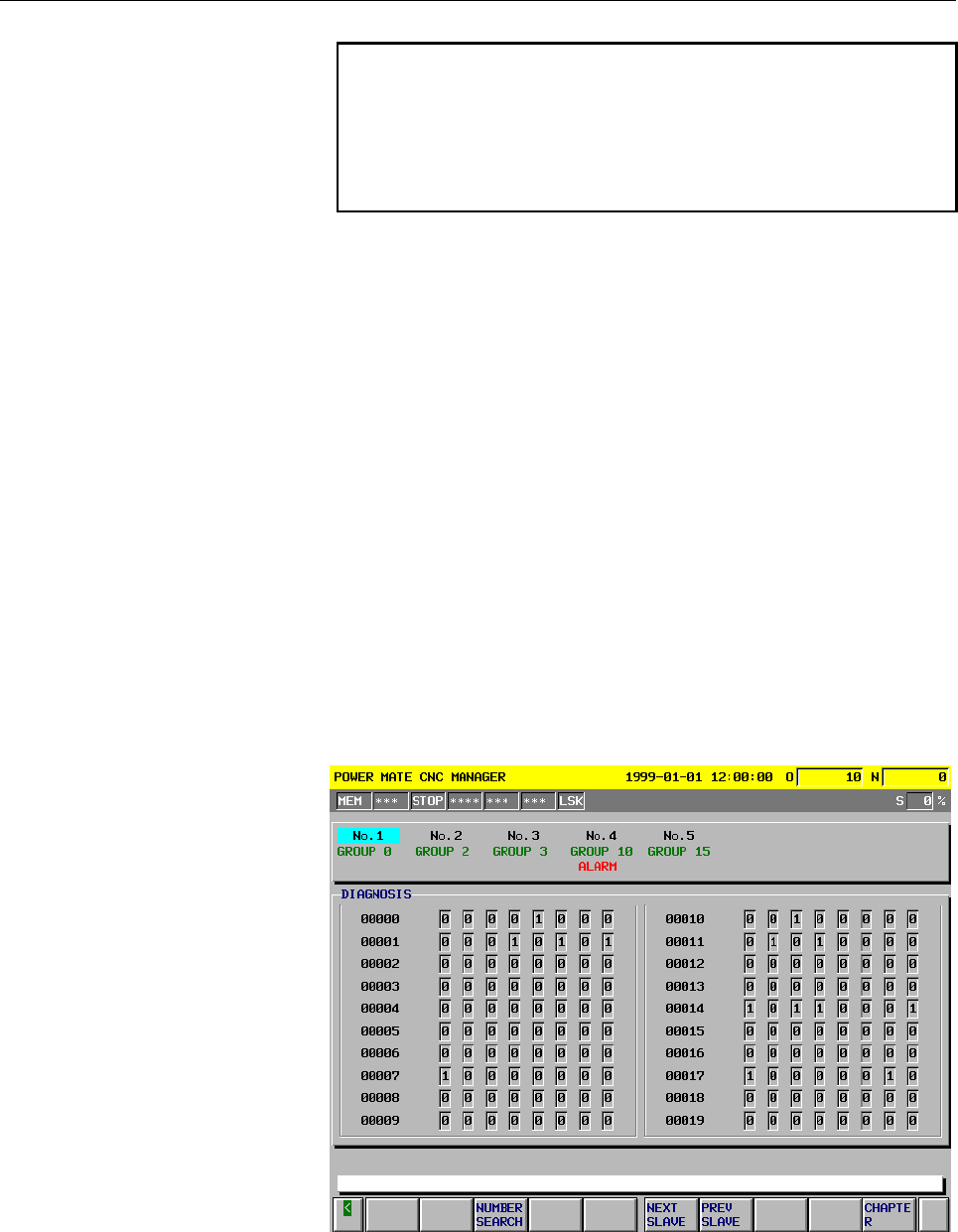

Fig. 9.20 (d) Power Mate CNC Manager Diagnosis Screen
