B-63324EN-1/03 OPERATION 10.DISPLAY

- 467 -

- Vertical rotation angle

When the selected graphic coordinate system is a three-dimensional

one, such as 7 (XYZ), 8 (YZX), or 9 (ZXY), the coordinate system can

be rotated about a specified vertical rotation axis on a horizontal plane.

The rotation angle can be set in the range of -360 to +360 deg..

The vertical rotation axis on a horizontal plane can be specified with

the angle formed with the horizontal axis on the screen. The angle can

be set for parameter No. 4832.

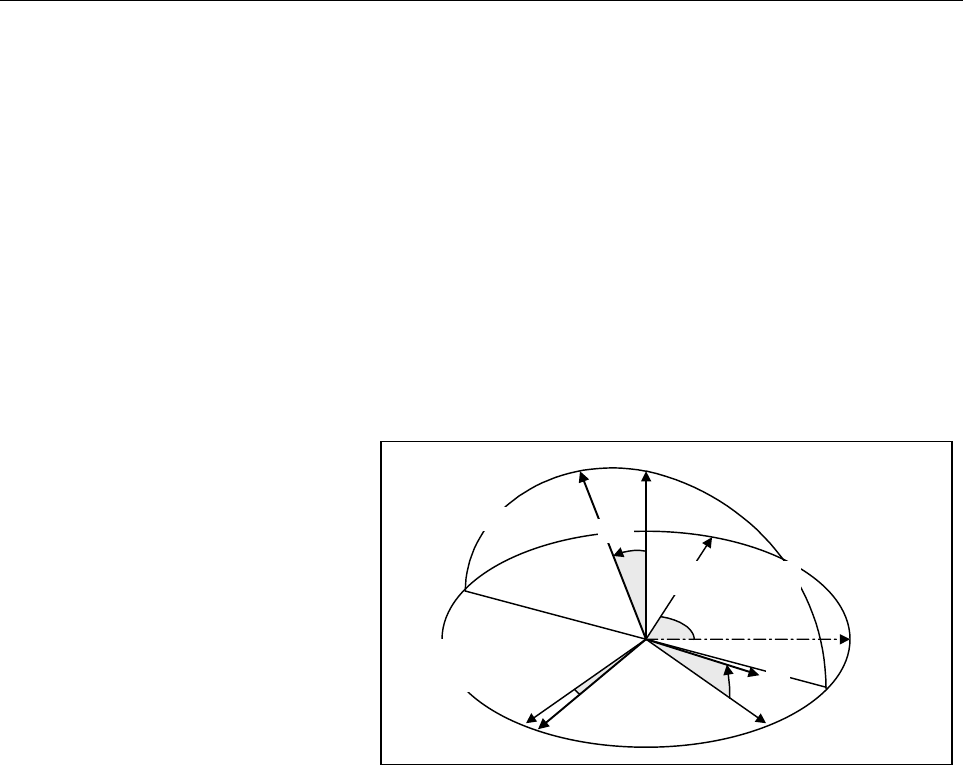

In Fig. 10.11 (g), shown below, graphic coordinate system XYZ is

converted into X’Y’Z’ because of the following settings:

Rotation angle of the vertical rotation axis: 65 deg.

Vertical rotation angle: 20 deg.

X’

Z’

Plane of rotation of the

vertical rotation axis

Initial vertical

rotation axis

Vertical plane of rotation

Y’

Vertical rotation axis

Fig.10.11 (g) Vertical Rotation of a Coordinate System

- Graphic colors

Set the number of the graphic color representing cutting feed, rapid

traverse, and reverse in the tool path.

0 : White 1 : Red 2 : Green 3 : Yellow

4 : Blue 5 : Purple 6 : Light blue 7 : White

- Setting the graphic range

To draw a tool path within the tool path graphic area, set the graphic

range. There are two ways of doing this:

1. Setting the graphic center and the scale factor

2. Setting the graphic range maximum and minimum

Whether 1 or 2 is effective depends on which parameter was specified

last. Once set, the graphic range is retained even after the power is cut

off.
