9.SETTING AND DISPLAYING DATA OPERATION B-63324EN-1/03

- 360 -

9.12 DISPLAYING AND SETTING TOOL LIFE MANAGEMENT

DATA

Tool life management data can be displayed on the screen to check the

current tool life management status. In addition, the screen can be used

to edit tool life management data.

The screen consists of the following two types of data:

- Tool life management (directory)

- Tool life management (group editing)

Displaying tool life management data

Tool life management (directory)

To display the tool life management directory screen, follow the

procedure described in Section II-2.3 or II-2.5, "Offset Setting."

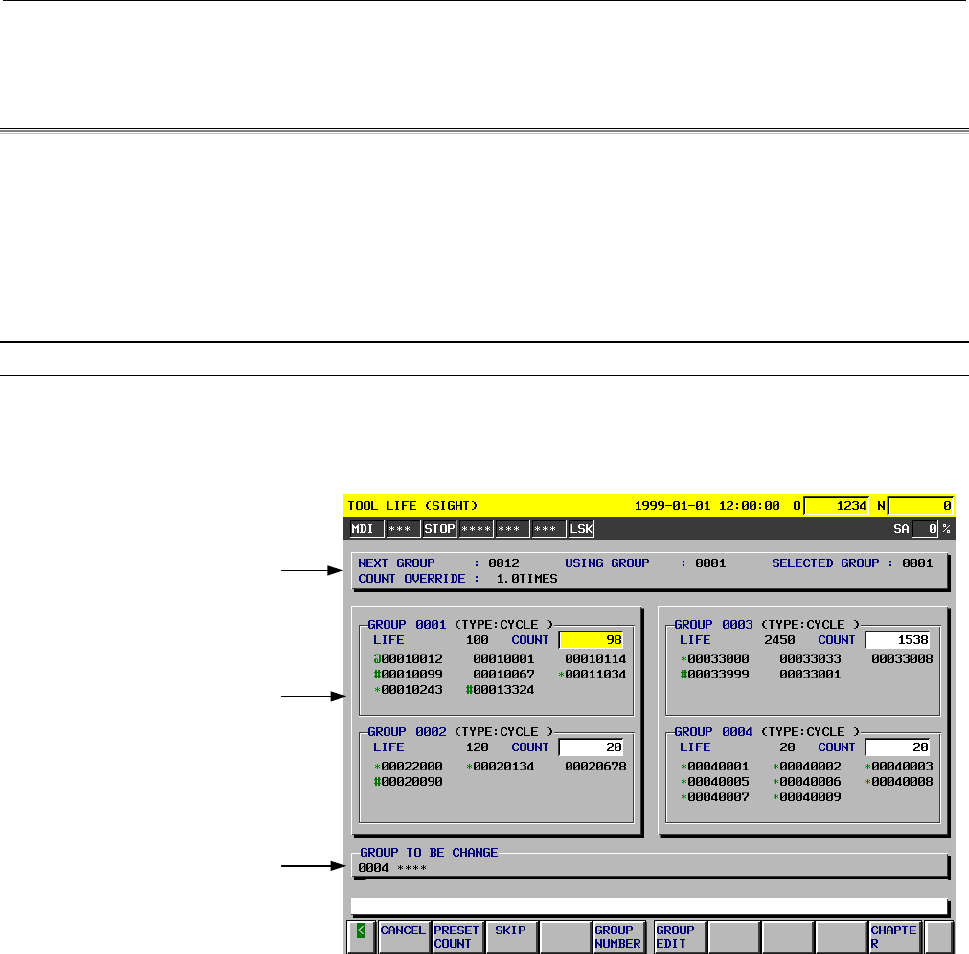

Fig.9.12 (a) Tool Life Management (Directory) Screen

- Data (A)

Group numbers that belong to the groups listed below and override

values are displayed. If there is no group number belonging to a group

below, **** is displayed instead of a group number.

Next group used : Tool group number for which service life

count is to be started with the next M06

command

Group currently used : Tool group number for which service life

count is currently being performed

Group currently selected : Tool group number for which service life

count is currently being performed, or tool

group number for which life count

operation was performed at the end

(A)

(B)

(C)
