Series 15i/150i - MA (Operation) Operators manual Page 130

Operators manual

Page of 628

/ 628

B-63324EN-1/03 OPERATION 4.MANUAL OPERATION

- 109 -

- RIGHT DIR

The amount of handle pulse interrupt in the mode of handle

feed/interrupt in the transverse direction of the tool is indicated in units

of the least input increment of a target axis for movement.

- Tip center

The amount of handle pulse interrupt in the mode of rotational handle

feed/interrupt around the center of the tool tip is indicated in units of

the least input increment of the target axis for movement.

- Tool Direction

The amount of handle pulse interrupt in the mode of handle

feed/interrupt in the longitudinal direction of the tool is indicated in

units of the least input increment of the tool axis.

- Changed offset

The amount of handle pulse interrupt in the mode of change of tool

length compensation in the longitudinal direction of the tool is

indicated in units of the least input increment of the tool axis.

- Motion value

The addresses of the machine axes used for three-dimensional handle

feed and the total amount of movement for each axis by three-

dimensional handle feed are indicated.

- Actual feedrate

The actual feedrate at the tool tip is indicated.

Operation

The displayed pulse values can be cleared using soft keys.

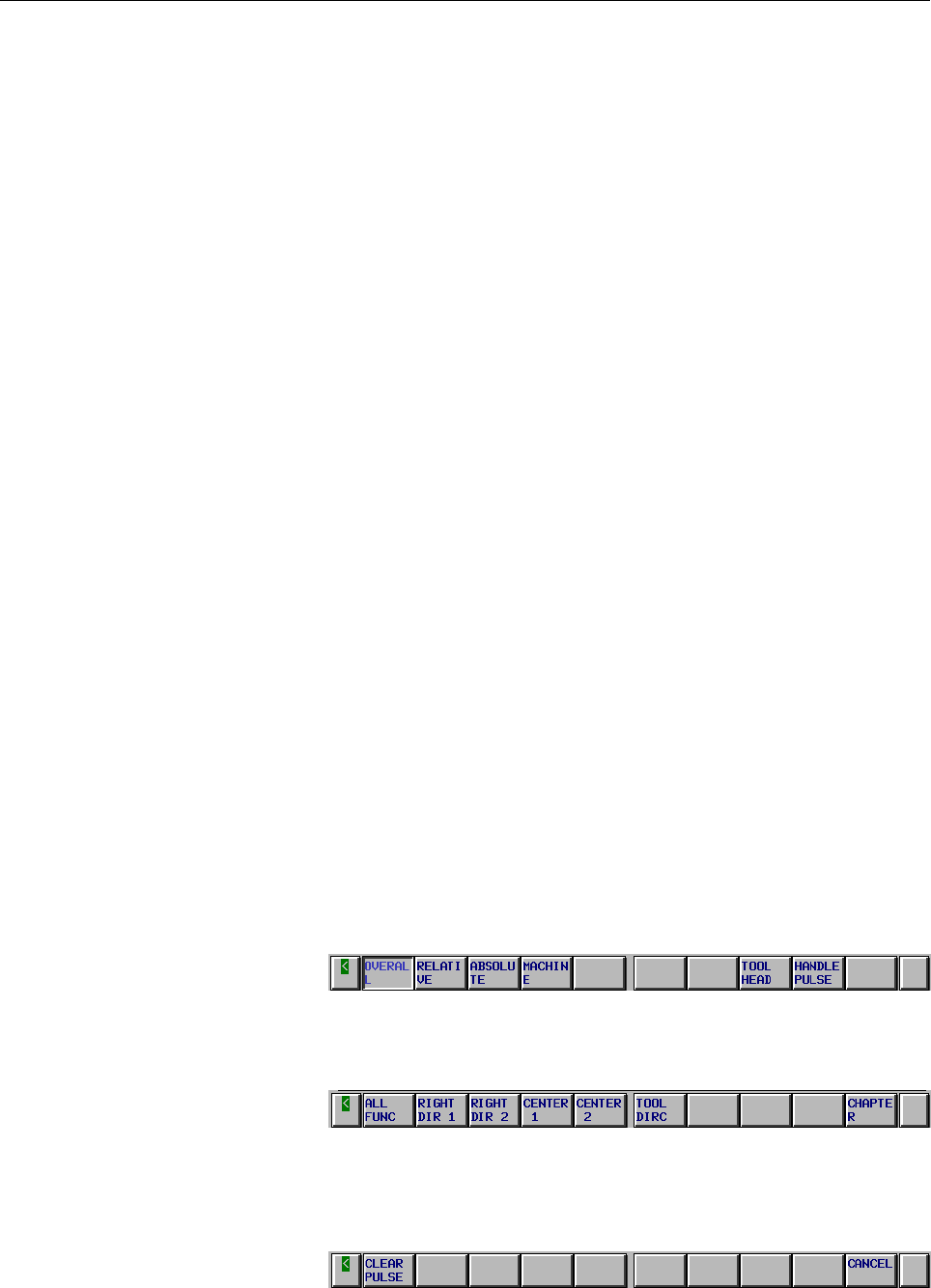

1 On the screen displaying pulse values/amount of movement by

manual interrupt, press the operation menu key (located at the

right end).

2 Select the soft key of the function for which pulse values are to be

cleared.

3 To clear the pulse values of the specified function, press the

[CLEAR PULSE] soft key. To cancel the operation, press

[CANCEL].
