B-63324EN-1/03 OPERATION 4.AUTOMATIC OPERATION

- 151 -

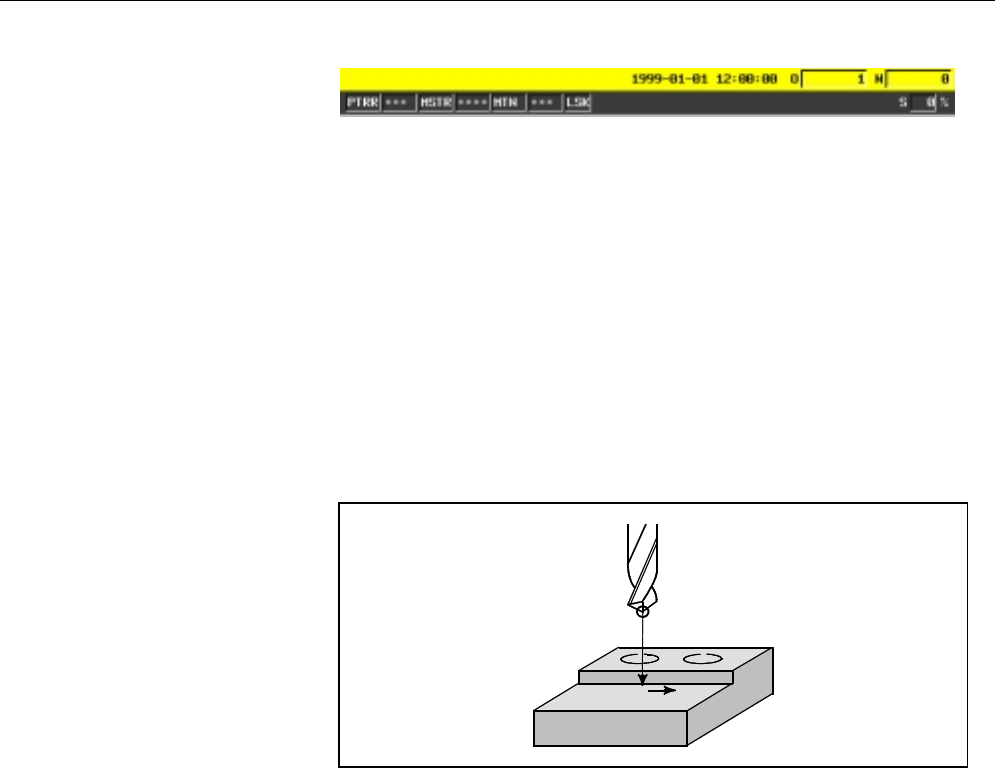

During return operation, the CRT screen displays “PTRR” and “MSTR”.

- “PTRR” blinks in the field for indicating states such as program

editing status.

- “MSTR” is displayed in the automatic operation status field.

- “MTN” is displayed in the field for indicating states such as

movement along an axis.

Procedure 5 Repositioning

While the tool is at the retraction position (point E in the figure below) and

the RETRACTION POSITION LED is on, press the cycle start switch.

The tool is then repositioned at the point where retraction was started (i.e.

where the TOOL WITHDRAW switch was turned on).

The tool is repositioned by linear interpolation at the dry run speed.

Upon completion of repositioning, the tool withdraw mode is cancelled,

and the TOOL BEING WITHDRAWN LED goes off and restart N30.

N30A

E point
