B-63324EN-1/03 OPERATION 6.SAFETY FUNCTIONS

- 191 -

6.3 STROKE CHECK

Two areas which the tool cannot enter can be specified with stored

stroke check 1 and stored stroke check 2.

Fig.6.3 (a) Stroke check

When the tool exceeds a stored stroke limit, an alarm is displayed and

the tool is decelerated and stopped.

When the tool enters a forbidden area and an alarm is generated, the

tool can be moved in the reverse direction from which the tool came.

Explanation

- Stored stroke check 1

Parameters (Nos. 5220, 5221 or Nos. 5260, 5261) set boundary.

Outside the area of the set limits is a forbidden area. The machine tool

builder usually sets this area as the maximum stroke.

- Stored stroke check 2 (G22, G23)

Parameters (Nos. 5222, 5223) or commands set these boundaries.

Inside or outside the area of the limit can be set as the forbidden area.

Parameter OUT (No. 5200#0) selects either inside or outside as the

forbidden area.

In case of program command a G22 command forbids the tool to enter

the forbidden area, and a G23 command permits the tool to enter the

forbidden area. Each of G22; and G23; should be commanded

independently of another commands in a block.

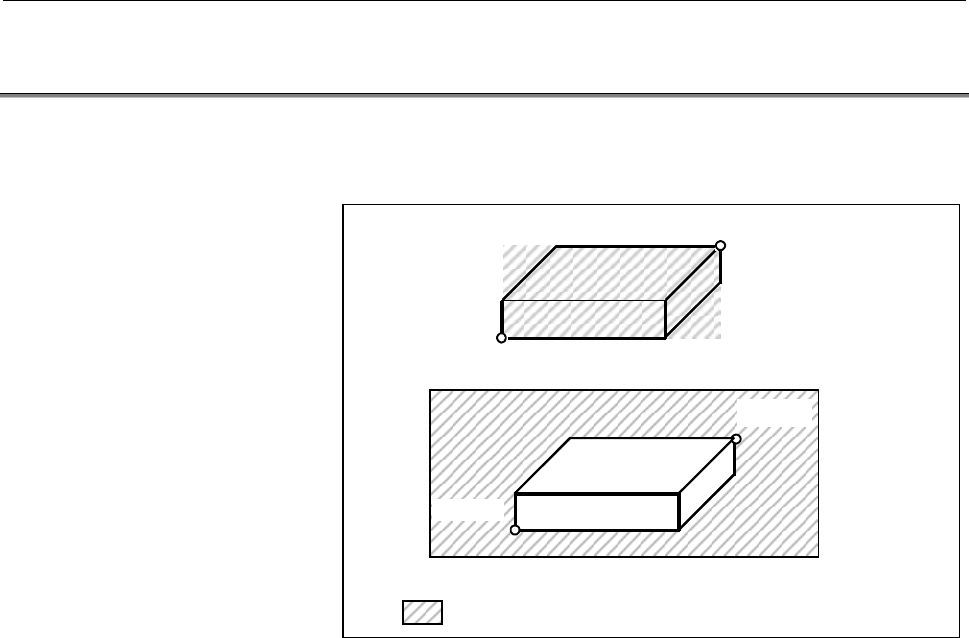

The command below creates or changes the forbidden area:

(I,J,K)

(X,Y,Z)

(I,J,K)

(X,Y,Z)

: Forbidden area for the tool

(1)

Forbidden area is inside.

(2)

Forbidden area is outside
