9.SETTING AND DISPLAYING DATA OPERATION B-63324EN-1/03

- 358 -

9.11 MENU SWITCHES

With the menu switch function, some DI signals entered with the signal

(BMI interface) from the machine can be set by CNC screen operation.

Screen configuration

To display the menu switch screen, follow the procedure described in

Section II-2.3 or II-2.5, "Offset Setting."

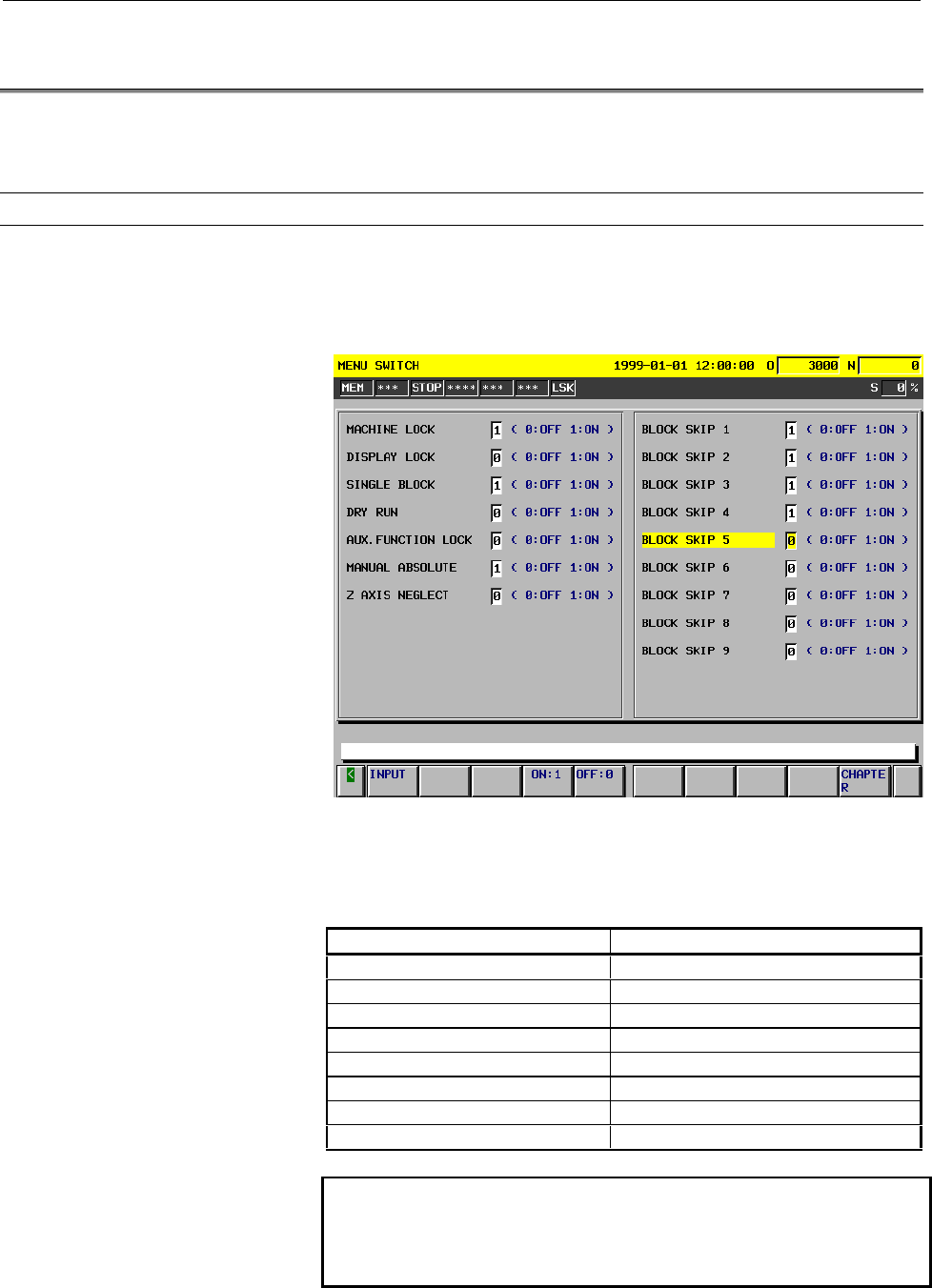

Fig.9.11 Menu Switch Screen

- Types of switches

The menu switch function can handle the following signals:

Switch name Signal

Machine lock MLK

Display lock DLK

Single block SBK

Dry run DRN

Auxiliary function lock AFL

Manual absolute ABS

Z-axis ignore Z-axis MLK(*1)

Block skip 1 to 9 BDT1-BDT9

NOTE

*1 This is MLK for the third axis, and is not always MLK

for the Z-axis, depending on the machine

configuration.
