B-63324EN-1/03 OPERATION 7.ALARMS AND SELF DIAGNOSTC FUNCTIONS

- 203 -

7.2 INTERNAL POSITION COMPENSATION DATA DISPLAY

FUNCTION

The function for displaying internal position compensation data

displays the data used in the CNC for each function while the following

functions are executed:

-Cutter compensation

-Tool length compensation

-Drilling canned cycle

-Coordinate rotation

-Three-dimensional coordinate conversion

-Programmable mirror image

-Scaling

-Three-dimensional tool compensation

-Three-dimensional cutter compensation

Display

Follow the procedure described in Section II-2.3 or 2.5 o display the

internal position compensation data screen. The right half of the screen

displays, like the program check screen, position data (selected from

relative coordinates, absolute coordinates, and machine coordinates),

the remaining amount of travel, modal values, and the actual speed.

The left half of the screen displays position compensation information

for each function and the program being executed

Cutter compensation

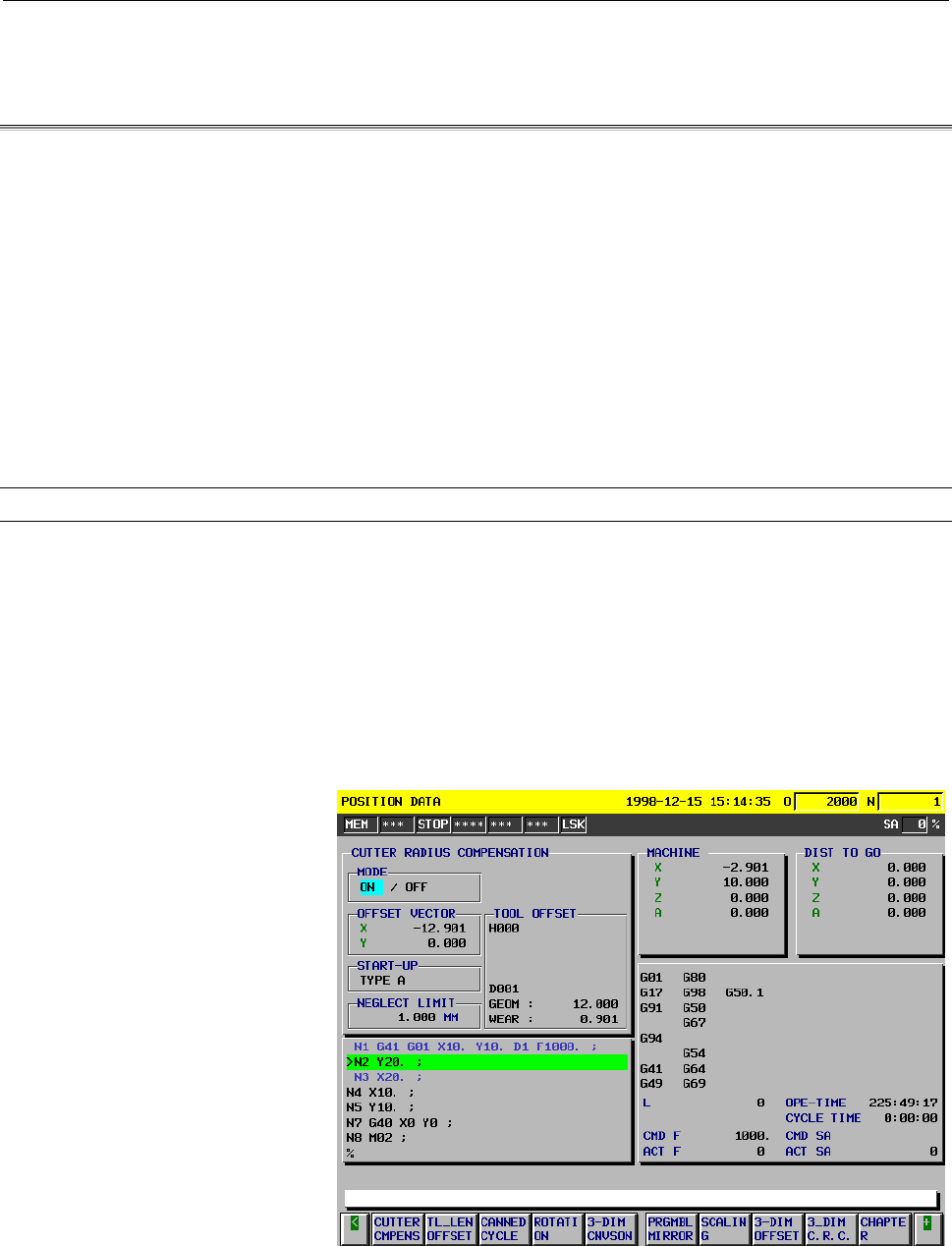

Fig.7.2 (a) Cutter compensation
