Series 15i/150i - MA (Operation) Operators manual Page 537

Operators manual
10.DISPLAY OPERATION B-63324EN-1/03
- 516 -
10.17 PROGRAM NAME 48 CHARACTERS
General
On the program directory screen, up to 48 characters of each program
name (comment) can be displayed. (Conventionally, up to 16
characters)
Program searches using program names are possible with the following
operations:
- Search using soft key [ID SEARCH] on the program text screen
- Search using soft key [ID SEARCH] on the program directory
screen
Screen and operation
- Program directory screen (48 characters for program names)
(1) Enter EDIT mode or background edit mode.
(2) Display the program directory screen.
(3) A list of program numbers is displayed first.
Press page keys
PAGE
PAGE
several times to switch to the screen
containing the program names.

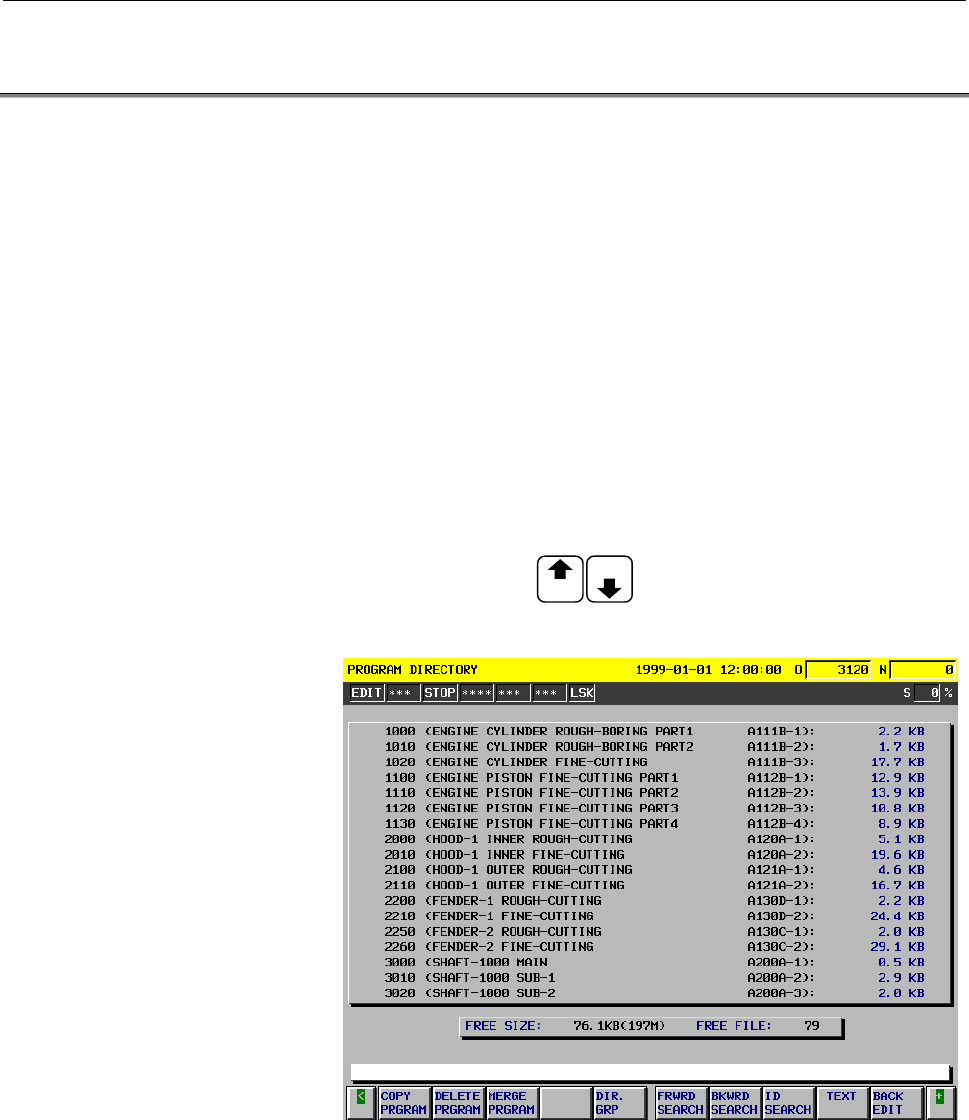

Fig. 10.17 Program Directory Screen (48 Characters for Program Names)
