B-63324EN-1/03 OPERATION 3.MANUAL OPERATION

- 99 -

3.10 CHANGING TOOL LENGTH COMPENSATION IN THE

LONGITUDINAL DIRECTION OF THE TOOL

Select the mode of changing the tool length compensation in the

longitudinal direction of tool when both the following modes are

selected: Mode of tool length compensation in the longitudinal

direction of the tool (G43.1) and mode of manual handle interrupt

(MOVL and H are on). Then rotate the handle of the manual pulse

generator. The tool length compensation is changed in the longitudinal

direction of the tool.

The change is cleared to zero when a reset or the G49 command is

executed or when the offset number is changed.

Changing the Tool Length Compensation Along the Tool Axis

Procedure

1 Make sure that the tool length compensation along the tool axis

mode (G43.1) mode is entered and that manual handle

interruption is enabled.

2 Select the tool length compensation along the tool axis change

mode switch.

3 Select the axis whose tool length compensation along the tool axis

is to be changed as the handle feed axis for the first manual pulse

generator (parameter Nos. 7556).

4 When the handle is turned, the tool length compensation along the

tool axis is changed by the corresponding distance.

The procedure above is only an example. Refer to the relevant manual

published by the machine tool builder for other possible operations.

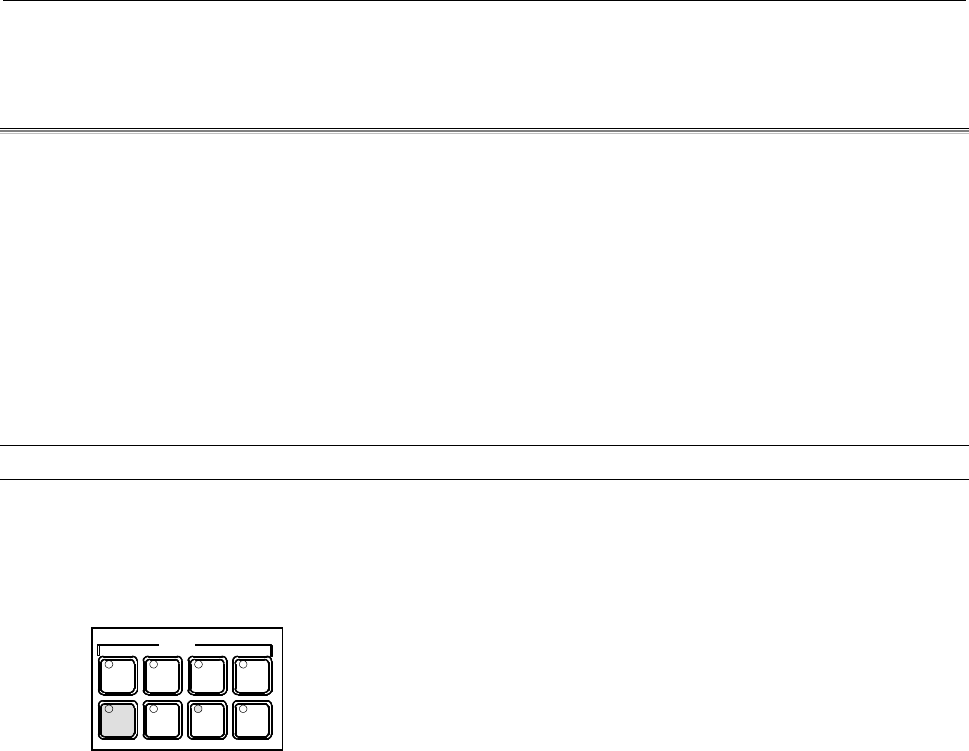

REMOTE MDIMEMORY

EDIT

ZERO

RETURN

JOG

MODE

HANDLE
