B-63324EN-1/03 OPERATION 10.DISPLAY

- 445 -

Graphic parameter screen

Follow the procedure described in Section II-2.3, 2.5, "Graphics" to

display the graphic parameter screen.

The parameters required to draw a tool path are specified on the

graphic parameter screen. The graphic parameter screen contains two

pages.

- Page 1 of the graphic parameter screen

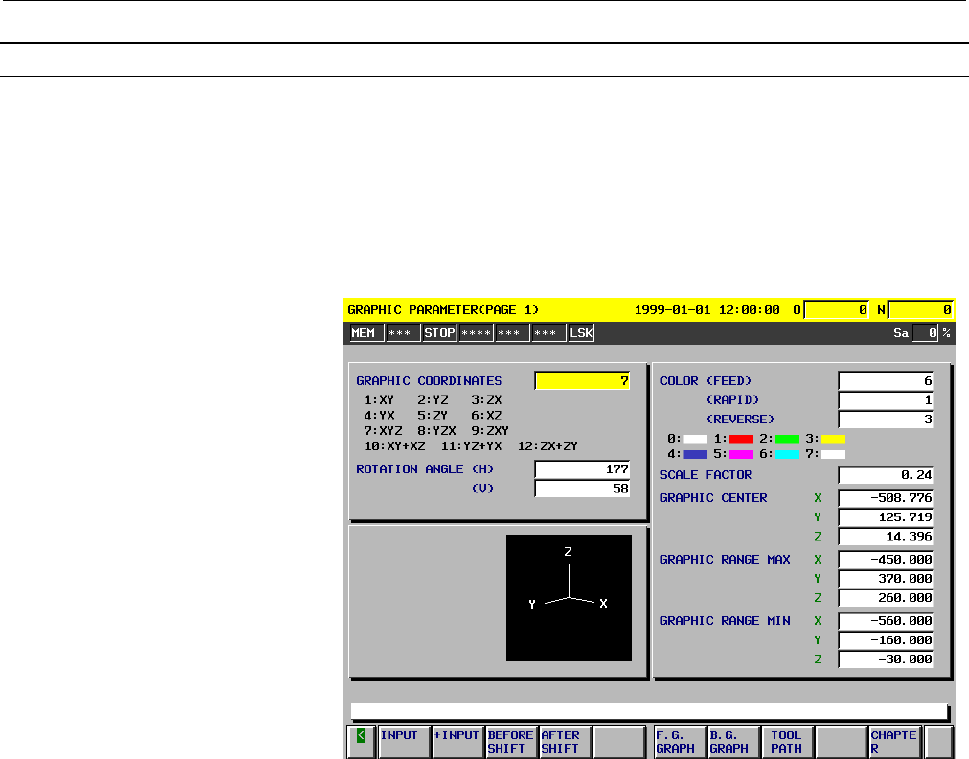

Fig10.8 (c) Page 1 of the Graphic Parameter Screen

On page 1 of the graphic parameter screen, set the graphic coordinate

system, graphic colors, and graphic range.

In the setting of the graphic coordinate system, the coordinate axes of

the coordinate system are graphically represented, together with the

axis names. If the coordinate system is three-dimensional, it is

displayed with the rotation angle.

The graphic range can be set in either of two ways: with the scale

factor and the graphic center or with the graphic maximum and

minimum.
