B-63324EN-1/03 OPERATION 12.INPUTTING/OUTPUTTING DATA

- 535 -

12 INPUTTING/OUTPUTTING DATA

Information written on floppy disks, NC tape, and memory cards can be

loaded into the CNC, using the memory card slot or an external

input/output unit such as the Handy File. Information can also be

written to these media.

The following types of information can be input and output:

1. NC program

2. System parameter

3. Pitch error data

4. Tool offset data

5. Workpiece origin offset data

6. Custom macro variable

7. System log data

8. Periodic maintenance data

9. Item selection menu (machine system) data

10. Volumetric compensation data

11. Tool offset data with a tool number

12. Fixture offset data

13. Rotary head dynamic tool compensation data

14. System configuration data

Before an input/output unit can be used, the parameters related to

input/output must be specified.

For an explanation of specifying the parameters, see Section II-2,

"Operation Units."

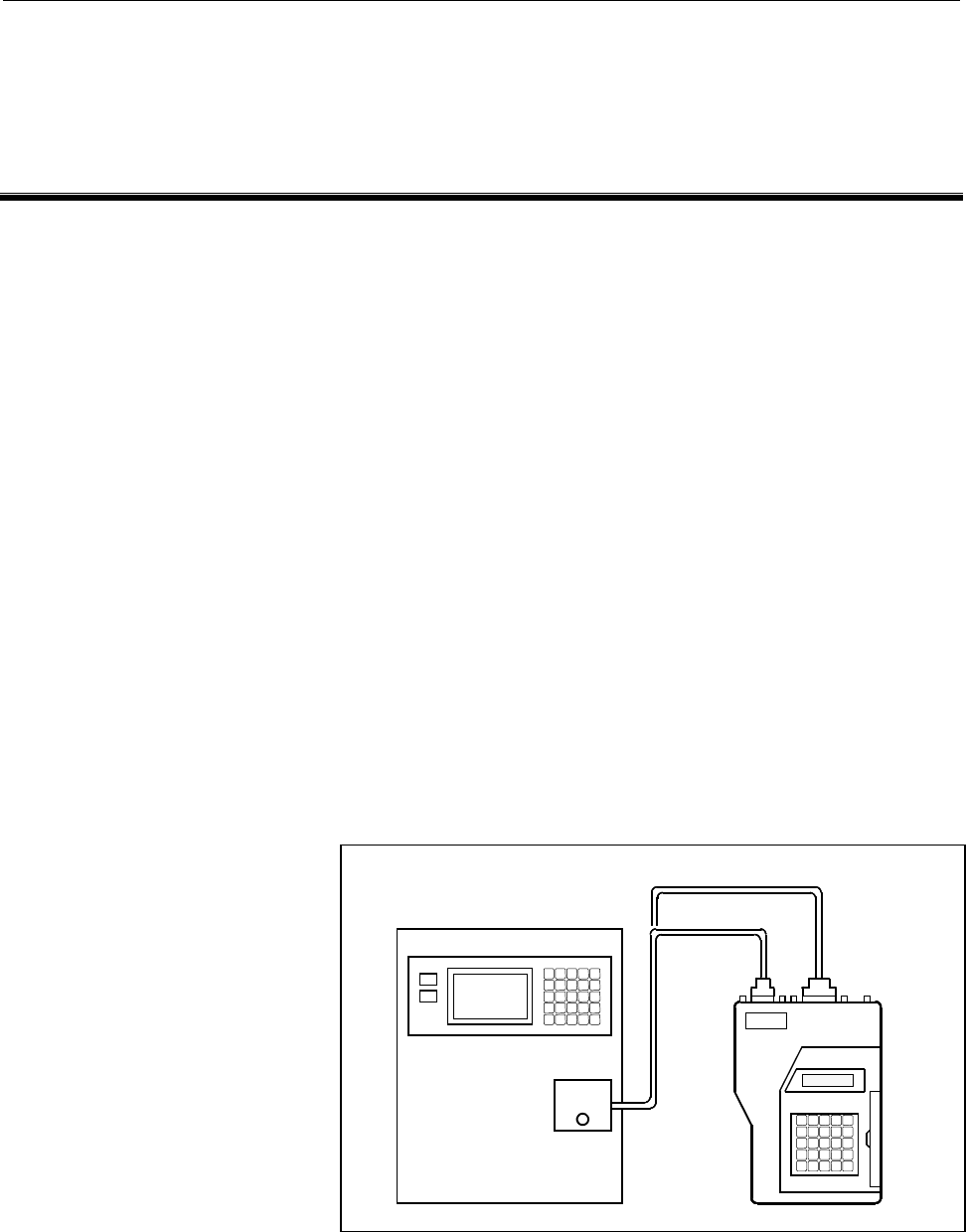

Fig.12 Example of Connecting an External Input/Output Unit

(Connection of the Handy File)

RS-232C or

RS-422 interface

(such as a punch panel)

FANU

Handy File

RS-232C

interface

RS-422

interface
