B-63324EN-1/03 OPERATION 9.SETTING AND DISPLAYING DATA

- 399 -

- Slave state display and selection operations

The following information related to the connected slaves (up to 8) is

displayed at the top of the screen.

- I/O Link group numbers (0 to 15)

- Alarm conditions

The cursor is positioned to the slave number of a display target slave

(active slave). If there is more than one slave, the active slave is

switched by pressing soft key [NEXT SLAVE] or [PREV SLAVE].

The slave state display and selection operations can be performed on all

Power Mate CNC manager function screens.

Current position display screen

This screen displays the current positions of the slaves and their actual

feedrates.

The current positions are displayed using the following types of

coordinate data.

- Absolute coordinates

(current position in the workpiece coordinate system)

- Machine coordinates

(current position in the machine coordinate system)

- Display method

(1) Press soft key [PMM].

(2) Press soft key [CHAPTER].

(3) Press soft key [POSITION].

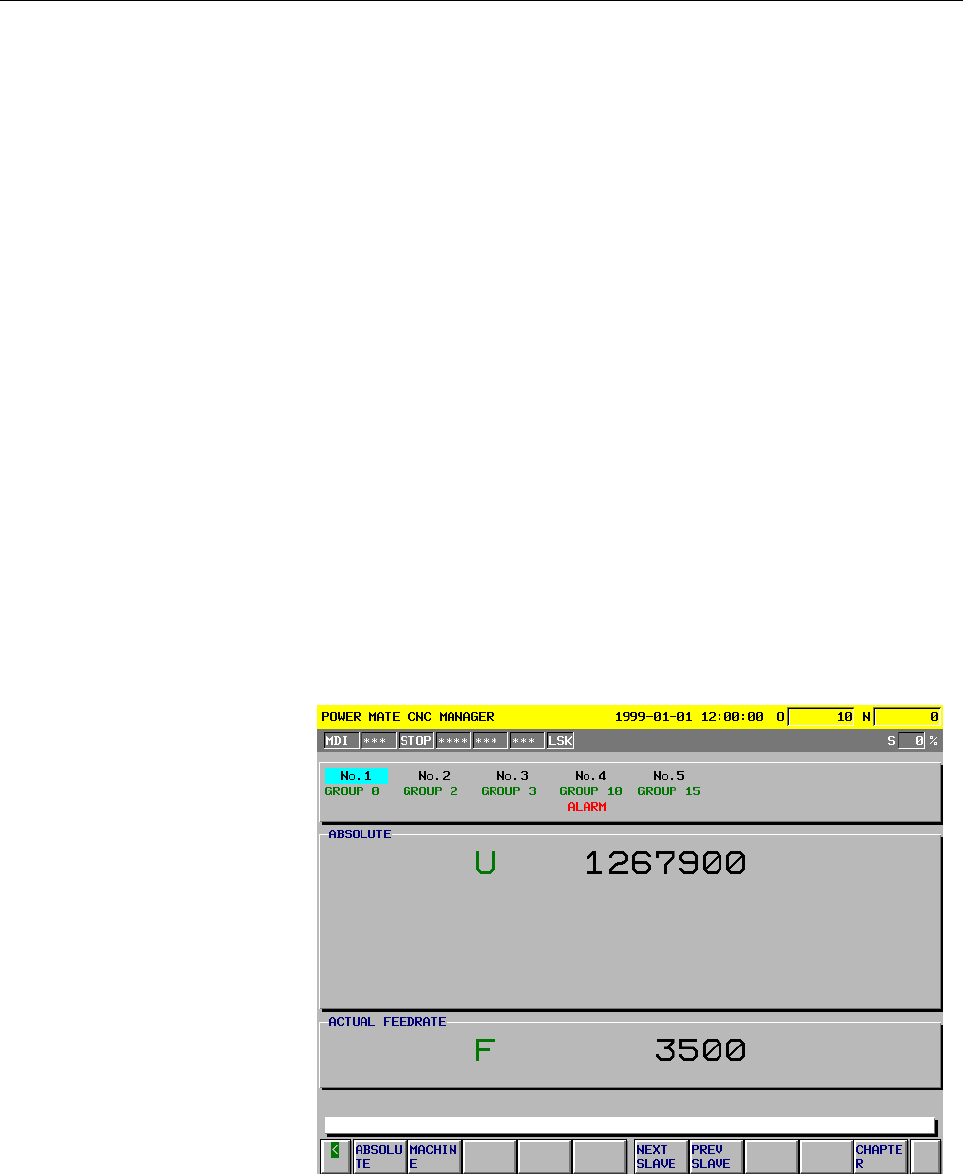

Fig. 9.20 (b) Power Mate CNC Manager Current Position Display Screen

- Display position selection

The current position type to be displayed is selected using soft keys:

- Absolute coordinate display: Press soft key [ABSOLUTE].

- Machine coordinate display: Press soft key [MACHINE].
