3.MANUAL OPERATION OPERATION B-63324EN-1/03

- 96 -

3.9.3 Rotational Handle Feed Around the Center of the Tool Tip

Select the mode of rotational handle feed around the center of the tool

tip and rotate the handle of the manual pulse generator. When the

rotation axis (A-, B-, or C-axis) is moved, the X-, Y-, and Z-axes are

adjusted so that the movement of the rotation axis does not shift the tool

tip.

If this mode is selected in the manual handle interrupt mode in

automatic operation, rotation around the center of the tool tip by the

manual pulse generator is superimposed on the movement by automatic

operation.

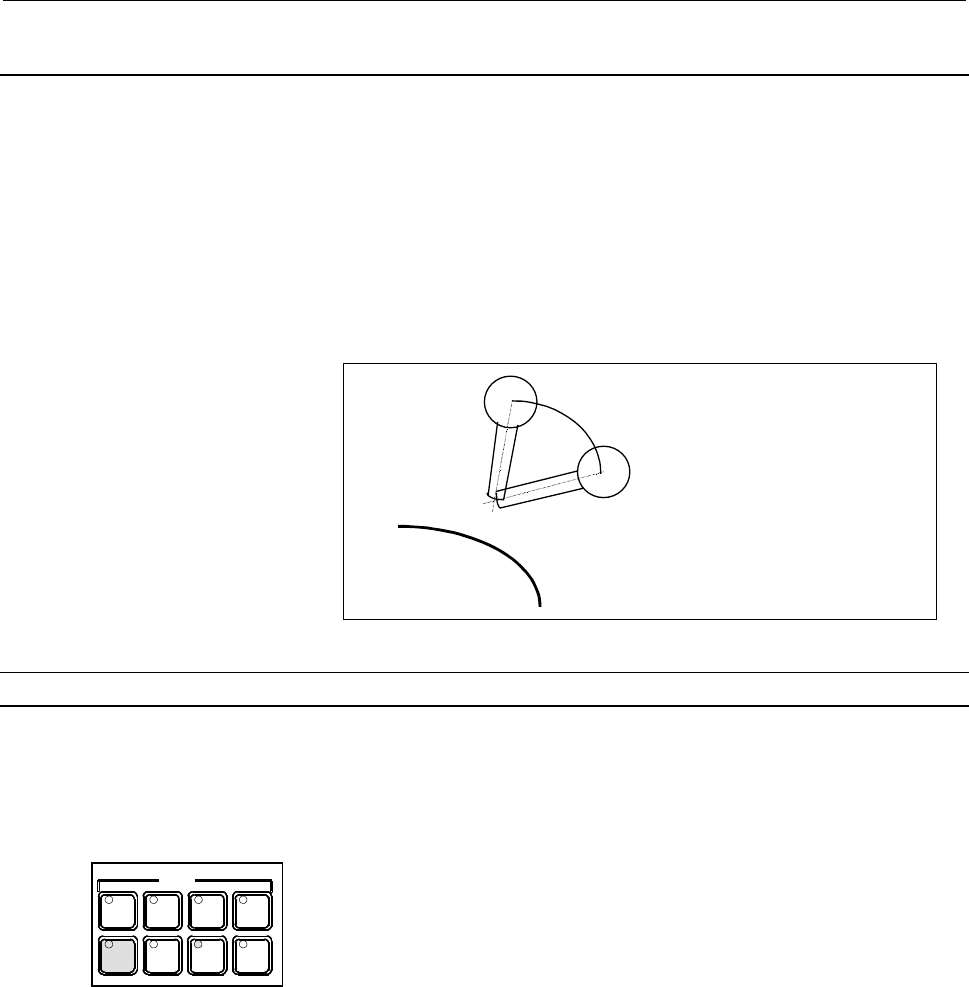

P1 (Tool tip position)

01 (Tool rotation center)

With the relative relationship between the

tool tip position (P1) and workpiece held as

is, the rotation axis is turned while the X-, Y-,

and Z-axes are adjusted so that the tool

rotation center moves from 01 to 02.

Workpiece

Rotational Handle Feed Around Tool Tip

Procedure

1 Select the HANDLE switch from the mode selection switches.

2 Select the rotational handle feed around tool tip switch.

3 Select the rotational handle feed around tool tip mode axis as the

handle feed axis for the first manual pulse generator (parameter

Nos. 7554, 7555).

4 When the handle is turned, the tool rotates around the tool tip by

the corresponding distance.

When the tool direction handle feed mode and tool axis right-angle

direction handle feed mode are selected, neither mode is set, but the

ordinary handle mode is set.

The procedure above is only an example. Refer to the relevant manual

published by the machine tool builder for other possible operations.

Explanation

- Pulse distribution to basic axes

In the case of rotation around tool tip, linear axis movement (Xp, Yp,

Zp) calculated by the equation below is output simultaneously with

rotation of the rotary axis. As a result, the tool tip position hardly

moves. (The tool tip may move when the rotary axis is rotated at high

speed.) The pulse distribution to basic axes by rotational handle

REMOTE MDIMEMORY

EDIT

ZERO

RETURN

JOG

MODE

HANDLE
