B-63324EN-1/03 OPERATION 4.AUTOMATIC OPERATION

- 155 -

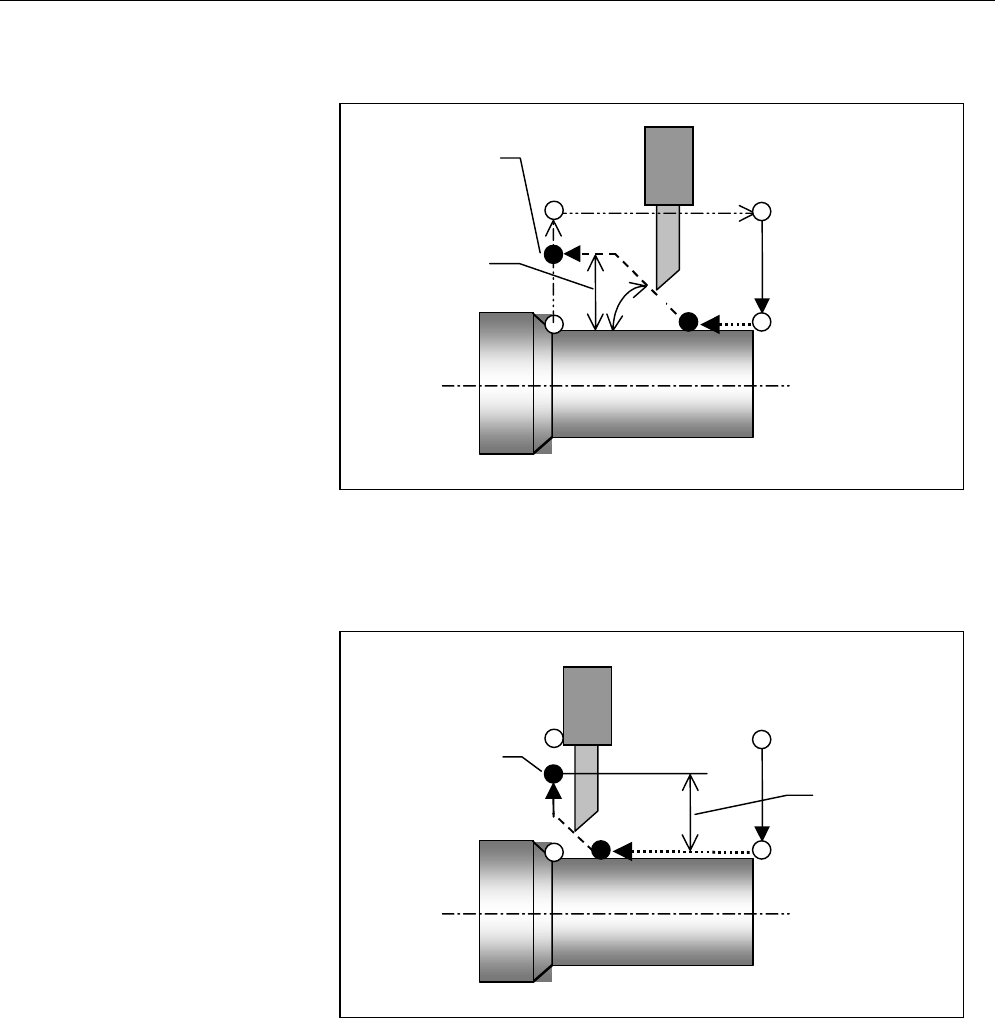

(1) When the remaining thread cutting amount => retract amount

When the tool does not travel beyond thread cutting end point

(c), where the tool moves off the workpiece at an angle of 45° by

the retract amount, the tool moves to the thread cutting end point

after being moved off the workpiece.

(2) When the remaining thread cutting amount < retract amount

When the tool travels beyond thread cutting end point (c), where

the tool is moved off the workpiece at an angle of 45° by the

retract amount, the retract axis moves to the retract position

after arriving at the thread cutting end point.

45°

Retract position

Retract amount

Retract position

Retract amount
