4.AUTOMATIC OPERATION OPERATION B-63324EN-1/03

- 142 -

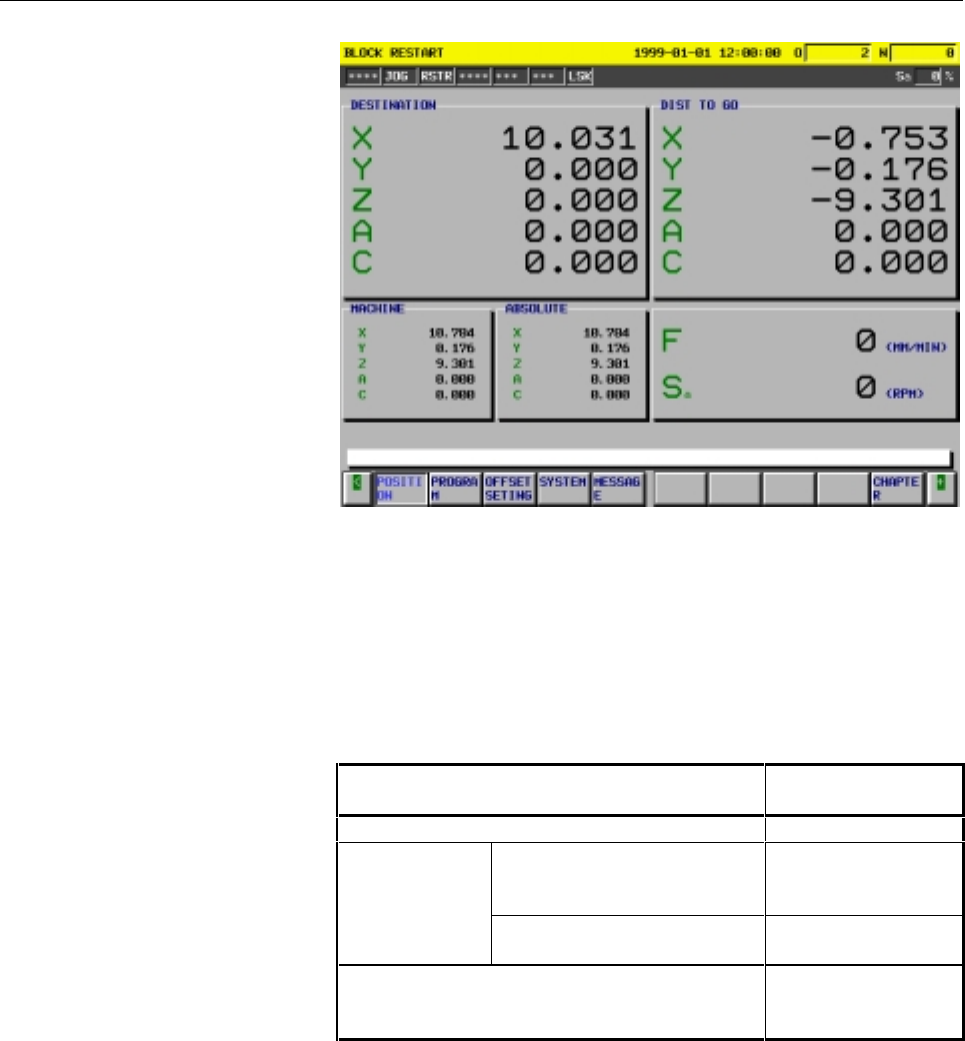

Fig. 4.9

(i) (DESTINATION): Absolute coordinates of the tool center at

the start point of the interrupted block

(ii) (DISTANCE TO GO): Distance from the current position

(ABSOLUTE) of the tool to the start

point (DESTINATION) of the

interrupted block

(iii) Status of RSTR display

Various conditions

(mode, cutter compensation, etc.)

RSTR is displayed

continuously.

Continuous manual feed (JOG) mode RSTR blinks.

When the outer corner is being

compensated in the cutter

compensation mode.

RSTR blinks.

Automatic

operation

(MEMORY, TAPE,

or MDI)

Other than the above RSTR is displayed

continuously.

Reset state

RSTR does not appear

regardless of what the

current mode is.
