Series 15i/150i - MA (Operation) Operators manual Page 61

Operators manual

Page of 628

/ 628

2.OPERATIONAL DEVICES OPERATION B-63324EN-1/03

- 40 -

2.2 EXPLANATION OF THE KEYBOARD

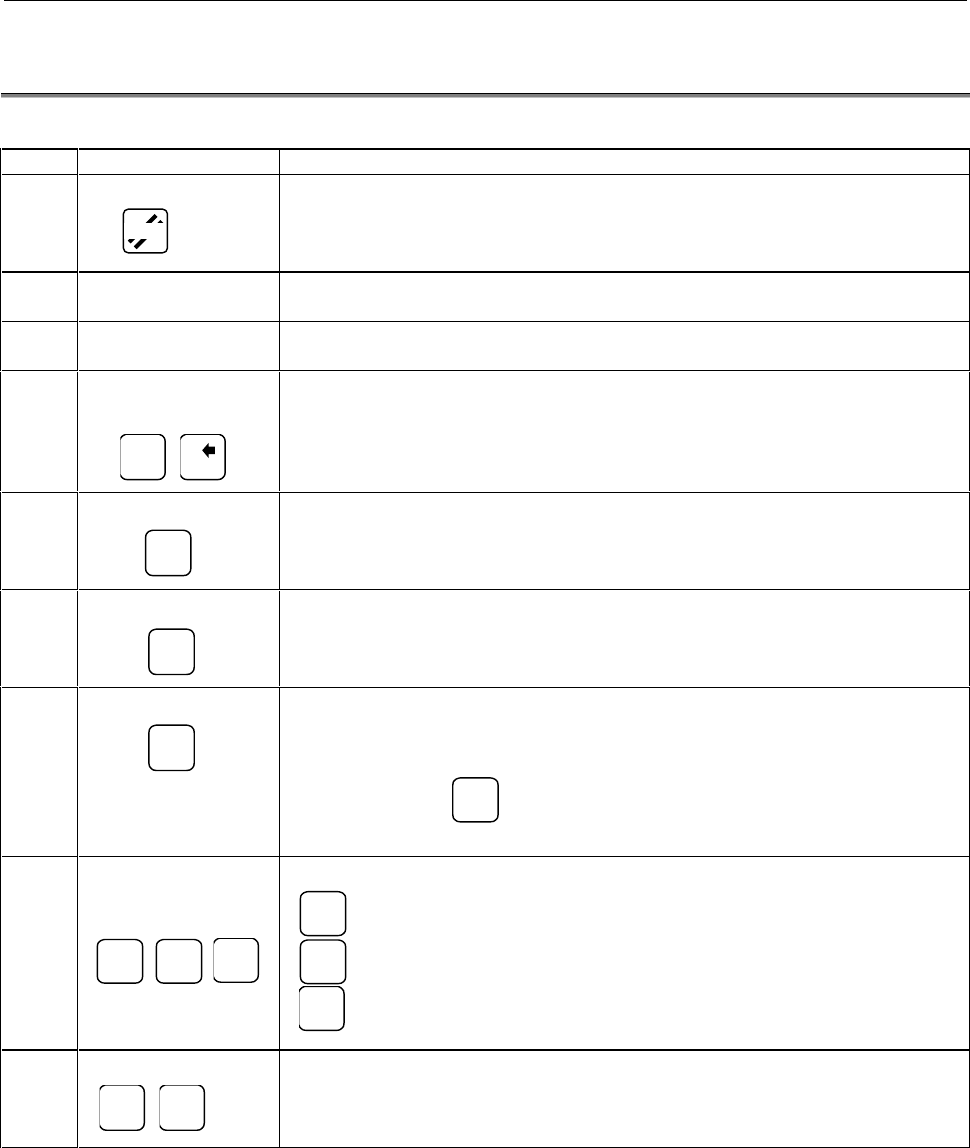

Table2.2 (a) Explanation of the MDI keyboard

Number Name Explanation

1 RESET key Press this key to reset the CNC, to cancel an alarm, etc.

2 HELP key Press this button to use the help function when uncertain about the operation of an MDI

key (help function).

3 Soft keys The soft keys have various functions, according to the Applications. The soft key

functions are displayed at the bottom of the screen.

4 Address and numeric

keys

Press these keys to input alphabetic, numeric, and other characters.

5 SHIFT key Some keys have two characters on their keytop. Pressing the <SHIFT> key switches

the characters. Special character # is displayed on the screen when a character

indicated at the bottom right corner on the keytop can be entered.

6 INPUT key When an address or a numerical key is pressed, the data is input to the buffer, and it is

displayed on the screen. To copy the data in the key input buffer to the offset register,

etc., press the key. This key is equivalent to the [INPUT] key of the soft keys, and

either can be pressed to produce the same result.

7 Cancel key

Press this key to delete the last character or symbol input to the key input buffer.

When the key input buffer displays

>N001X100Z_

and the cancel key is pressed, Z is canceled and

>N001X100_

is displayed.

8 Program edit keys Press these keys when editing the program.

: Alteration

: Insertion

: Deletion

9 Function keys Press theses keys to switch display screens for each function.

See lll - 2.5 for details of the function keys.

SHIFT

)

INPUT

CAN

ALTER INSERT

DELETE

ALTER

INSERT

DELETE

RESET

POS PROG
