Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A Maintenance manual Page 240

Maintenance manual
B--63005EN/02
2. LCD--MOUNTED TYPE i SERIES HARDWARE
215

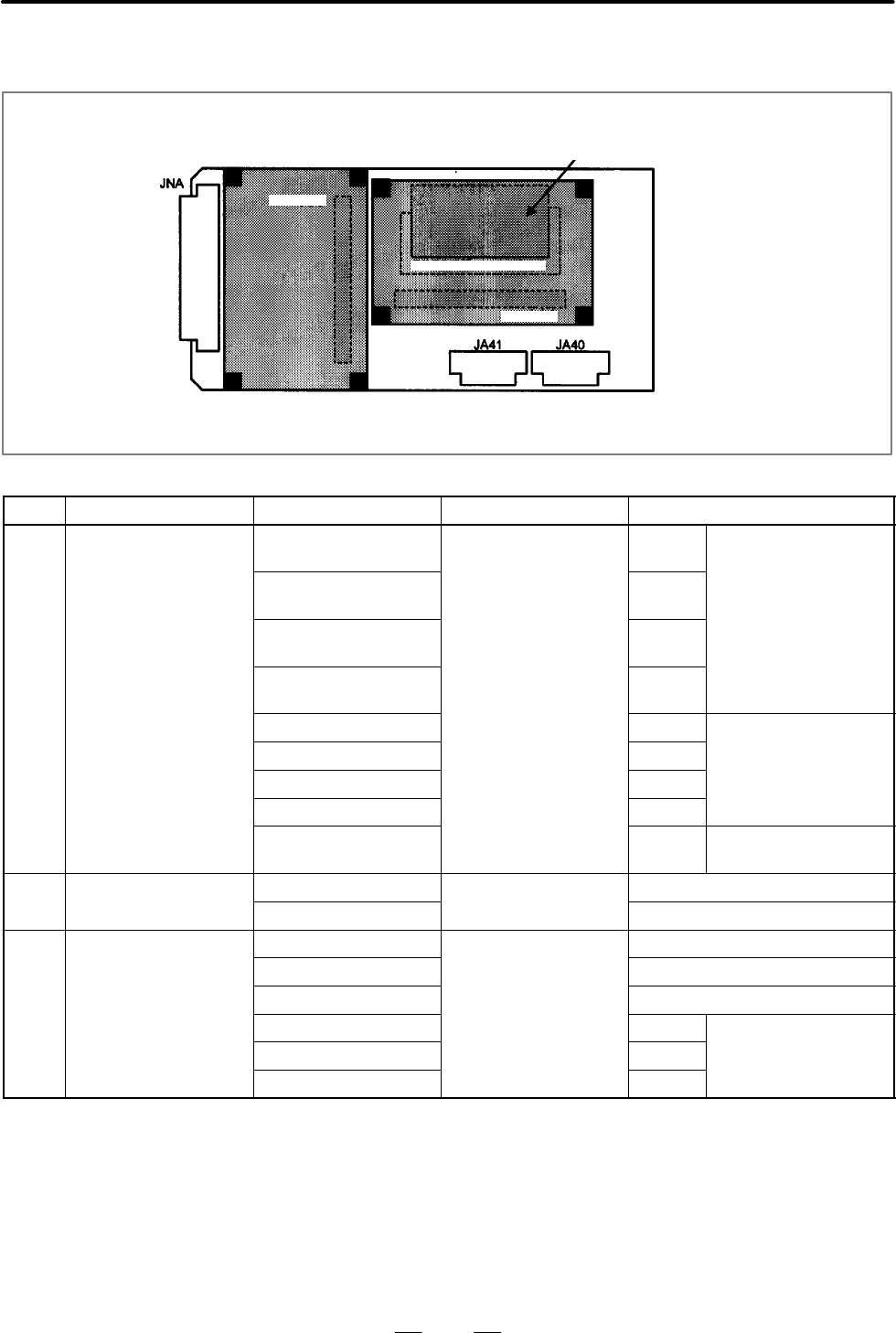

Connector
DIMM module socket
Connector
(1)
Axis control card
(2)
CPU card
(3)
DRAM module
The DRAM module is mounted on the CPU card.
No.
Name Specification Function Remarks
(1) Axis control card A17B--3300--0100
A17B--3300--0102
Axis control 8-- axes Applicable servo soft-
ware: Series 9090
A17B--3300--0101
A17B--3300--0103
6-- axes
A20B--3300--0030
A20B--3300--0032
4-- axes
A20B--3300--0031
A20B--3300--0032
2-- axes
A17B--3300--0200 8-- axes Applicable servo soft-
S
i
9
0
A
0
d
A17B--3300--0201 6-- axes
ware: Series 90
A
0 and
9
0
A
3
A20B--3300--0120 4-- axes
9
0
A
3
A20B--3300--0121 2-- axes
A17B--3300--0300 6-- axes Applicable servo soft-
ware: Series 90A7
(2) CPU card A20B--3300--0050 CNC control
A20B--3300--0170
(3) DRAM module A20B--3900 --0040 CNC system RAM 12M
A20B--3900--0041 8M
A20B--3900--0042 4M
A20B--3900--0130 12M CPU card: For
A
2
0
B
3
3
0
0
0
1
7
0
A20B--3900--0131 8M
A
20B--3300--0170
A20B--3900--0132 4M
D Card and DIMM module
locations
Previous page
Next page
