6. INTERFACE BETWEEN CNC AND PMC

B--63005EN/02

460

This function is used for displaying the divided screen. It can display

max. six division.

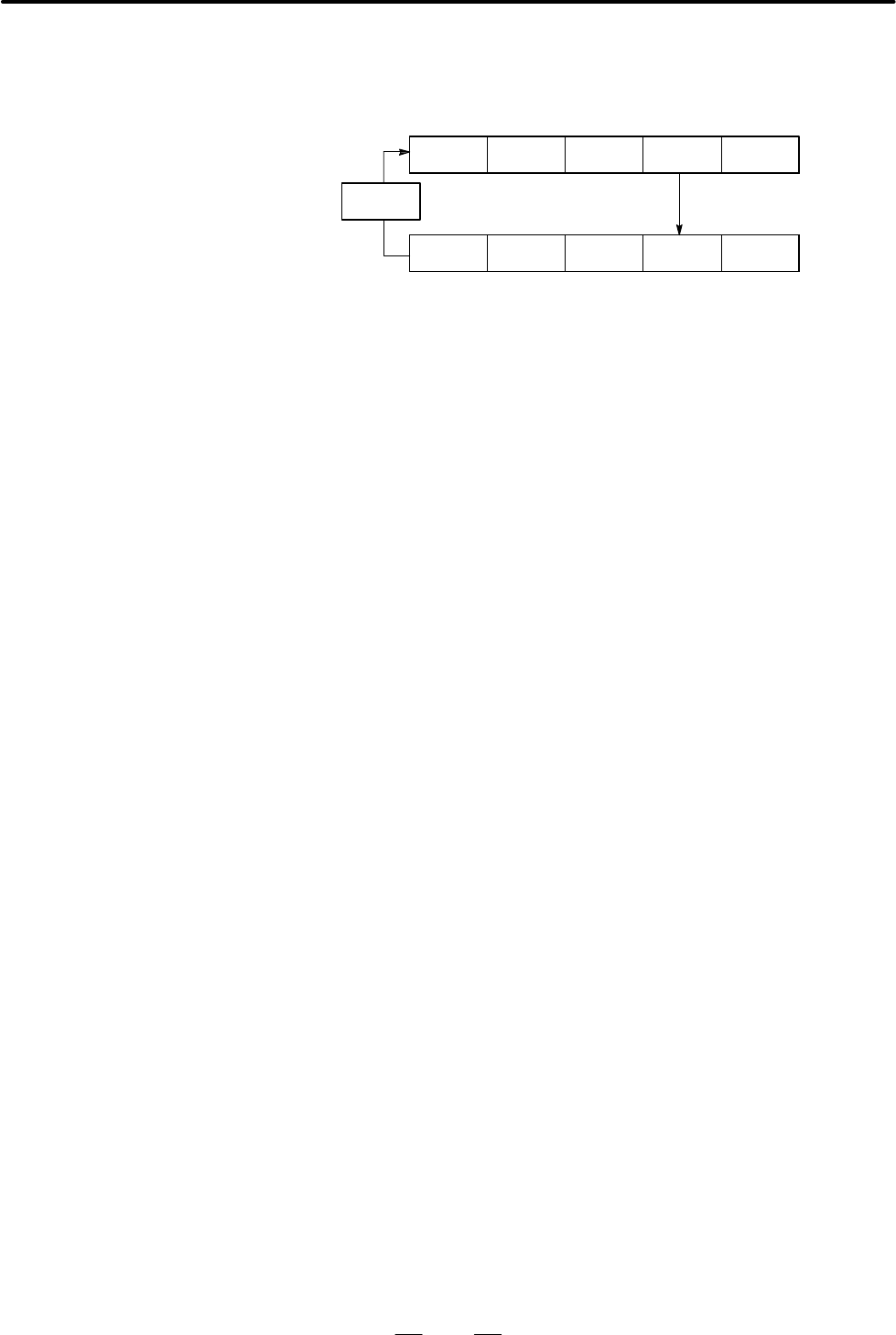

For this operation, depress [WINDOW] soft key to bring the following

menu.

SEARCH ADRESS TRIGER WINDOW

DIVIDE CANCEL DELETE SELECT WIDTH

RET

The function of the soft key [WINDOW] is as follows:

(1)[DIVIDE] : The screen will be divided.

The dividing display of ladder diagram can be

displayed for the designated NET number.

(NET number+[DIVIDE])

(2)[CANCEL] : The dividing display of ladder diagram display ends.

(The screen returns to normal display.)

(3)[DELETE] : The screen division subject to operation is ended.

(4)[SELECT] : Change the screen subject to division operation.

The screen in operation is displayed by “purple” title

line, another screen is displayed by “blue” title line.

In monochrome, the screen is displayed by changing

brightness.

(5)[WIDTH] : Change the width of division by using [EXPAND] or

[SHRINK] soft key.

(6) [EXPAND] : The divided screen is expanded.

(7)[SHRINK] : The divided screen is shrank.

When bit 1 in the keep relay K17 (K900 for SB6) is 1, this function is

available and [ONLEDT] soft key is displayed.

When the ladder program is executing, a part of the ladder program can

be changed.

S Change the type of contact (A contact, B contact)

S Change address of contact and coil.

S Change address parameter of functional instruction.

This function don’t change the size.

(Cannot be Addition, deletion and chanegable data size)

When bit 3 in the keep relay K18 (K901 for SB6) is 1, this program is

automatically transferred to backup RAM after on--line edit.

When bit 3 in the keep relay K18 (K901 for SB6)is 0, transfer to backup

RAM with COPY function of I/O screen. If power is off without this

operation, edited data is lost.
