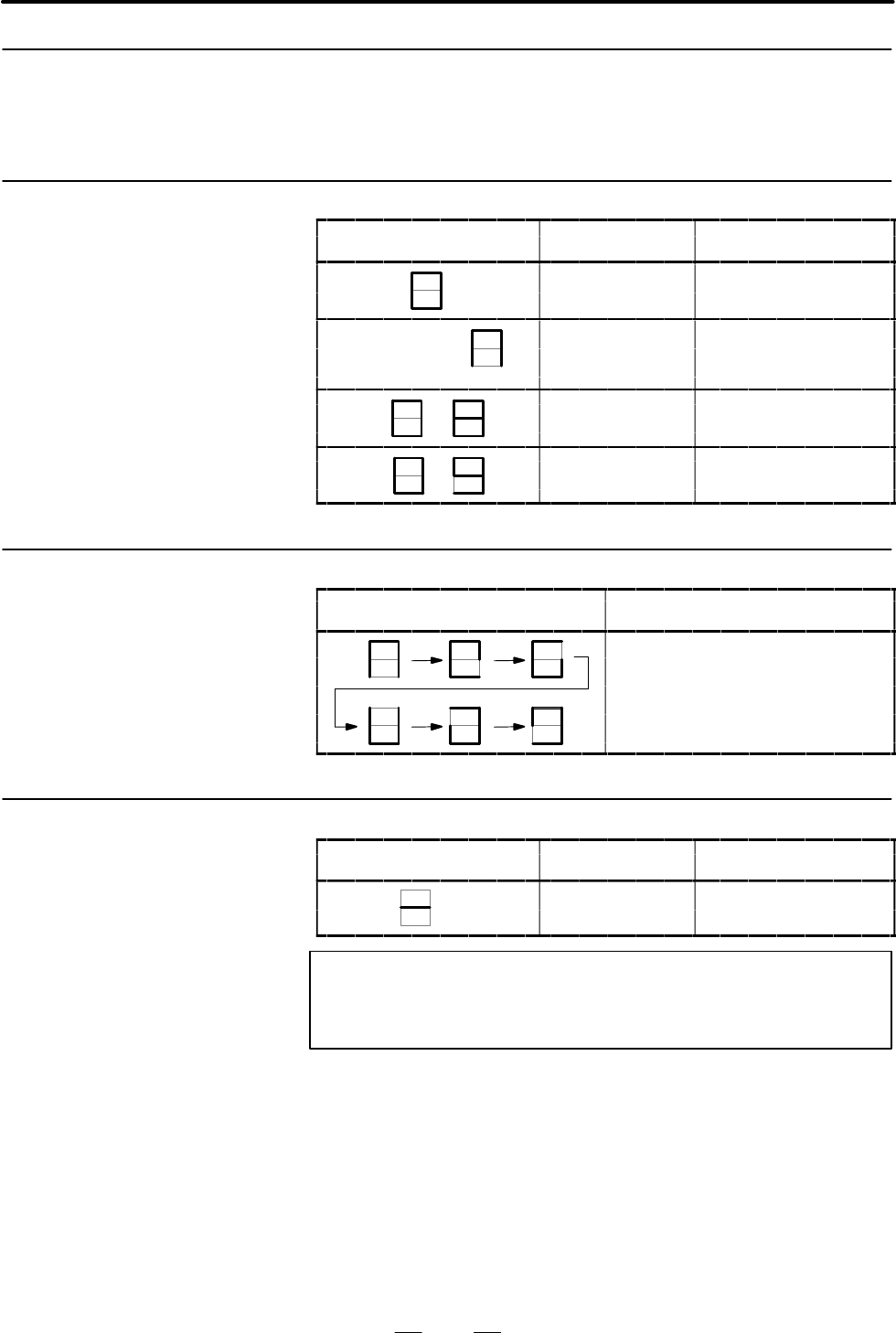

E. LED DISPLAY AND MAINTENANCE

OF STAND--ALONE TYPE UNIT

B--63005EN/02

APPENDIX

758

Number displayed on LED Blink/not blink Description

Not blink Automatic operation is

paused, stopped, or reset.

(Rotation o

character )

Not blink Automatic operation start

signal

When STL (F000#5) = 1

Number ( ~ )

Blink System alarm status

Number ( ~ )

Not blink Status change at power--on

LED indication Description

Automatic operation start signal

When STL (F000#5) = 1

Number displayed on LED Blink/not blink Description

Not blink The push switch has been

pressed normally.

NOTE

If the software edition is old, the above indication may not

appear. (See Section E.4, “Supported Editions.”)

E.3.3

Seven--Segment LED

Display

E.3.3.1

NC statu s display

E.3.3.2

LED display during

automatic operation

E.3.3.3

LED display when the

push switch is pressed
