3. STAND--ALONE TYPE i SERIES HARDWARE
B--63005EN/02
354
WARNING
Before starting the replacement of the fuse, remove the
cause of the fuse burn --out.
Accord ingly, the replacement should be performed by a
person fully trained in maintenance and safety. If the
cabinet is opened to replace the fuse, take extreme care not
to touch any high--voltage area (marked with and
covered by a shock prevention cover). If the a rea is
uncovered, direct contact with this area will result in an
electric shock.
LCD unit (rear face)
Fuse
D Information of the fuse
Ordering information: A02B--0265--K101
Rating: 2.0 A
Individual information: A60L--0001--0290#LM20C
3.11
REPLACING THE
FUSE OF THE LCD
UNIT

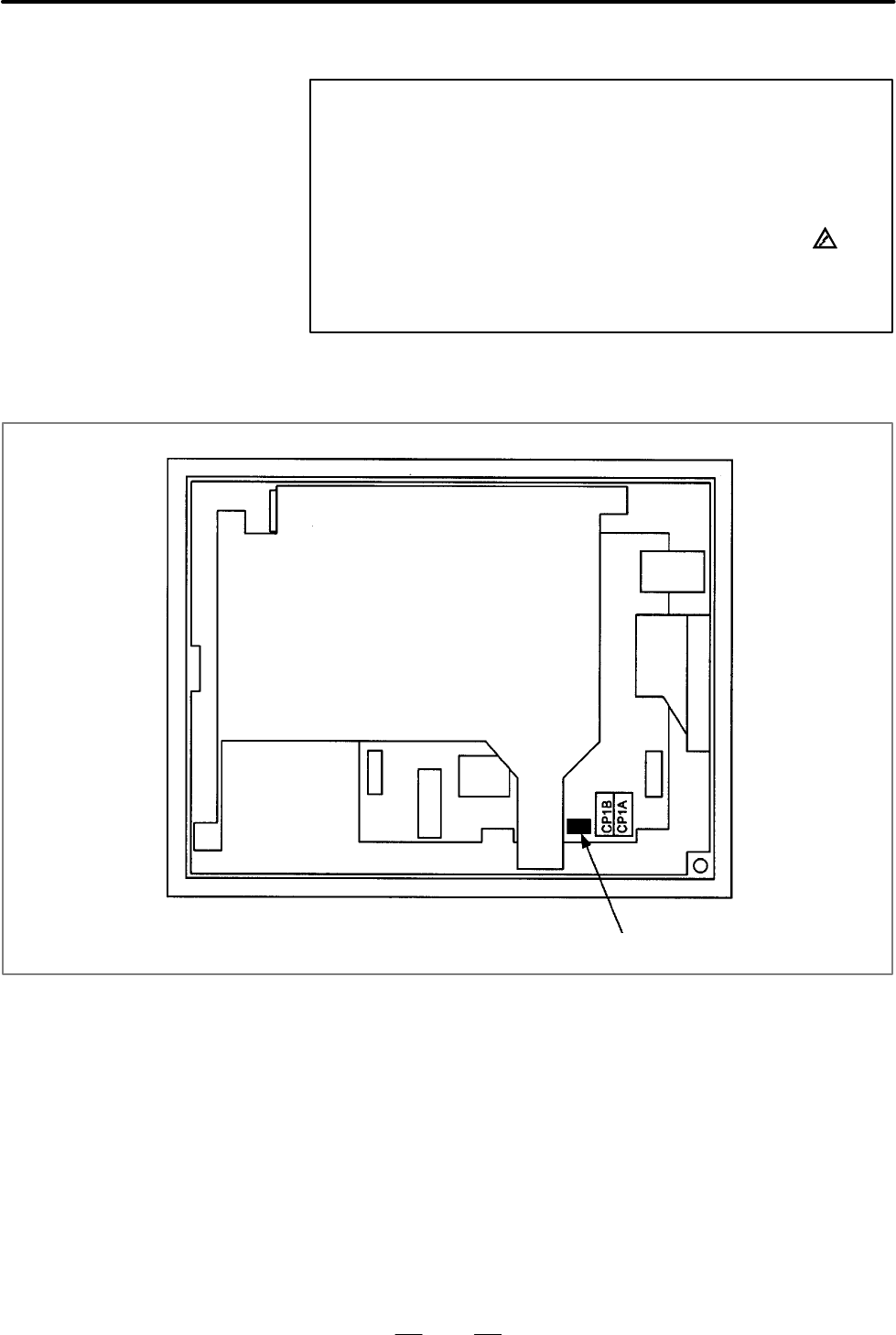

D Mounting position of the
fuse
