1. Fanuc
  2. Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A

Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A Maintenance manual Page 244

Maintenance manual
B--63005EN/02
2. LCD--MOUNTED TYPE i SERIES HARDWARE
219

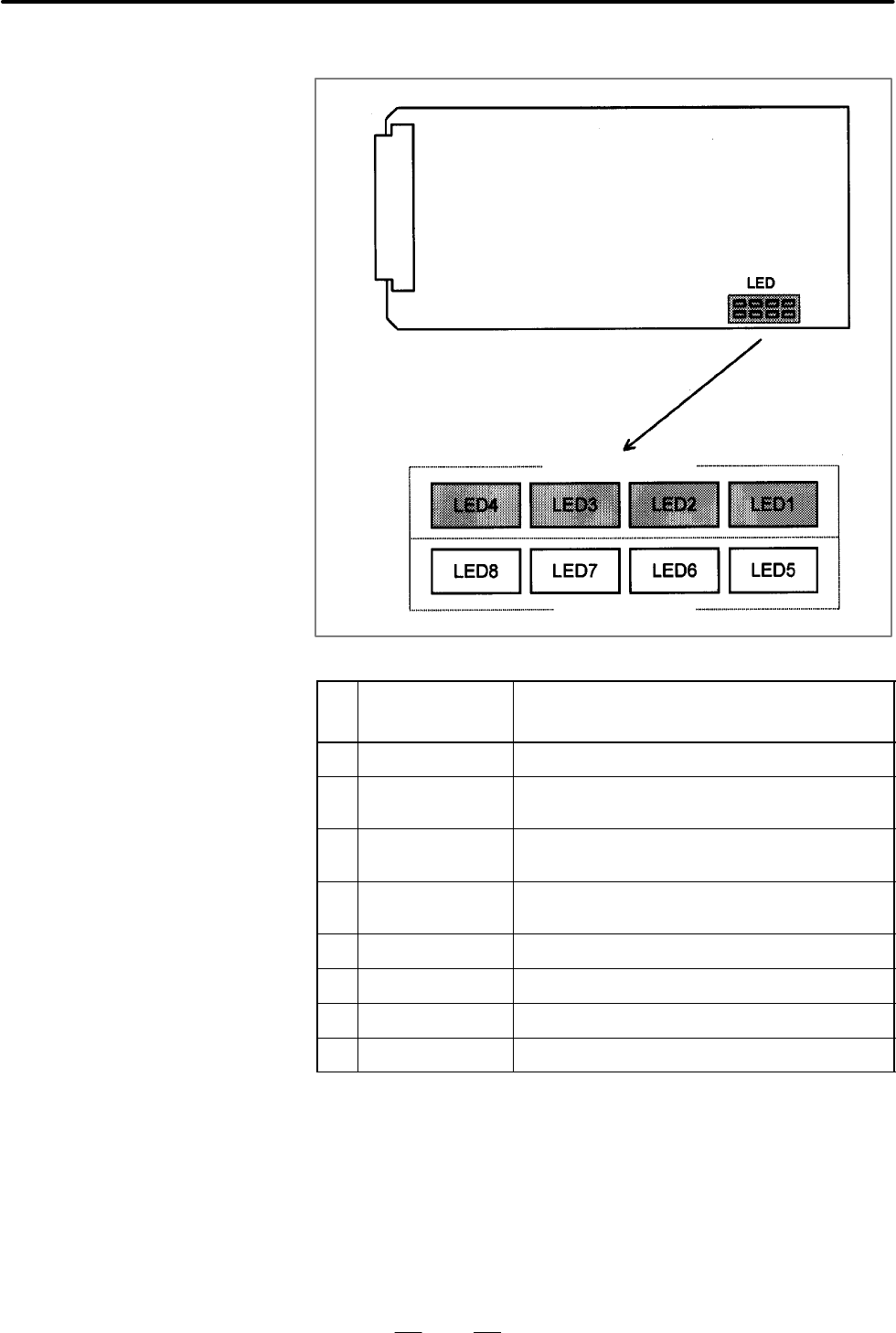

Status (green)
Alarm (red)
(1)Changes in status LED (green) indication at power--on time
No.
Status LED
(LED4 to LED1)
Status
1 jjjj Power is not supplied.
2 JJJJ State immediately after power is switched on; the RISC
CPU has not started.
3 Jjjj Local DRAM being tested; if an error is detected in the
test, the LEDs keep this indication.
4 jJjj System area in shared DRAM being tested; if an error is
detected in the test, the LEDs keep this indication.
5 jjjJ Waiting for a main CPU request. (1)
6 JjjJ Waiting for a main CPU request. (2)
7 jJjJ Waiting for a main CPU request. (3)
8 jjJJ Waiting for a main CPU request. (4)
J:On j:Off
D LED indication
