1. Fanuc
  2. Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A

Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A Maintenance manual Page 322

Maintenance manual
B--63005EN/02
3. STAND--ALONE TYPE i SERIES HARDWARE
297

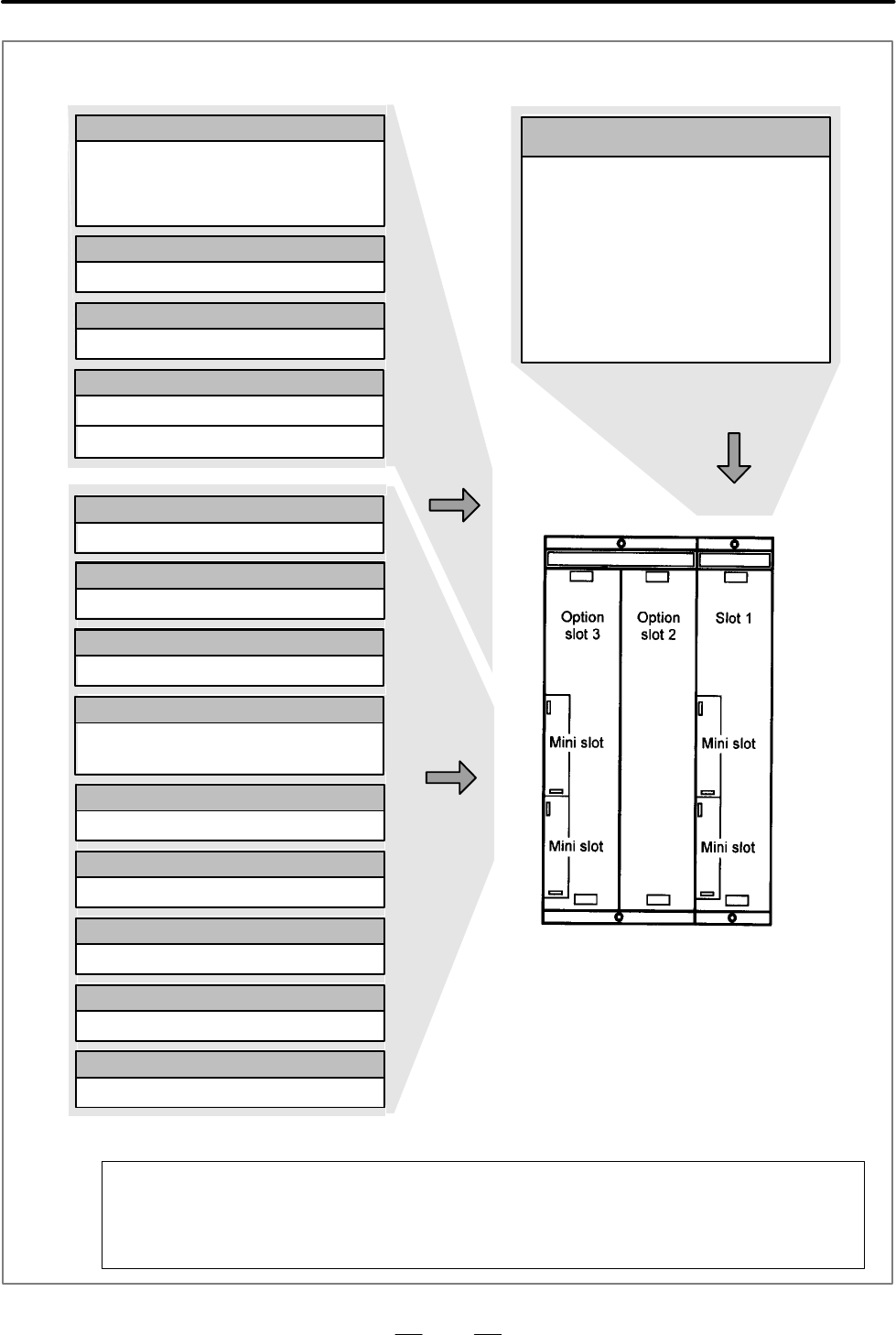

The mounting position of an option board depends on the board type, as shown below:
The option board marked with *1 fits into option slot 2.
The option board marked with *2 fits into option slot 3.
The option board marked with *3 fits into a mini slot (of any slot).
RISC board (M series only)(*1)
High--precision contour control function
Sub--CPU board(*2)
Sub--CPU for two--path control
2--axis to 8--axis control
Spindle interface
Analog output
Data server board(*1)
Data server function (ATA card)
RISC + data server board (M series only)(*1)
High--precision contour control function
Data server function (ATA card)
Serial communication board(*3)
Remote buffer/DNC1/DNC2
Ethernet board(*3)
Ethernet interface
PMC C board(*3)
C function for PMC
CAP--II board (T series only)(*3)
Graphic conversation
HSSB interface board(*3)
High--speed serial bus interface
(160i basic option)
I/O Link--II board(*3)
I/O Link--II interface
DeviceNet interface board(*3)
DeviceNet interface
PROFIBUS board(*3)
PROFIBUS function
FL--net board(*3)
FL--net function
Main CPU board
CPU for controlling CNC
Power
2--axis to 8--axis control
Spindle interface
I/O Link
PMC--SB5/SB6
Analog output/high--speed DI
RS--232C x 2
Memory card interface
Display interface
Mounted in slot 1
Basic system
Option
Mini--slot
options
1--slot cabinet or
3--slot cabinet
