1. Fanuc
  2. Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A

Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A Maintenance manual Page 396

Maintenance manual
B--63005EN/02
4. MATTERS COMMON TO BOTH LCD--MOUNTED TYPE
AND STAND--ALONE TYPE i SERIES (HARDWARE)
371
D When the white protection sheet is removed, the new protection sheet
is adhesive on its periphery. Attach the new protection sheet to the
front of the LCD screen. At this time, be careful not to allow dust and
dirt between the protection sheet and the LCD screen.
D Peel off the protection film attached to the front of the protection sheet.
The ordering information of a protection sheet for replacement is as
follows:
For the 10.4 LCD: A02B--0236--K110
For the 12.1 LCD: A02B--0236--K118

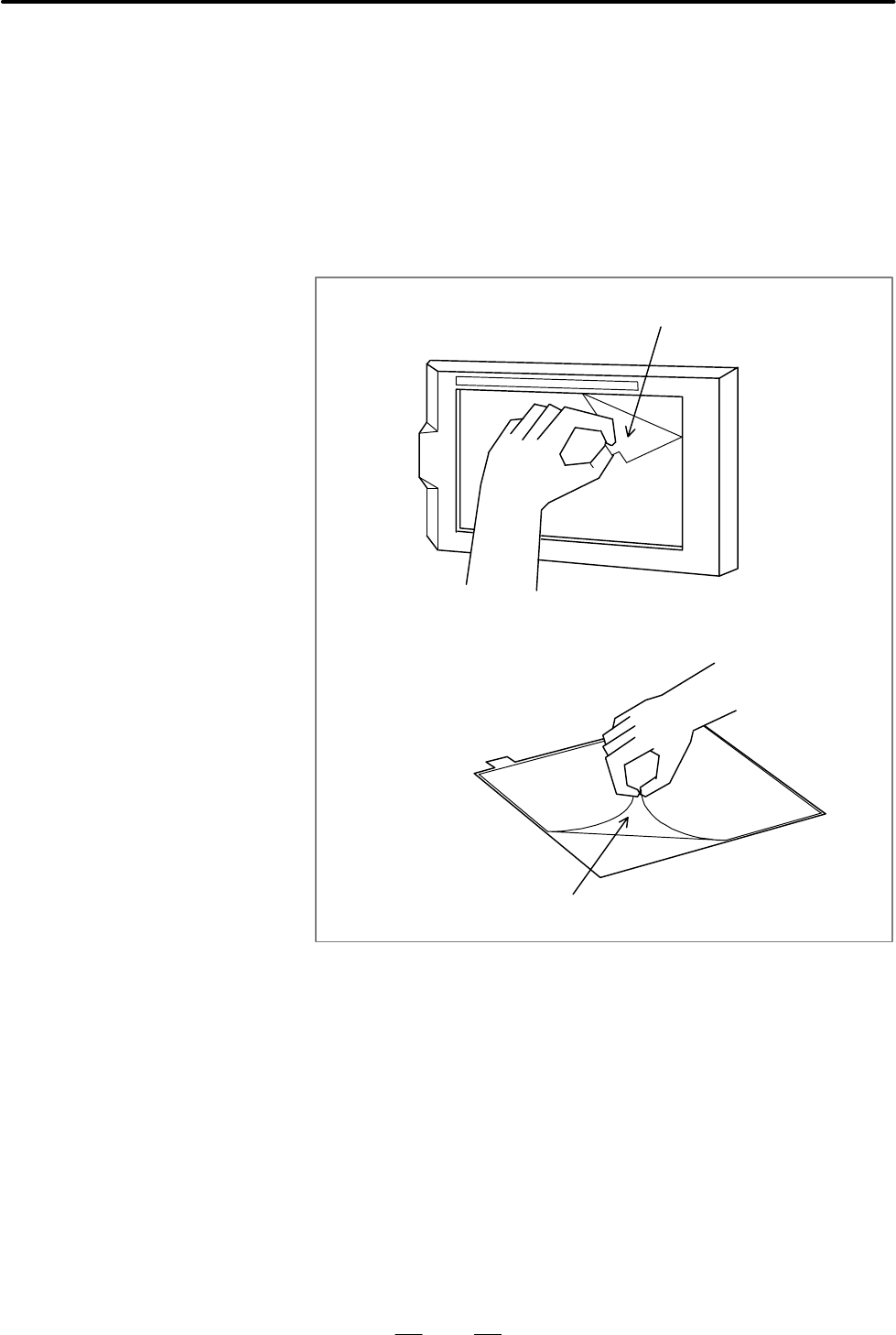

Old protection sheet
White protection sheet on the back side of a new protection sheet
Touch panel compensation is required:
1 When the LCD unit is replaced
2 When the touch panel is replaced
3 When the touch panel control printed circuit board is replaced
4 Memory is all cleared.
Touch panel
compensation
D Condition that requires
compensation
