B--63005EN/02

2. LCD--MOUNTED TYPE i SERIES HARDWARE

279

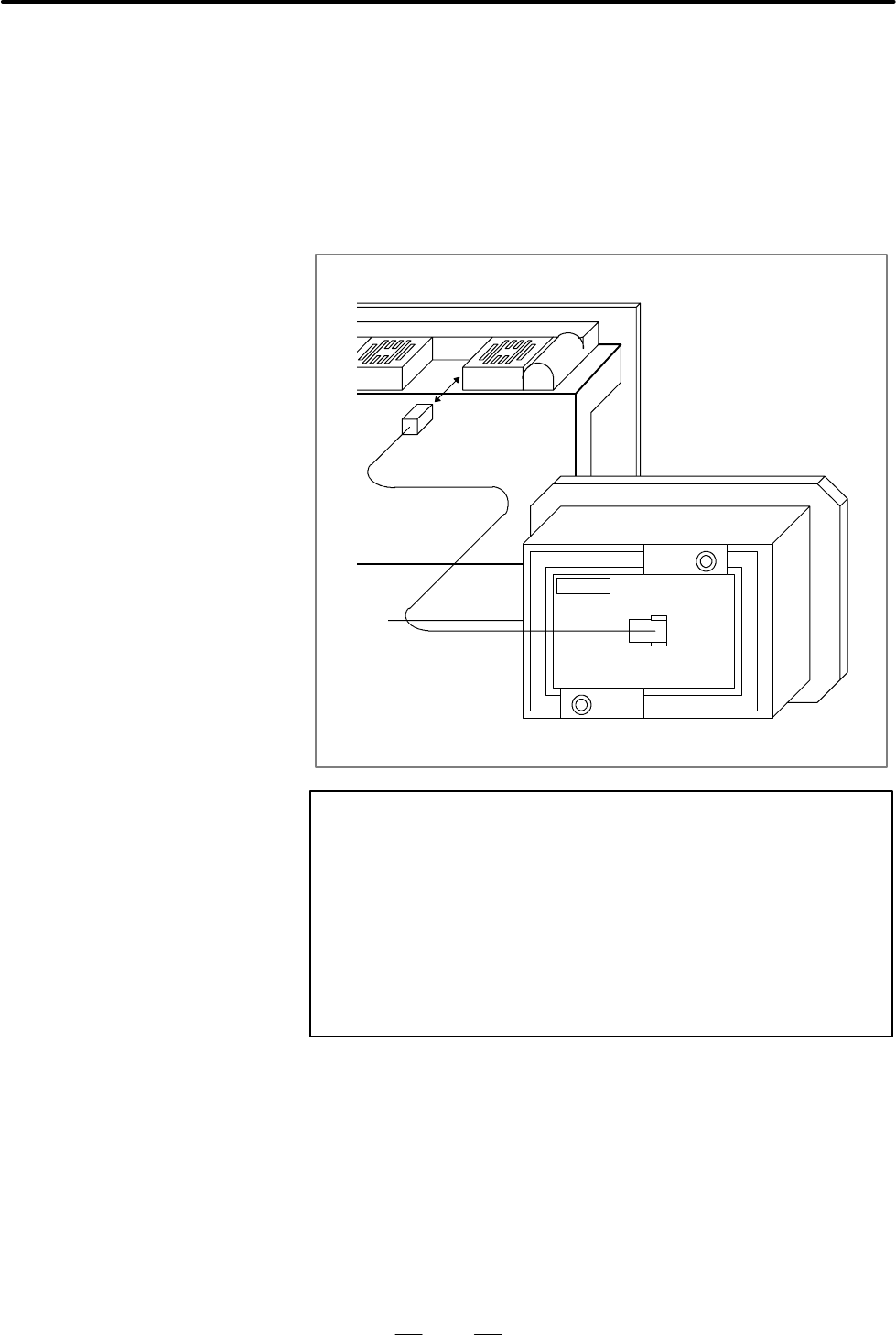

Power from the external batteries is supplied through the connector to

which the lithium battery is connected.

The lithium battery, provided as standard, can be replaced with external

batteries in the battery case (A02B--0236--C281) according to the battery

replacement procedure described above.

CAUTION

1 Install the battery case (A02B-- 0236--C281) in a location

where the batteries can be replaced even when the power

to the control unit is on.

2 The battery cable connector is attached to the control unit

by means of a simple lock system. To prevent the connector

from being disconnected due to the weight of the cable or

tension within the cable, fix the cable section within 50 cm

of the connector.

When using commercial

alkaline d ry cells (size D)

D Method of connection
