2. LCD--MOUNTED TYPE i SERIES HARDWARE

B--63005EN/02

232

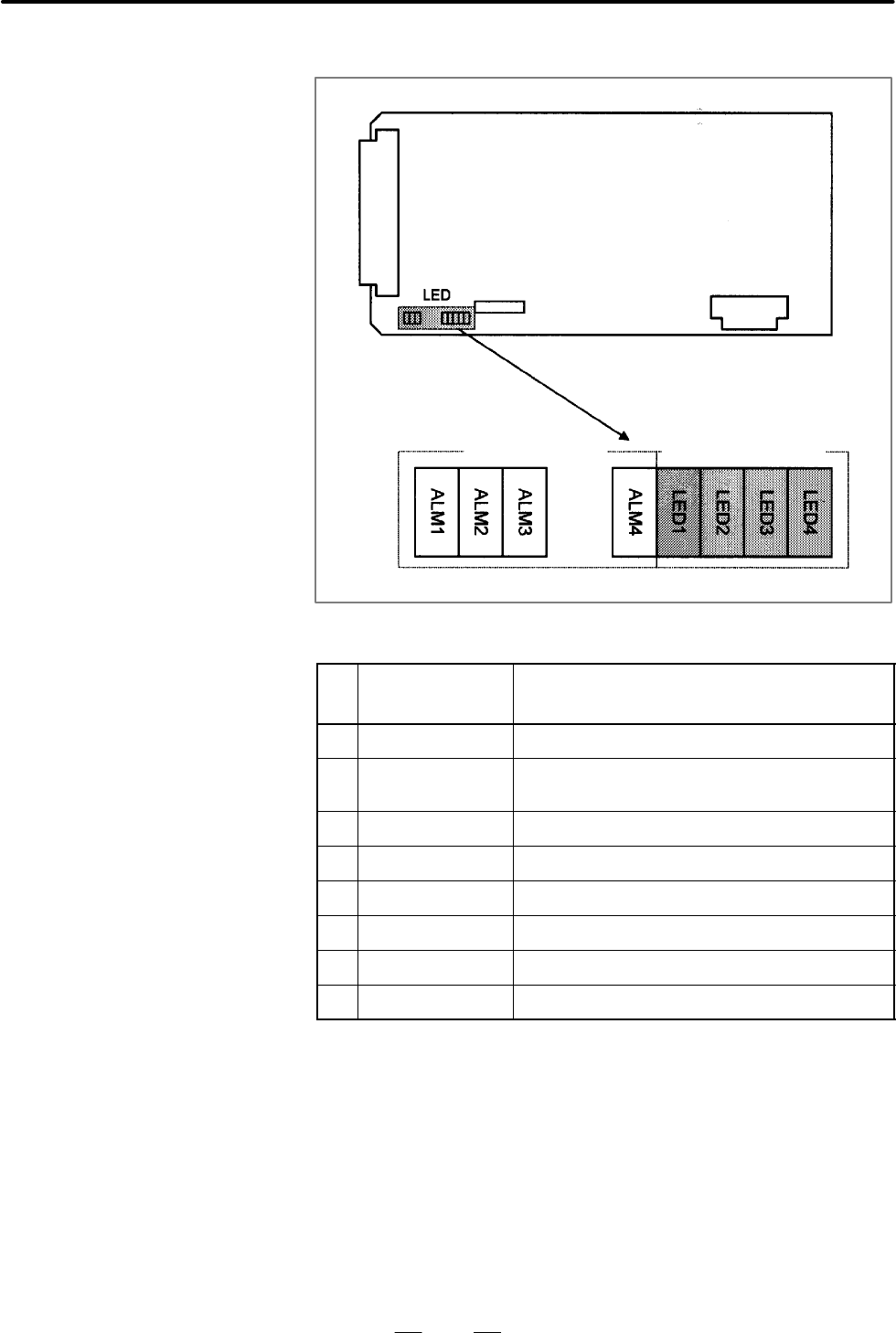

Status (green)Alarm (red)

(1)Changes in status LED (green) indication at power--on time

No.

Status LED

(LED1 to 4)

Status

1 jjjj Power is not supplied.

2 JJJJ Initial status immediately after power is switched on; the

loader CPU has not started.

3 JJJj RAM initialization

4 JJjJ Waiting for system ID to be set up.

5 JJjj Waiting for software initialization to be completed No. 1

6 JjJJ Waiting for software initialization to be completed No. 2

7 jJJj Waiting for digital servo to be initialized.

9 jjjJ Initialization completed, and usual operation under way .

J:On j:Off

D LED indication
