2. LCD--MOUNTED TYPE i SERIES HARDWARE

B--63005EN/02

234

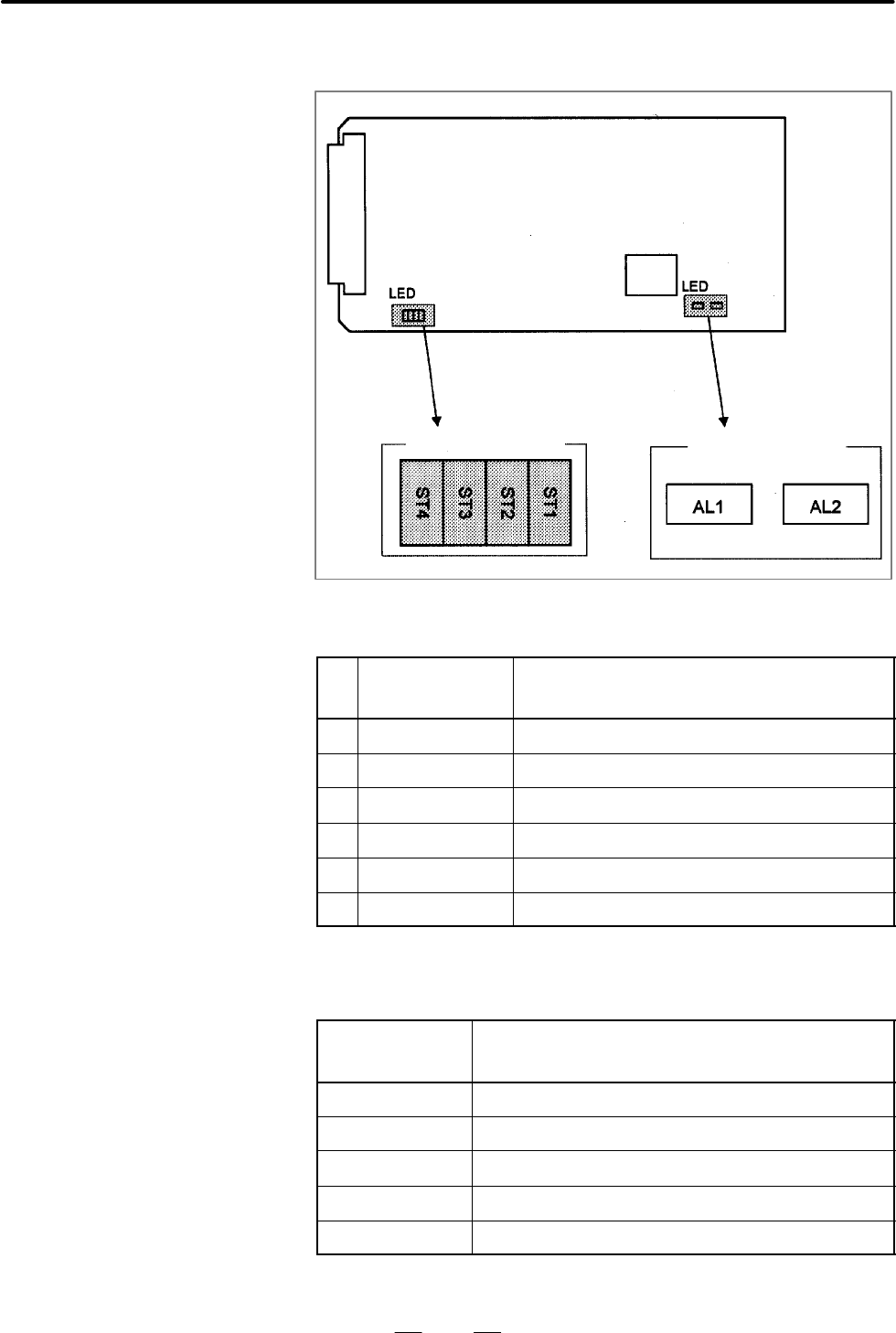

Status (green) Alarm (red)

(1)Changes in status LED (green) indication at power--on time

No.

Status LED

(ST4 to 1)

Status

1 jjjj Power is not supplied.

2 JJJJ Initial status immediately after power is switched on.

3 JJJj HSSB board being initialized.

4 JJjJ Waiting for PC boot to be executed.

5 JJjj CNC screen being displayed on the PC.

6 Jjjj Initialization completed, and usual operation under way .

J:On j:Off

(2)Status LED (PC status, green) indication at error occurrence

Status LED

(ST4 to 1)

Status

jJJj A thermal error has occurred at the intelligent terminal.

jJjJ HSSB communication was discontinued.

jJjj Parity alarm in NC/PC common RAM.

jjJJ An HSSB communication error has occurred.

jjJj A battery alarm has occurred at the intelligent terminal.

J:On j:Off

D LED indication
