9.TROUBLESHOOTING

621

This alarm is issued if a serial spindle amplifier (SPM) does not enter the

normal startup state when the CNC is turned on.

This alarm is not issued once the CNC system including the spindle

amplifiers has started up normally. It is issued if a fault occurs in the

power--on process.

The probable causes include the following:

D Contact failure, wiring error, or connection error of the connection

cable

D The CNC is turned on when a spindle amplifier is in the alarm state.

D Parameter setting error

D Defective printed circuit board on the CNC

D Detective spindle amplifier

Up to four serial spindle amplifiers (SPMs) can be connected per path.

Note, however, the number of amplifiers that can be connected differs

depending on the model, number of paths, and configuration. Refer to the

Connection Manual (Hardware).

Motherboard

(Main CPU board)

Sub--CPU board

PSM (first)

PSM (second)

9.21

ALARM 750

(SPINDLE SERIAL

LINK

STARTUP FAILURE)

Causes and actions

D Connection

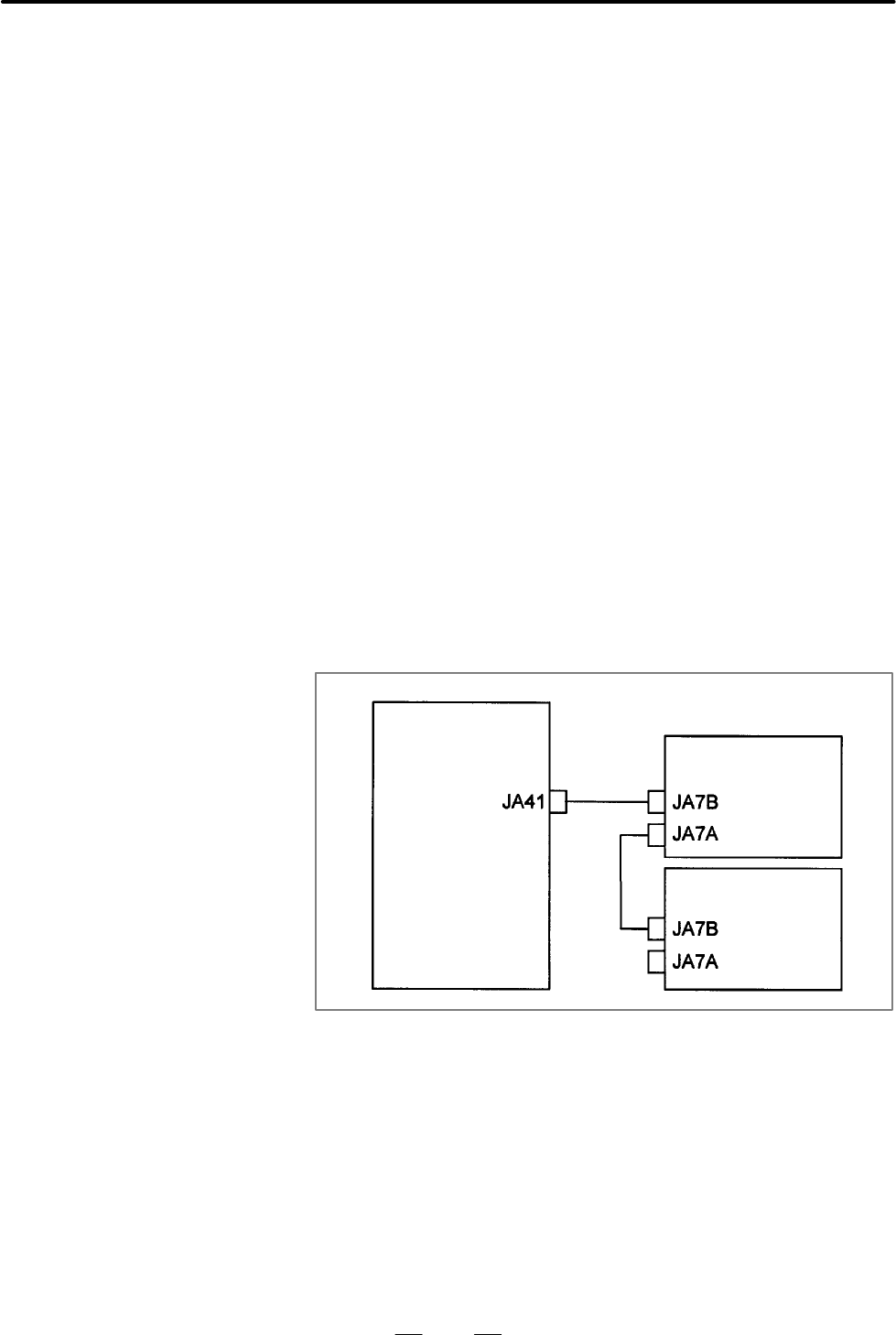

[Diagram of connection

of up to two amplifiers

per path]
