6. INTERFACE BETWEEN CNC AND PMC

B--63005EN/02

464

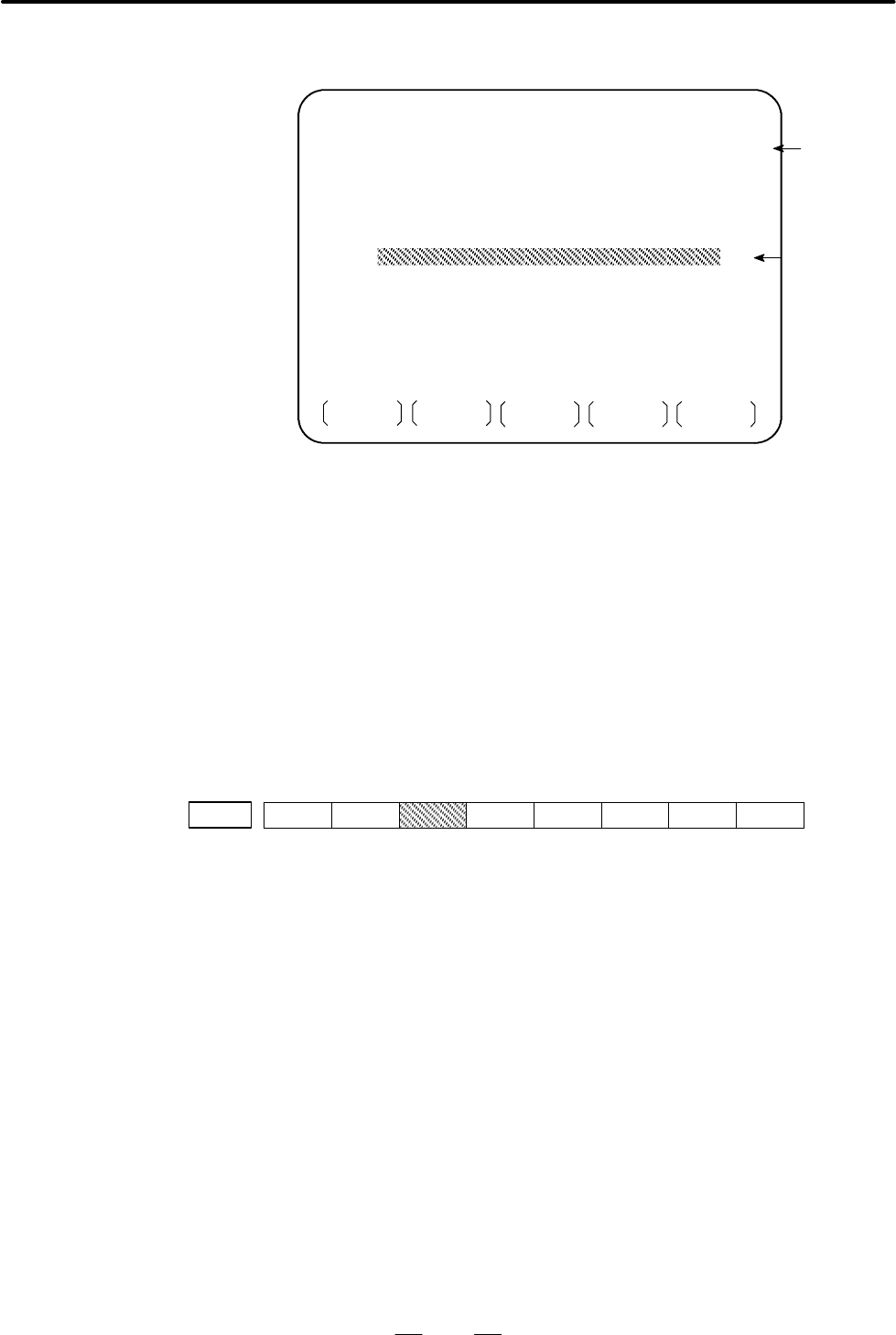

2 Trace memory contents display screen

PMC SIGNAL TRACE

TRCPRM

MONIT RUN

Trace

address

and mask

data(in pa-

rentheses)

1ST ADDRESS=X008(E1)

NO.

0000

0001

0002

0003

0004

0005

0006

0007

0008

76543210

........

I*******

II******

*I******

........

2ND ADDRESS=G000(FF)

76543210

........

********

........

STOP

10LCD/14CRT is dis-

played by 1 and 0.

Latest status

Imark:1

*mark:0

a. Soft key [TRCPRM]:Return to the trace parameter setting screen

(screen of previous page)

b. Soft key [EXEC]: Starts tracing.

Trace memory is cleared and each time a

specified signal changes, its status is recorded.

Trace memory is 256 bytes and if tracing is

executed 128 times by 2--byte tracing, tracing

is executed again from the head of memory.

c. Soft key [STOP]: Ends the tracing.

*The tracing parameters are held even if the power is turned off.

#7 #6 #5 #4 #3 #2 #1 #0

K017

(K900 for SB6)

#5 0 : Tracing starts by [EXEC].

1 : Tracing starts automatically after power on
