6. INTERFACE BETWEEN CNC AND PMC

B--63005EN/02

456

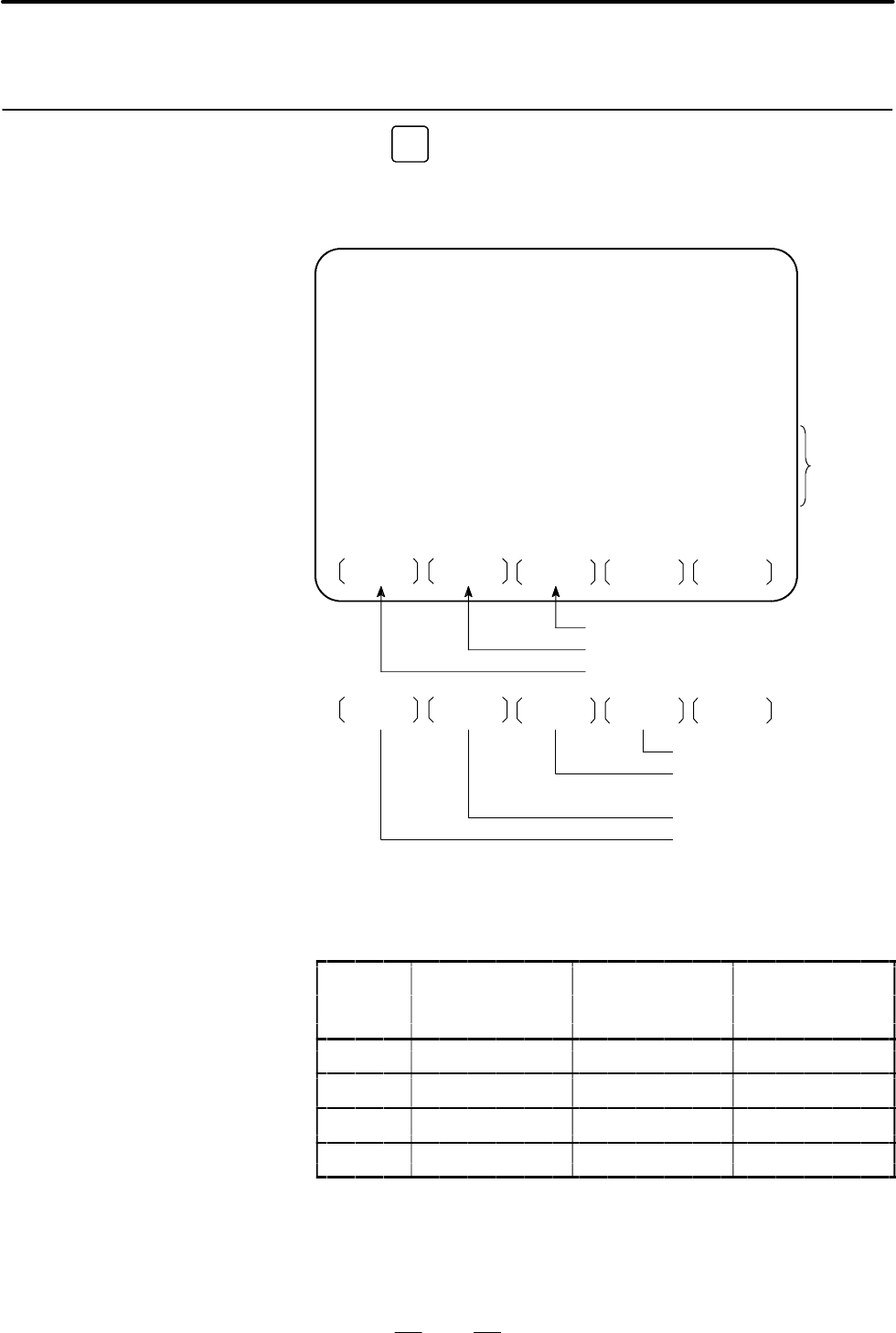

1. Press

SYSTEM

2. Press soft key [PMC], then PMC screen is displayed and the following

soft keys are displayed:

PMC CONTROL SYSTEM MENU MONIT RUN

SELECT ONE OF FOLLOWING SOFT KEYS

PMCLAD : DYNAMIC LADDER DISPLAY

PMCDGN DIAGNOSIS FUNCTION:

PMCPRM PARAMETER (T/C/K/D):

RUN/STOP RUN/STOP SEQUENCE PROGRAM:

EDIT EDIT SEQUENCE PROGRAM:

I/O I/O SEQUENCE PROGRAM:

SYSPRM SYSTEM PARAMETER:

PMCLAD PMCDGN PMCPRM

When

built--in

program-

mer is run-

ning.

System parameter screen

Status display of PMC I/O signal

Dynamic display of sequence program

STOP EDIT I/O SYSPRM

System parameter screen

Input/output of sequence pro-

gram

Editing sequence program

RUN/STOP of sequence

MONIT : PMC MONITOR

MONIT

The no. of menus to be displayed changes depending on presence/

absence of built--in programmer.

PMC--SB5/SB6

(Without memory

card for editing)

PMC--SB5/SB6

(With memory

card for editing)

PMC--SB5/SB6

(With C language

board)

RUN/STOP f f f

EDIT ⌠ f f

I/O f f f

SYSPRM ⌠ f f

⌠ : Cannot be displayed nor used.

6.3

PMC SCREEN

6.3.1

Display Method
