B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 85 -

5.2.3 Peck Rigid Tapping Cycle (G84 or G74)

Tapping a deep hole in rigid tapping mode may be difficult due to

chips sticking to the tool or increased cutting resistance. In such

cases, the peck rigid tapping cycle is useful.

In this cycle, cutting is performed several times until the bottom of the

hole is reached. Two peck tapping cycles are available:

High-speed peck tapping cycle and standard peck tapping cycle.

These cycles are selected using the PCP bit (bit 5) of parameter 5200.

Format

G84 (or G74) X_ Y_ Z_ R_ P_ Q_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole and

the position of the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of the hole and at point R when

a return is made

Q_ : Depth of cut for each cutting feed

F_ : The cutting feedrate

K_ : Number of repeats (if required)

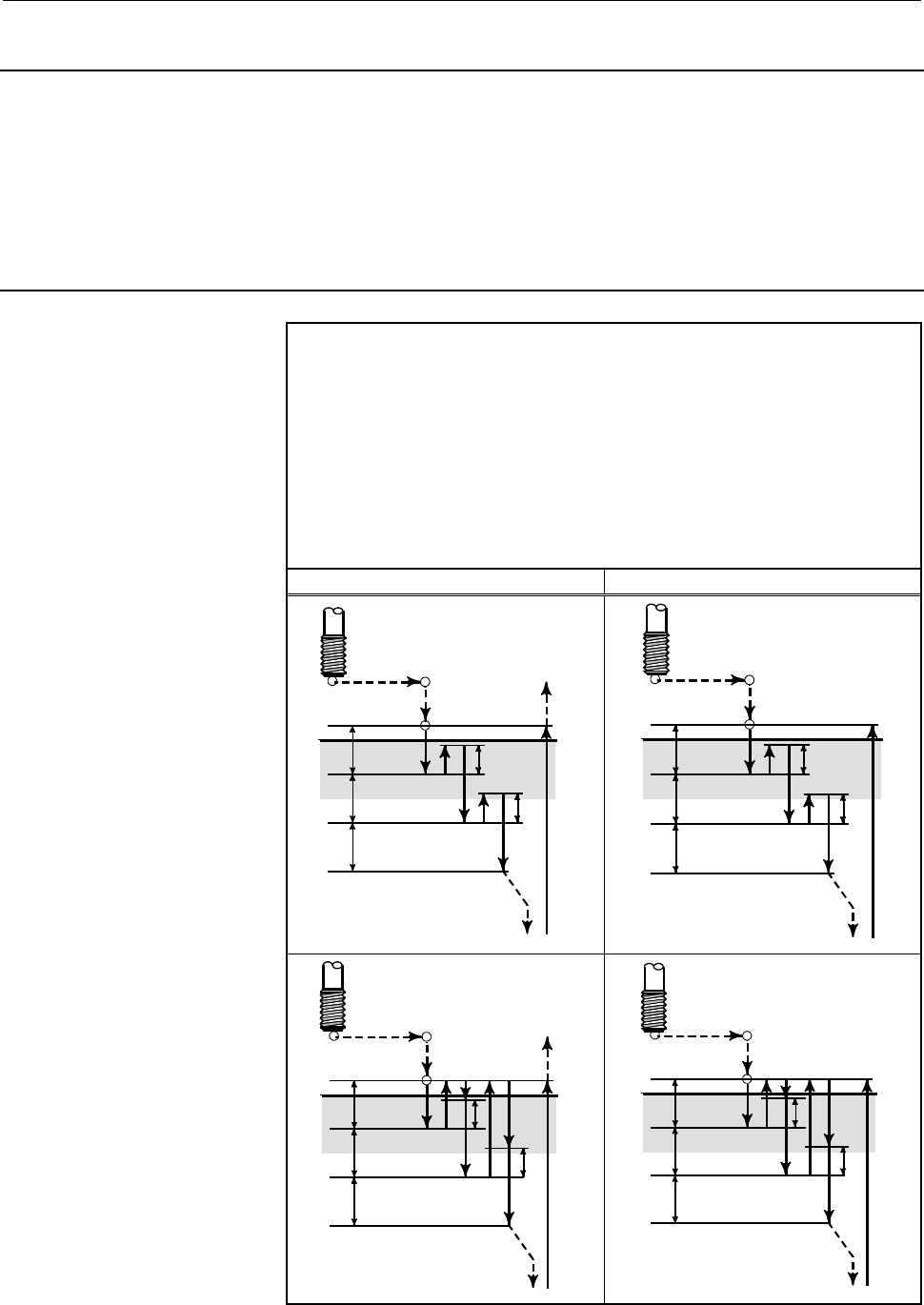

G84, G74 (G98) G84, G74 (G99)

Initial level

Point Z

Point R

<1>

<2>

Point R level

d = retraction distance

Point Z

Point R

<1>

<2>

Point R level

Initial level

Point Z

Point R

<1>

<2>

Point R level

‡

d = cutting start distance

Point Z

Point R

<1>

<2>

Point R level

‡

• High-speed peck tapping cycle

(Parameter

PCP(No.5200#5)=0)

<1> The tool operates at a

normal cutting feedrate.

The normal time constant

is used.

<2> Retraction can be

overridden.

The retraction time

constant is used.

• Peck tapping cycle (Parameter

PCP(No.5200#5)=1)

<1> The tool operates at a

normal cutting feedrate.

The normal time constant is

used.

<2> Retraction can be

overridden.

The retraction time constant

is used.

<3> Retraction can be

overridden.

The normal time constant is

used.
