B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 47 -

5.1.3 Fine Boring Cycle (G76)

The fine boring cycle bores a hole precisely. When the bottom of the

hole has been reached, the spindle stops, and the tool is moved away

from the machined surface of the workpiece and retracted.

Format

G76 X_ Y_ Z_ R_ Q_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

Q_ : Shift amount at the bottom of a hole

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

K_ : Number of repeats (if required)

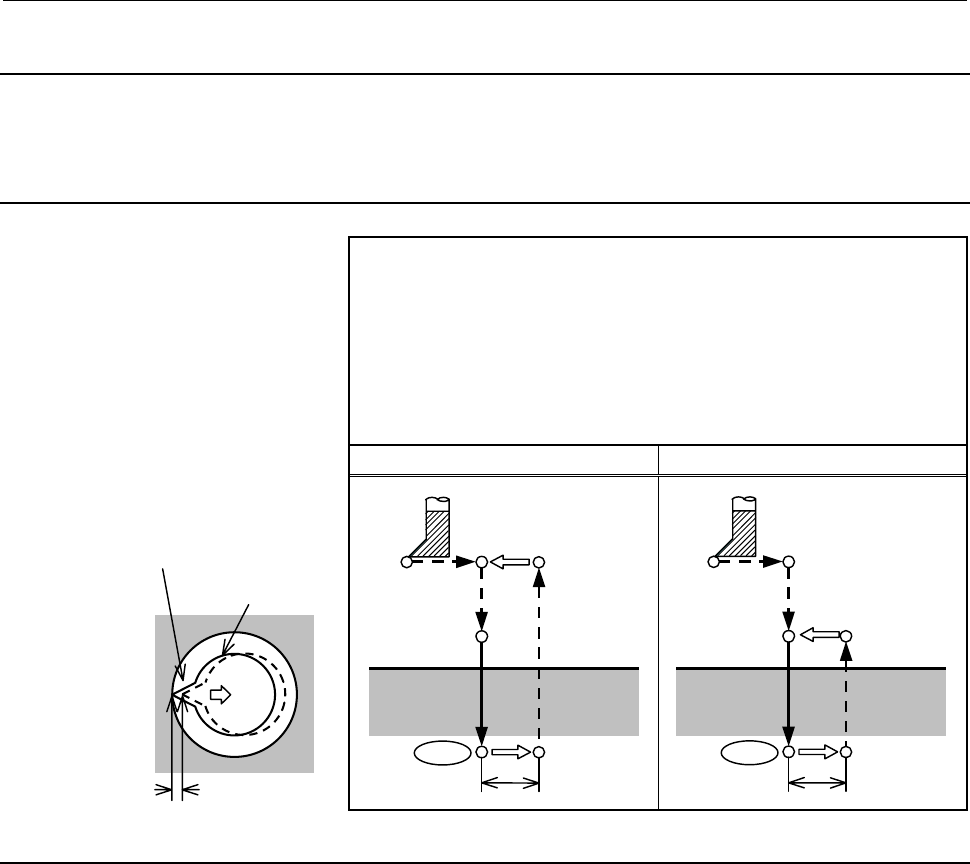

G76 (G98) G76 (G99)

Spindle CW

Initial level

Point R

Point Z

OSS

Spindle CW

Point R level

Point R

Point Z

OSS

Explanation

- Operations

When the bottom of the hole has been reached, the spindle is stopped

at the fixed rotation position, and the tool is moved in the direction

opposite to the tool nose and retracted. This ensures that the

machined surface is not damaged and enables precise and efficient

boring to be performed.

- Spindle rotation

Before specifying G76, use a Auxiliary function (M code) to rotate the

spindle.

- Auxiliary function

When the G76 command and an M code are specified in the same

block, the M code is executed at the time of the first positioning

operation. When K is used to specify the number of repeats, the M

code is executed for the first hole only; for the second and subsequent

holes, the M code is not executed.

Shift amount q

Spindle orientation

Tool
