B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 41 -

- Return point level G98/G99

When the tool reaches the bottom of a hole, the tool may be returned

to point R or to the initial level. These operations are specified with

G98 and G99. The following illustrates how the tool moves when

G98 or G99 is specified. Generally, G99 is used for the first drilling

operation and G98 is used for the last drilling operation.

The initial level does not change even when drilling is performed in

the G99 mode.

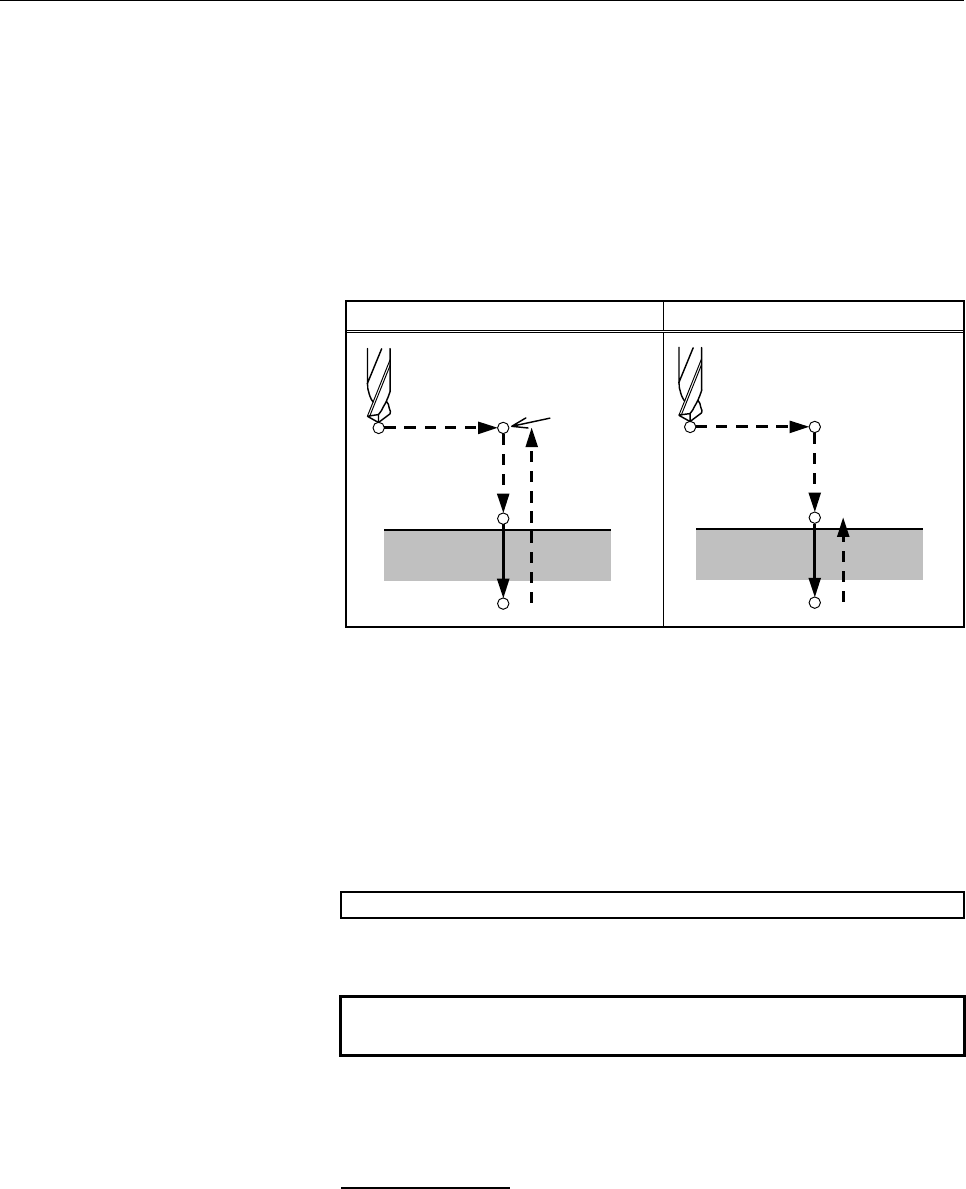

G98 (Return to initial level) G99 (Return to point R level)

Initial level

Point R level

Fig. 5.1 (c) Initial level and point R level

- Repeat

To repeat drilling for equally-spaced holes, specify the number of

repeats in K_.

K is effective only within the block where it is specified.

Specify the first hole position in incremental programming (G91).

If it is specified in absolute programming (G90), drilling is repeated at

the same position.

Number of repeats K The maximum command value = 9999

If K0 is specified, drilling data is stored, but drilling is not performed.

NOTE

For K, specify an integer of 0 or 1 to 9999.

- Cancel

To cancel a canned cycle, use G80 or a group 01 G code.

Group 01 G codes

G00 : Positioning (rapid traverse)

G01 : Linear interpolation

G02 : Circular interpolation or helical interpolation (CW)

G03 : Circular interpolation or helical interpolation (CCW)
