B-63944EN-2/02 APPENDIX A.PARAMETERS

- 293 -

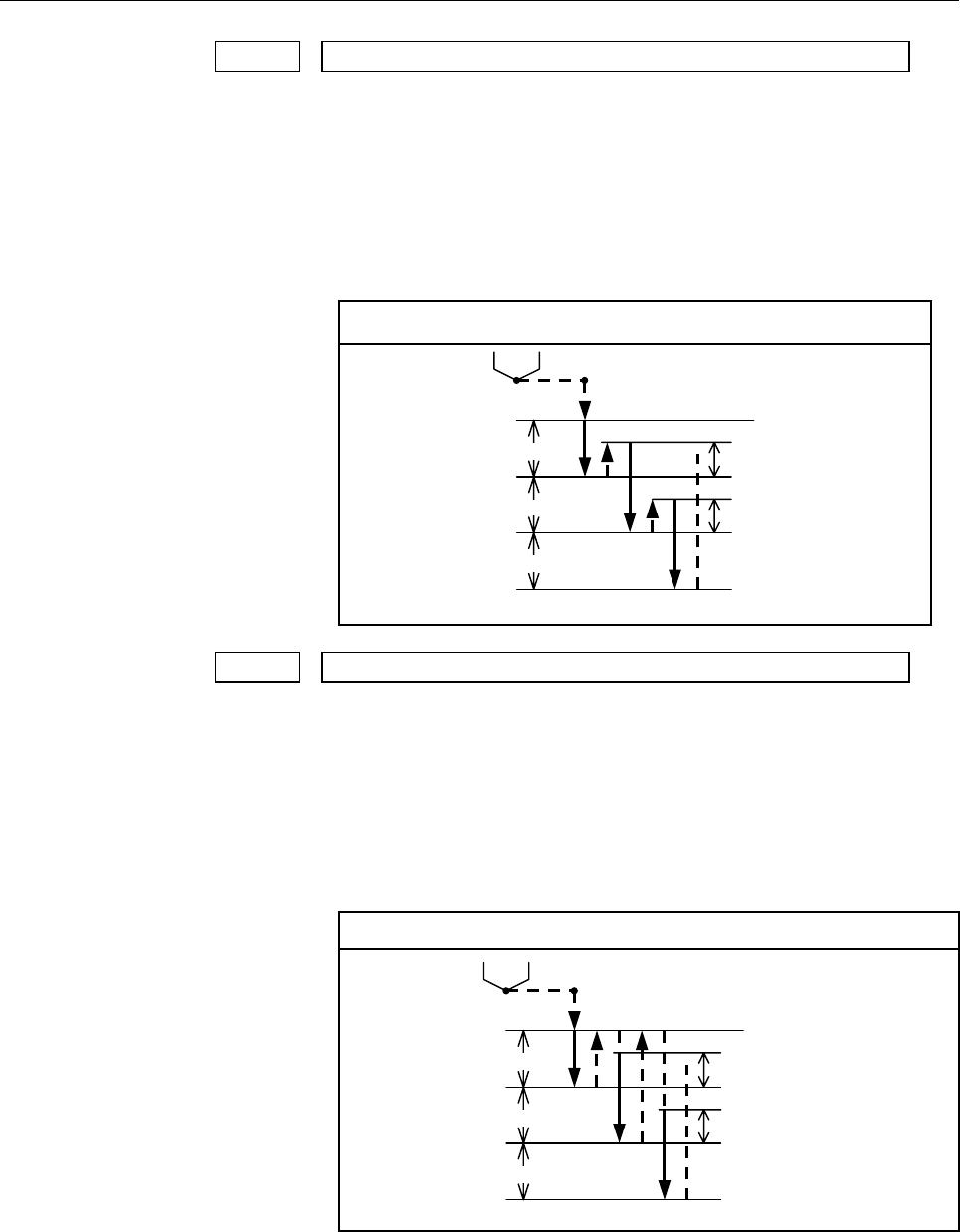

5114 Return value of high-speed peck drilling cycle

[Input type] Parameter input

[Data type] Real path

[Unit of data] mm, inch (input unit)

[Minimum unit of data] Depend on the increment system of the reference axis

[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting

table (A) )

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets the return value in high-speed peck drilling cycle.

G73 (M series)

G83 (T series, when the parameter RTR (No.5101#2) is set to 0)

5115 Clearance value in a peck drilling cycle

[Input type] Parameter input

[Data type] Real path

[Unit of data] mm, inch (input unit)

[Minimum unit of data] Depend on the increment system of the reference axis

[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting

table (A) )

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets a clearance value in a peck drilling cycle.

G83 (M series)

G83 (T series, when the parameter RTR (No.5101#2) is set to 1)

q : Depth of cut

d : Return value

R point

Z point

q : Depth of cut

d : Clearance value

R point

Z point
