5.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-2/02

- 64 -

5.1.10 Boring Cycle (G86)

This cycle is used to bore a hole.

Format

G86 X_ Y_ Z_ R_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

F_ : Cutting feed rate

K_ : Number of repeats (if required)

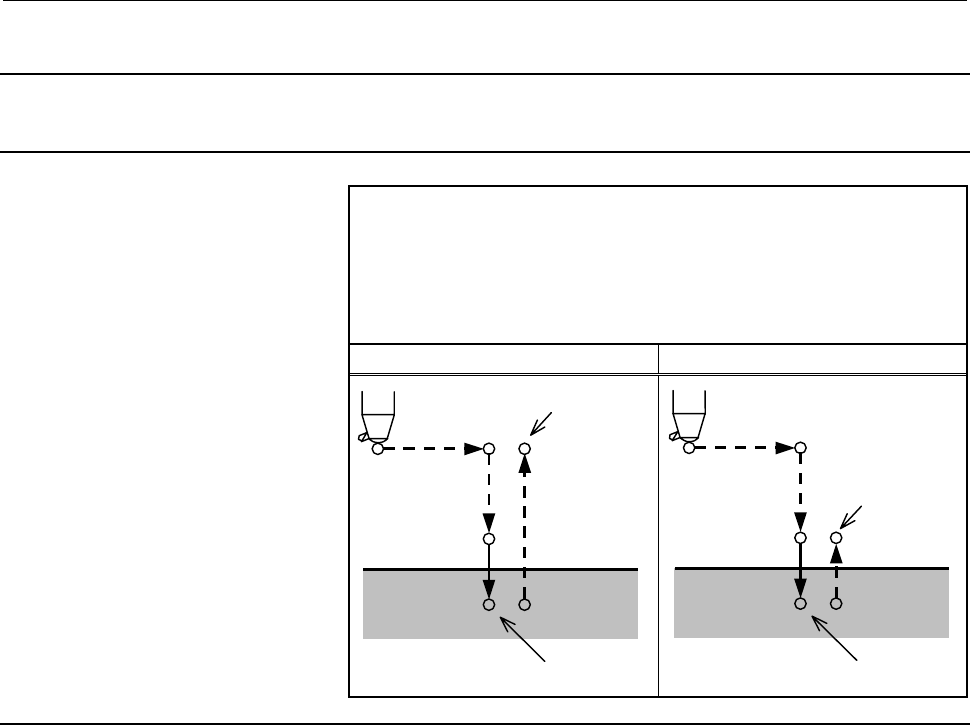

G86 (G98) G86 (G99)

Point R

Point Z

Initial level

Spindle stop

Spindle CW

Point R

Point Z

Point R level

Spindle stop

Spindle CW

Explanation

- Operations

After positioning along the X- and Y-axes, rapid traverse is performed

to point R.

Drilling is performed from point R to point Z.

When the spindle is stopped at the bottom of the hole, the tool is

retracted in rapid traverse.

- Spindle rotation

Before specifying G86, use an auxiliary function (M code) to rotate

the spindle.

If drilling is continuously performed with a small value specified for

the distance between the hole position and point R level or between

the initial level and point R level, the normal spindle speed may not be

reached at the start of hole cutting operation. In this case, insert a

dwell before each drilling operation with G04 to delay the operation,

without specifying the number of repeats for K. For some machines,

the above note may not be considered. Refer to the manual provided

by the machine tool builder.
