B-63944EN-2/02 PROGRAMMING 3.INTERPOLATION FUNCTION

- 21 -

Base circle

Start point

Involute curve

(X, Y)

End point

(Xo, Yo)

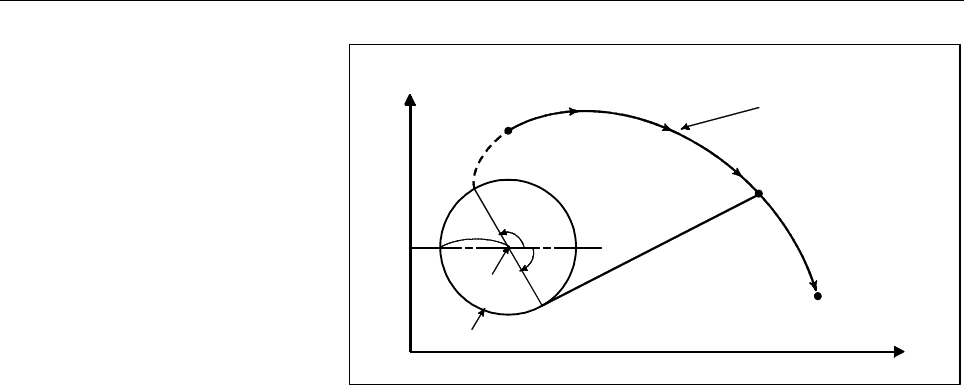

Fig. 3.1 (b) Involute curve

Involute curves on the Z-X plane and Y-Z plane are defined in the

same way as an involute curve on the X-Y plane.

- Start point and end point

The end point of an involute curve is specified using address Xp, Yp,

or Zp. An absolute value or incremental value is used to specify an

Xp, Yp, or Zp value. When using an incremental value, specify the

coordinates of the end point viewed from the start point of the involute

curve.

When no end point is specified, alarm PS0241 is issued.

If the specified start point or end point lies within the base circle,

alarm PS0242 is issued. The same alarm is issued if cutter

compensation C causes the offset vector to enter the base circle. Be

particularly careful when applying an offset to the inside of an

involute curve.

- Base circle specification

The center of a base circle is specified with I, J, and K, corresponding

to X, Y, and Z. The value following I, J, or K is a vector component

defined when the center of the base circle is viewed from the start

point of the involute curve; this value must always be specified as an

incremental value, regardless of the G90/G91 setting. Assign a sign

to I, J, and K according to the direction.

If I, J, and K are all left unspecified, or I0, J0, K0 is specified, alarm

PS0241 or PS0242 is issued.

If R is not specified, or R ≤ 0, alarm PS0241 or PS0242 is issued.
