6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 122 -

6.5 OVERVIEW OF TOOL NOSE RADIUS COMPENSATION

(G40-G42)

The tool nose radius compensation function automatically

compensates for the errors due to the tool nose roundness.

Workpiece

Insufficient

depth of

cutting

Shape processed without tool

nose radius compensation

Tool path without compensation

Tool path with compensation

Tool nose

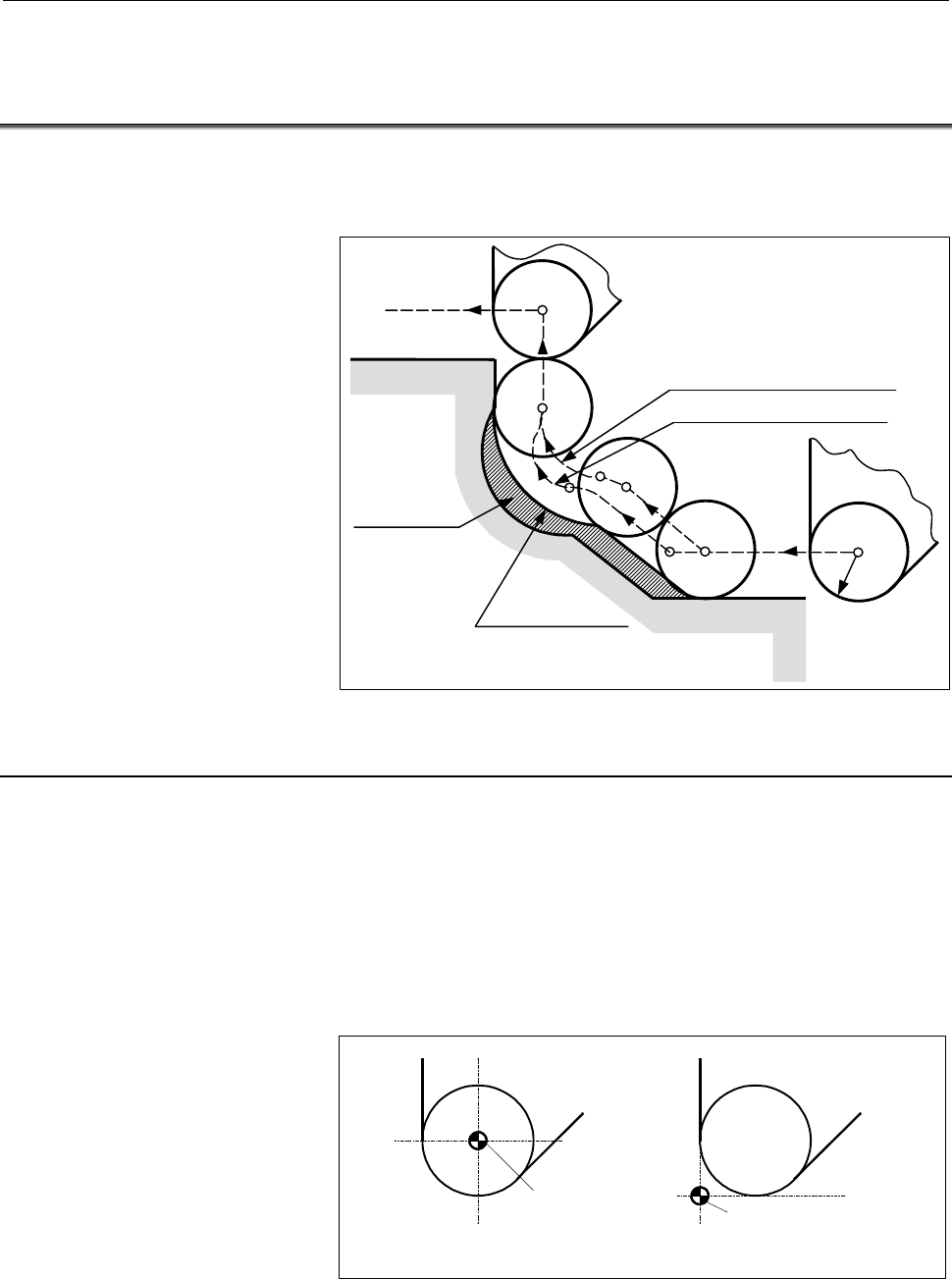

Fig 6.5 (a) Tool path of tool nose radius compensation

6.5.1 Imaginary Tool Nose

The tool nose at position A in Fig. 6.5.1 (a) does not actually exist.

The imaginary tool nose is required because it is usually more difficult

to set the actual tool nose radius center to the start point than the

imaginary tool nose.

Also when imaginary tool nose is used, the tool nose radius need not

be considered in programming.

The position relationship when the tool is set to the start point is

shown in Fig. 6.5.1 (a).

Start position

When programmed using the tool

nose center

When programmed using the

imaginary tool nose

Fig. 6.5.1 (a) Tool nose radius center and imaginary tool nose
