6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 158 -

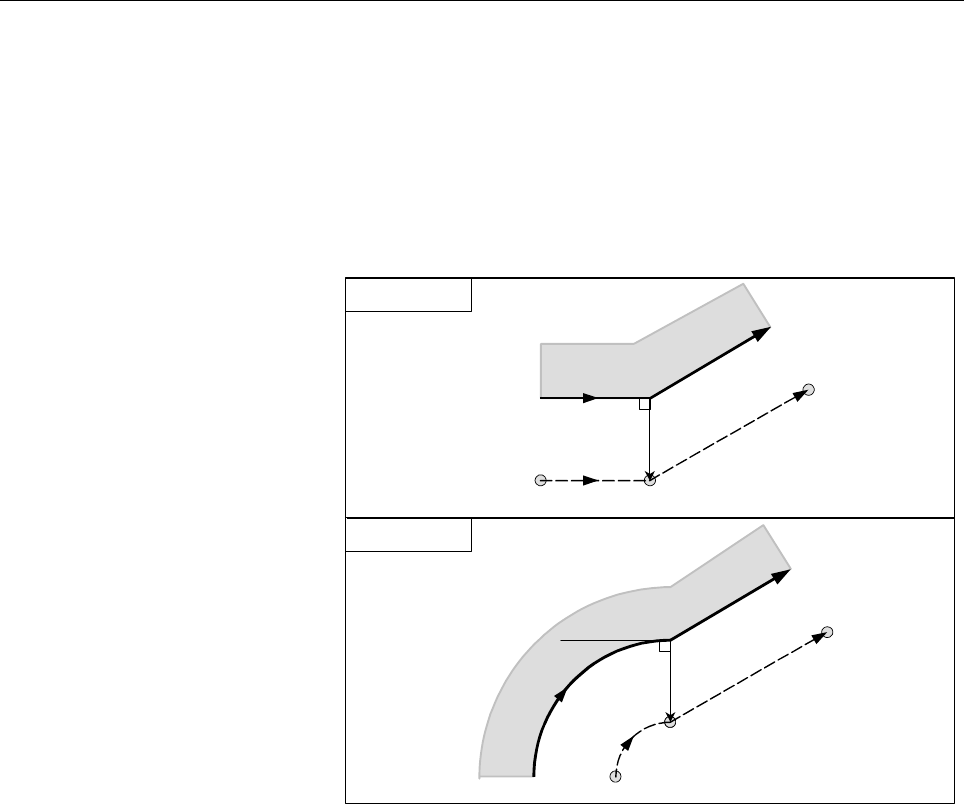

- Cutter compensation G code in the offset mode

The offset vector can be set to form a right angle to the moving

direction in the previous block, irrespective of machining inner or

outer side, by commanding the cutter compensation G code (G41,

G42) in the offset mode, independently. If this code is specified in a

circular command, correct circular motion will not be obtained.

When the direction of offset is expected to be changed by the

command of cutter compensation G code (G41, G42), see "Change in

the offset direction in the offset mode".

block specified by G42

Linear→Linear

Tool center path

Circular

→

Linear

Intersection

G42 mode

Programmed path

Intersection

G42 mode

block specified by G42
