B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 163 -

- A block without tool movement specified in offset mode

Unless the number of blocks without movement consecutively

specified is more than N-2 blocks (where N is the number of blocks to

read in offset mode (parameter No. 19625)) in offset mode, the vector

and the tool center path will be as usual. This block is executed at

the single block stop point.

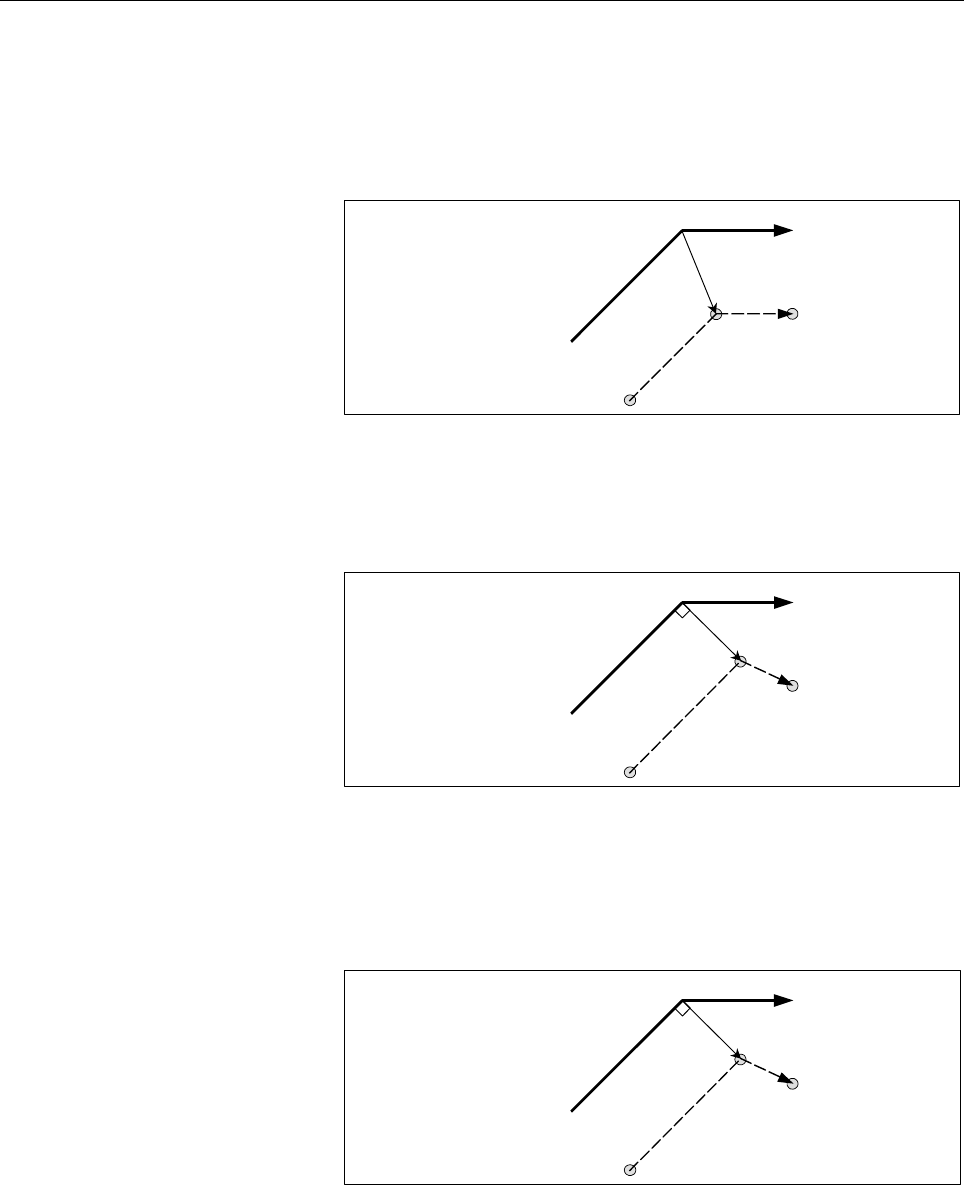

Programmed path

Block N7 is executed here.

Tool center path

N6 G91 X100.0 Y100.0 ;

N7 G04 X10.0 ;

N8 X100.0 ;

N7 N8

For an axis command for which the move distance is zero, however, a

vector with a size equal to the compensation value will be created

vertical to the movement direction in the previous block, even if the

number of block is 1. Note that specifying such a command may

result in overcutting.

N6 G91 X100.0 Y100.0 ;

N7 X0 ;

N8 X100.0 ;

N7 N8

Programed path

Tool center path

In offset mode, the number of blocks without movement consecutively

specified must not exceed N-2 (where N is the number of blocks to

read in offset mode (parameter (No. 19625)). If commanded, a

vector whose length is equal to the offset value is produced in a

normal direction to tool motion in earlier block, so overcutting may

result.

N6 G91 X100.0 Y100.0 ;

N7 S21 ;

N8 G04 X10.0 ;

N9 X100.0 ;

(No. of blocks to read in

offset mode = 3)

N7,N8 N9

SSS

Programmed path

Blocks N7 and N8 are executed here.

Tool center path
