6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 128 -

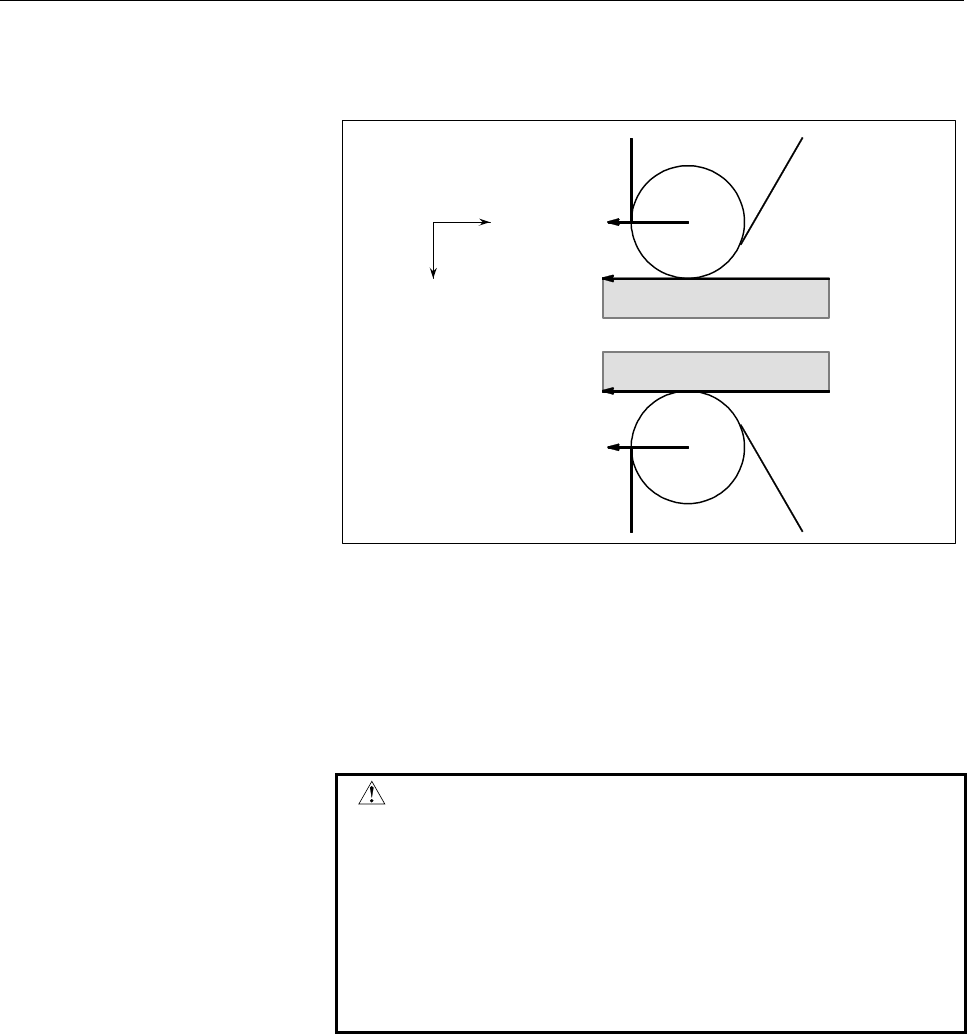

The workpiece position can be changed by setting the coordinate

system as shown below.

Workpiece

X axis

Z axis

G41 (the workpiece is on

the left side)

G42 (the workpiece is on

the right side)

NOTE

If the tool nose radius

compensation value is negative,

the workpiece position is changed.

Fig. 6.5.4 (b) When the workpiece position is changed

G40, G41, and, G42 are modal.

Don't specify G41 while in the G41 mode. If you do, compensation

will not work properly.

Don't specify G42 while in the G42 mode for the same reason.

G41 or G42 mode blocks in which G41 or G42 are not specified are

expressed by (G41) or (G42) respectively.

CAUTION

If the sign of the compensation value is changed

from plus to minus and vice versa, the offset vector

of tool nose radius compensation is reversed, but

the direction of the imaginary tool nose does not

change. For a use in which the imaginary tool nose

is adjusted to the starting point, therefore, do not

change the sign of the compensation value for the

assumed program.
