5.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-2/02

- 60 -

5.1.8 Tapping Cycle (G84)

This cycle performs tapping.

In this tapping cycle, when the bottom of the hole has been reached,

the spindle is rotated in the reverse direction.

Format

G84 X_ Y_ Z_ R_P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

F_ : Cutting feedrate

K_ : Number of repents (if required)

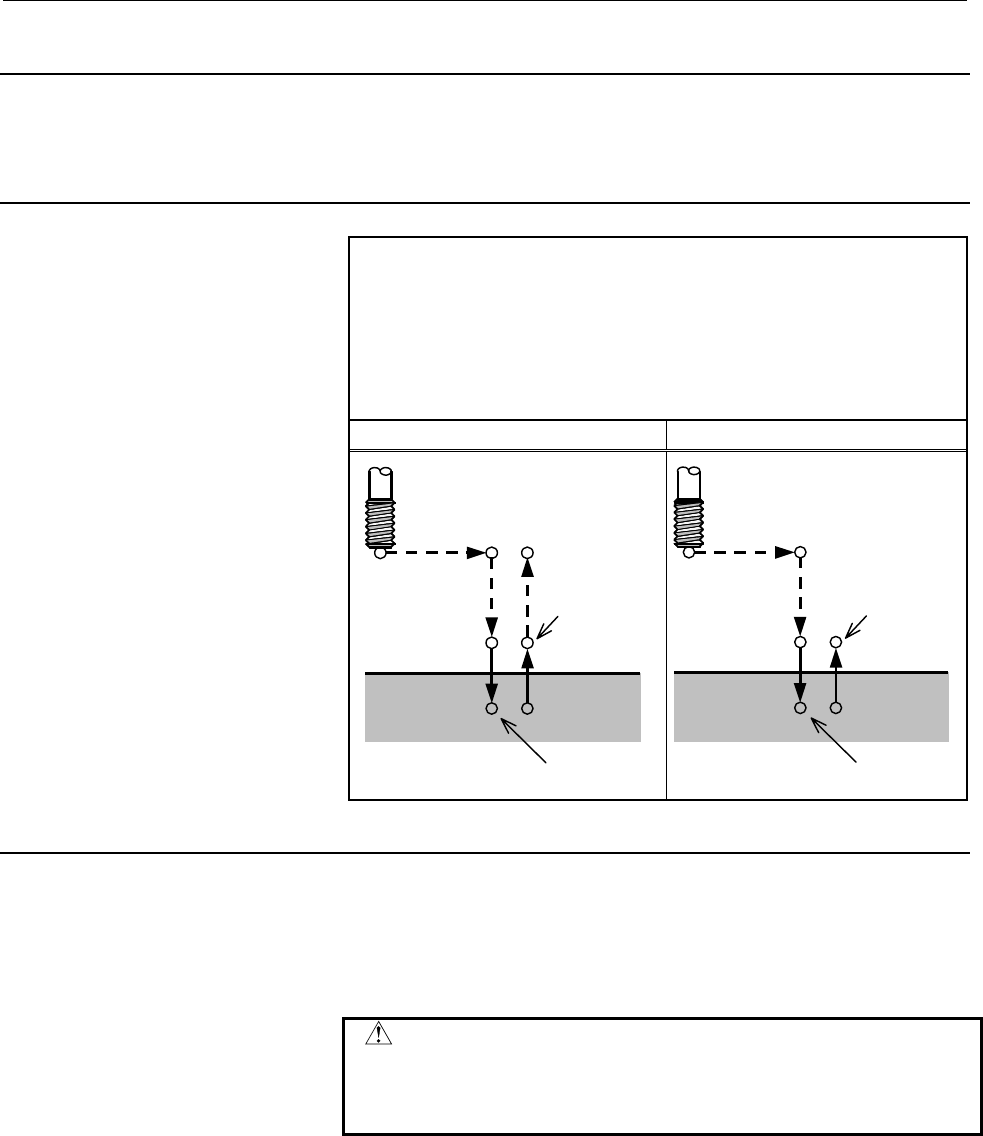

G84 (G98) G84 (G99)

Point R

Point ZP

Spindle CCW

Spindle

Initial level

Point R

Point ZP

Spindle CCW

Spindle

Point R level

Explanation

- Operations

Tapping is performed by rotating the spindle clockwise. When the

bottom of the hole has been reached, the spindle is rotated in the

reverse direction for retraction. This operation creates threads.

CAUTION

Feedrate overrides are ignored during tapping. A

feed hold does not stop the machine until the return

operation is completed.

- Spindle rotation

Before specifying G84, use an auxiliary function (M code) to rotate

the spindle.

If drilling is continuously performed with a small value specified for

the distance between the hole position and point R level or between

the initial level and point R level, the normal spindle speed may not be

reached at the start of hole cutting operation. In this case, insert a

dwell before each drilling operation with G04 to delay the operation,
