6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 106 -

6.2 AUTOMATIC TOOL LENGTH MEASUREMENT (G37)

By issuing G37 the tool starts moving to the measurement position

and keeps on moving till the approach end signal from the

measurement device is output. Movement of the tool is stopped when

the tool nose reaches the measurement position.

Difference between coordinate value when tool reaches the

measurement position and coordinate value commanded by G37 is

added to the tool length compensation amount currently used.

Rapid

traverse

Measurement

feedrate

(Start point)

Measurement position is commanded

with G37

B (Deceleration position)

C (Measurement position)

The tool stops when the approach end

signal goes on.

Compensation value = (Current compensation value) + [(Coordinates of the

point at which the tool is stopped) - (Coordinates of the programmed measure

ment position)]

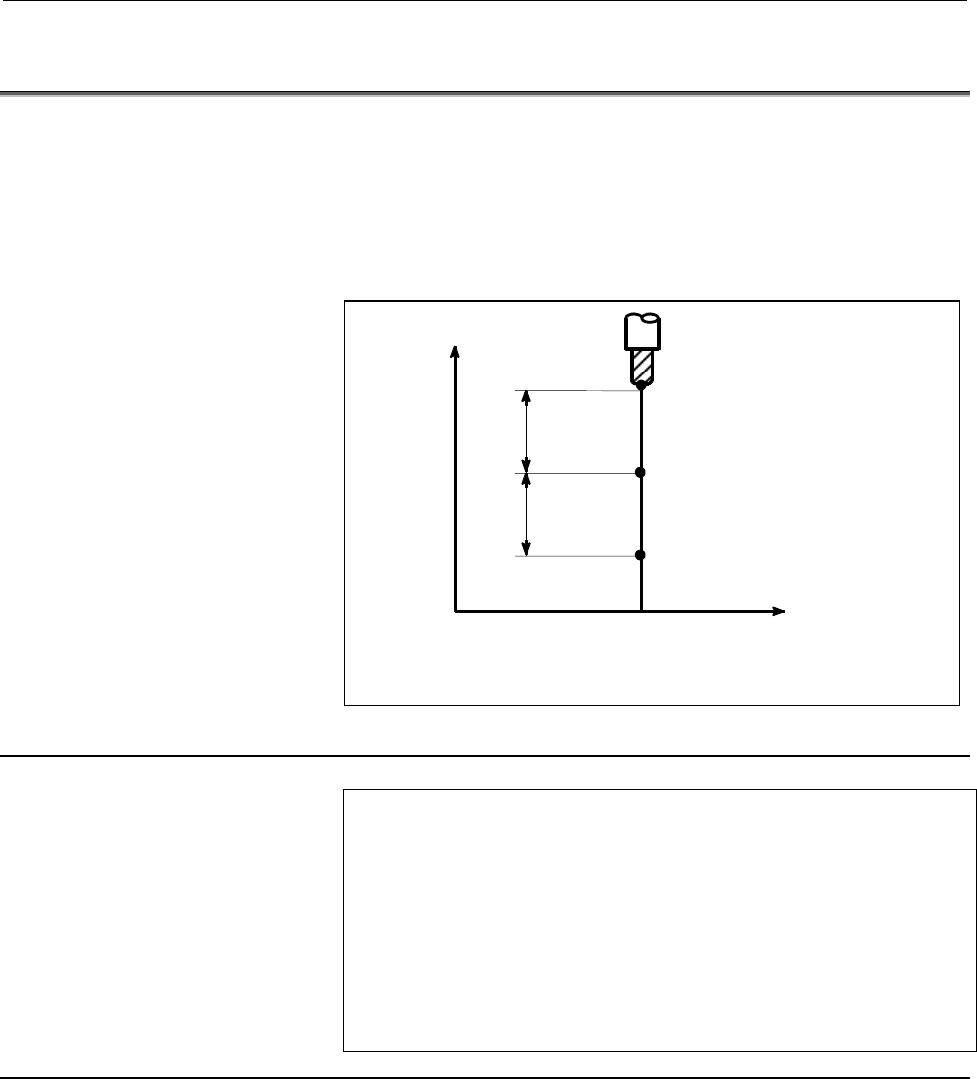

Fig. 6.2 (a) Automatic tool length measurement

Format

G92 IP_ ; Sets the workpiece coordinate system.

(It can be set with G54 to G59. See

Chapter "Coordinate System" in User’s

Manual (Common to T/M series.))

Hxx ; Specifies an offset number for tool length

compensation.

G90 G37 IP_ ; Absolute programming

G37 is valid only in the block in which it is specified.

IP_ indicates the X-, Y-, Z-, or fourth axis.

Explanation

- Setting the workpiece coordinate system

Set the workpiece coordinate system so that a measurement can be

made after moving the tool to the measurement position. The

coordinate system must be the same as the workpiece coordinate

system for programming.
