5.1.6 Peck Drilling Cycle (G83)

This cycle performs peck drilling.

It performs intermittent cutting feed to the bottom of a hole while

removing shavings from the hole.

Format

G83 X_ Y_ Z_ R_ Q_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

Q_ : Depth of cut for each cutting feed

F_ : Cutting feedrate

K_ : Number of repeats (if required)

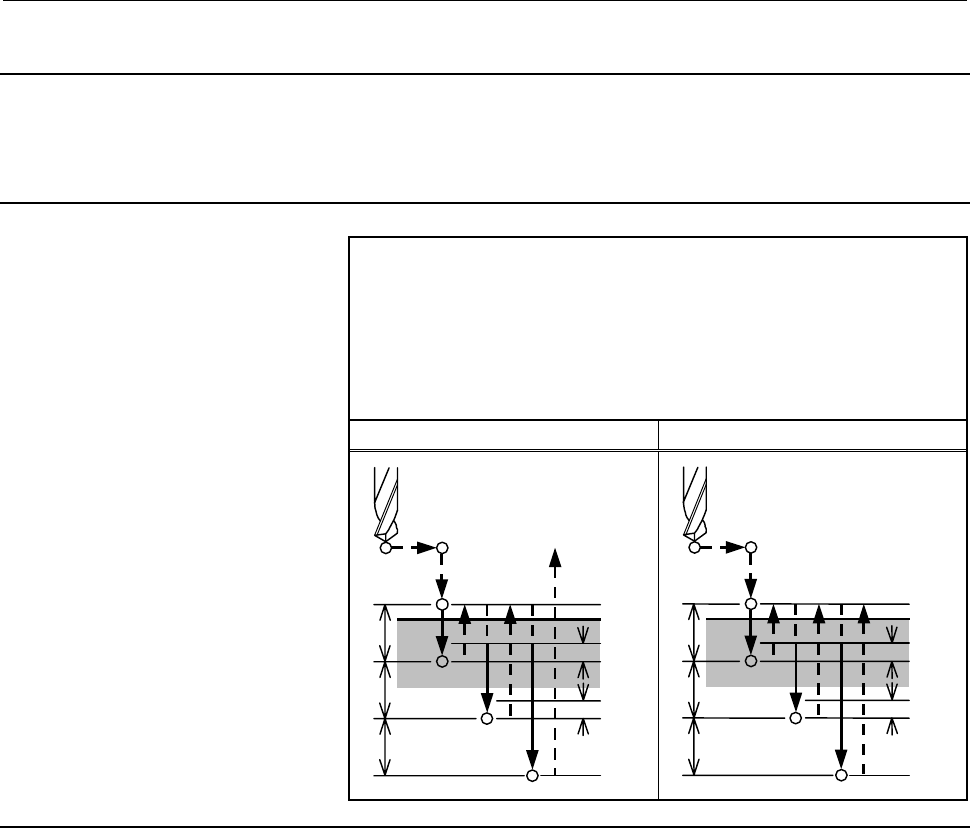

G83 (G98) G83 (G99)

Point R

Point Z

Initial level

Point R

Point Z

Point R level

Explanation

- Operations

Q represents the depth of cut for each cutting feed. It must always be

specified as an incremental value.

In the second and subsequent cutting feeds, rapid traverse is

performed up to a d point just before where the last drilling ended, and

cutting feed is performed again. d is set in parameter (No.5115).

Be sure to specify a positive value in Q. Negative values are

ignored.

- Spindle rotation

Before specifying G83, use an auxiliary function (M code) to rotate

the spindle.

- Auxiliary function

When the G83 command and an M code are specified in the same

block, the M code is executed at the time of the first positioning

operation. When K is used to specify the number of repeats, the M

code is executed for the first hole only; for the second and subsequent

holes, the M code is not executed.
