B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 129 -

Explanation

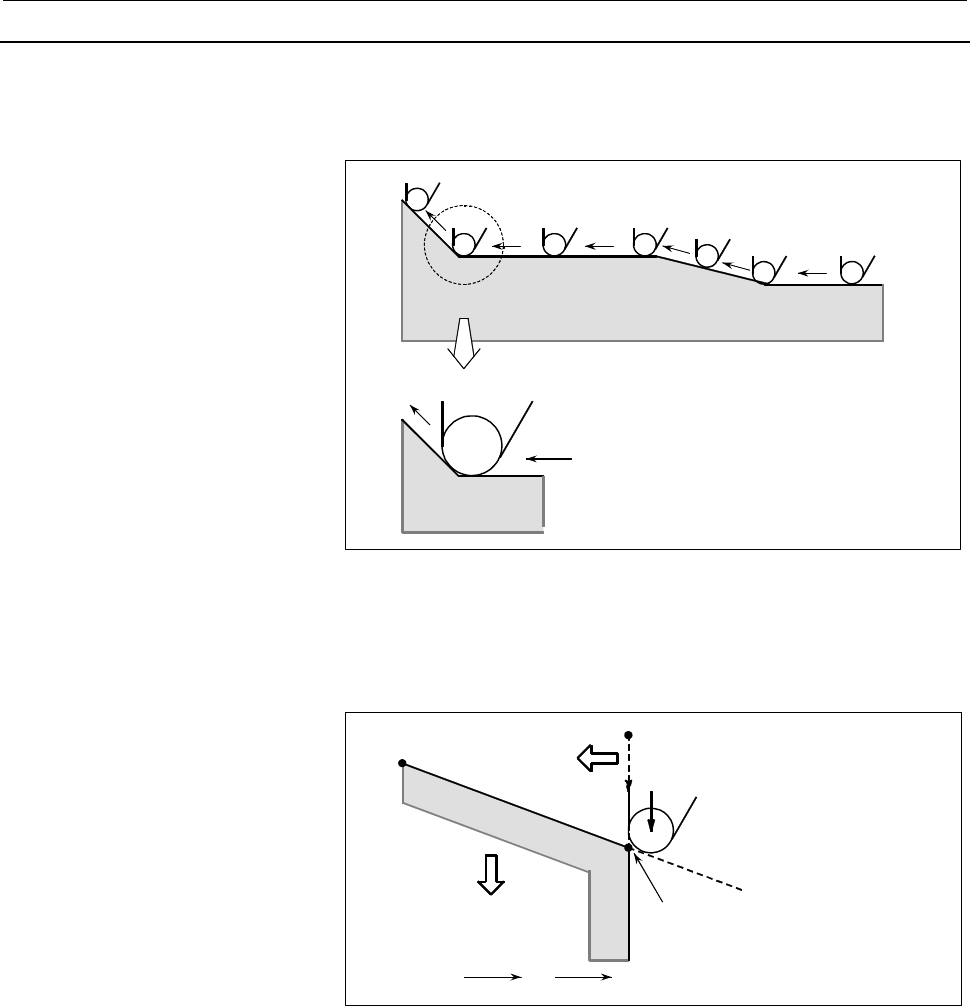

- Tool movement when the workpiece position does not change

When the tool is moving, the tool nose maintains contact with the

workpiece.

(G42)

(G42) (G42)

Enlarged

diagram

Fig. 6.5.4 (c) Tool movement when the workpiece position

does not change

- Tool movement when the workpiece position changes

The workpiece position against the tool changes at the corner of the

programmed path as shown in the following figure.

Workpiece

position

Workpiece

position

G42

G42G41

G41

Fig. 6.5.4 (d) Tool movement when the workpiece position changes

Although the workpiece does not exist on the right side of the

programmed path in the above case, the existence of the workpiece is

assumed in the movement from A to B. The workpiece position

must not be changed in the block next to the start-up block. In the

above example, if the block specifying motion from A to B were the

start-up block, the tool path would not be the same as the one shown.
