- Measuring the X-/Y-axis workpiece origin offset based on a reference hole

1 Connect a measurement probe, fitted with a sensor, to the

spindle.

2 Press mode selection switch HANDLE or JOG.

3 Set the workpiece origin offset measurement mode switch on the

machine operator's panel to ON. The workpiece origin offset

screen appears and "WOFS" blinks in the status display at the

bottom of the screen, indicating that the preparation required

prior to measuring the workpiece origin offset has been

completed.

4 Position the cursor to the workpiece origin offset number to be

used to store the offset (any of G54 to G59). No problem will

arise even if the cursor is positioned to the offset for other than

the X- or Y-axis.

5 Move the tool by means of manual handle feed or jog feed until

the measurement probe touches the circumference of the hole.

Do not move the tool along more than one axis at any one time.

6 As soon as the sensor detects contact with the circumference,

input a skip signal to the machine, thus stopping the axial

movement of manual handle feed or jog feed. Simultaneously,

the position at which feed stopped is stored as the first

measurement point. The machine coordinates of the stored

measurement point are displayed at the bottom right of the screen,

as follows:

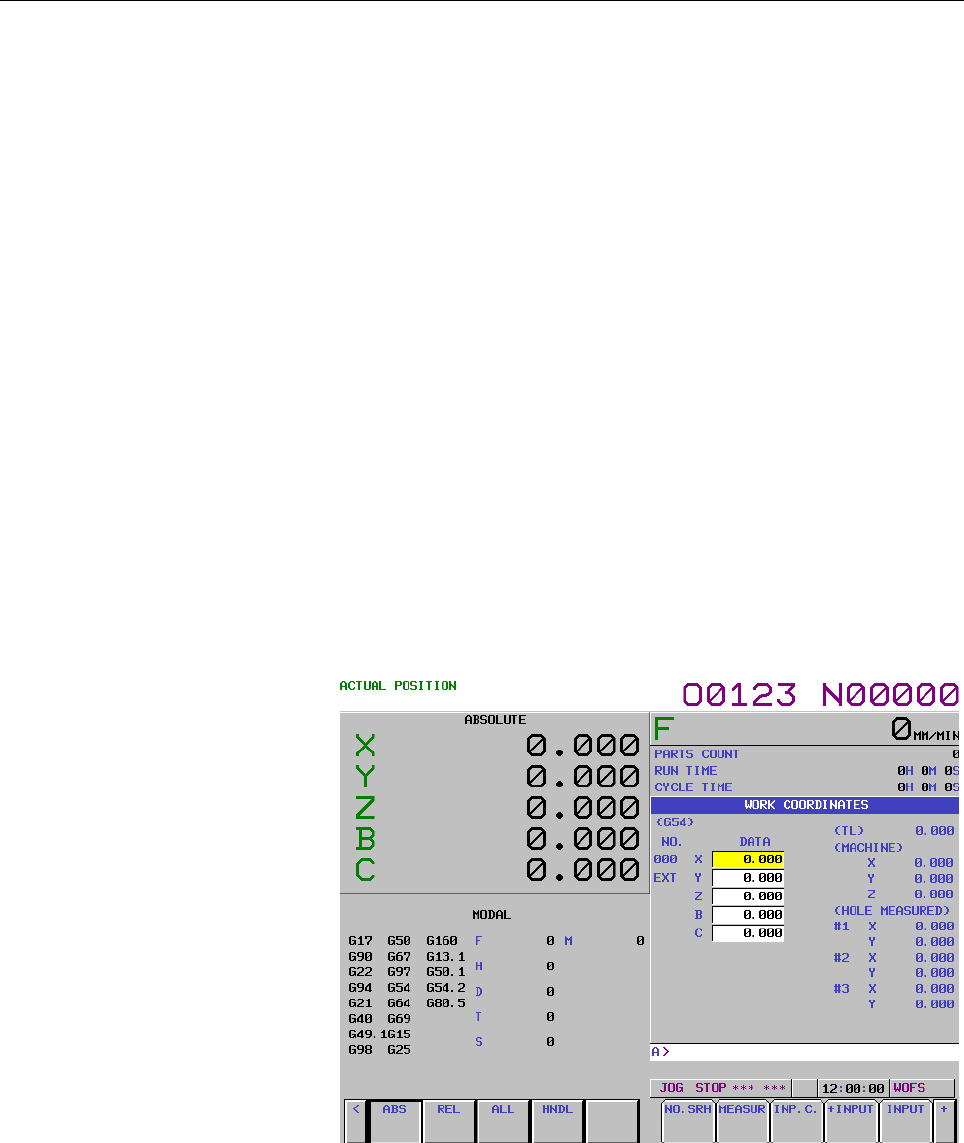

Fig. 1.1.3 (e) Workpiece origin offset setting screen
