B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 97 -

5.4 INDEX TABLE INDEXING FUNCTION

By specifying indexing positions (angles) for the indexing axis (one

rotation axis, A, B, or C), the index table of the machining center can

be indexed.

Before and after indexing, the index table is automatically unclamped

or clamped .

Explanation

- Indexing position

Specify an indexing position with address A, B, or C (set to bit 0 of

parameter ROTx No.1006).

The indexing position is specified by either of the following

(depending on bit 4 of parameter G90 No.5500):

1. Absolute value only

2. Absolute or incremental value depending on the specified G

code: G90 or G91

A positive value indicates an indexing position in the

counterclockwise direction. A negative value indicates an indexing

position in the clockwise direction.

The minimum indexing angle of the index table is the value set to

parameter 5512. Only multiples of the least input increment can be

specified as the indexing angle. If any value that is not a multiple is

specified, an alarm PS0135 occurs. Decimal fractions can also be

entered. When a decimal fraction is entered, the 1's digit corresponds

to degree units.

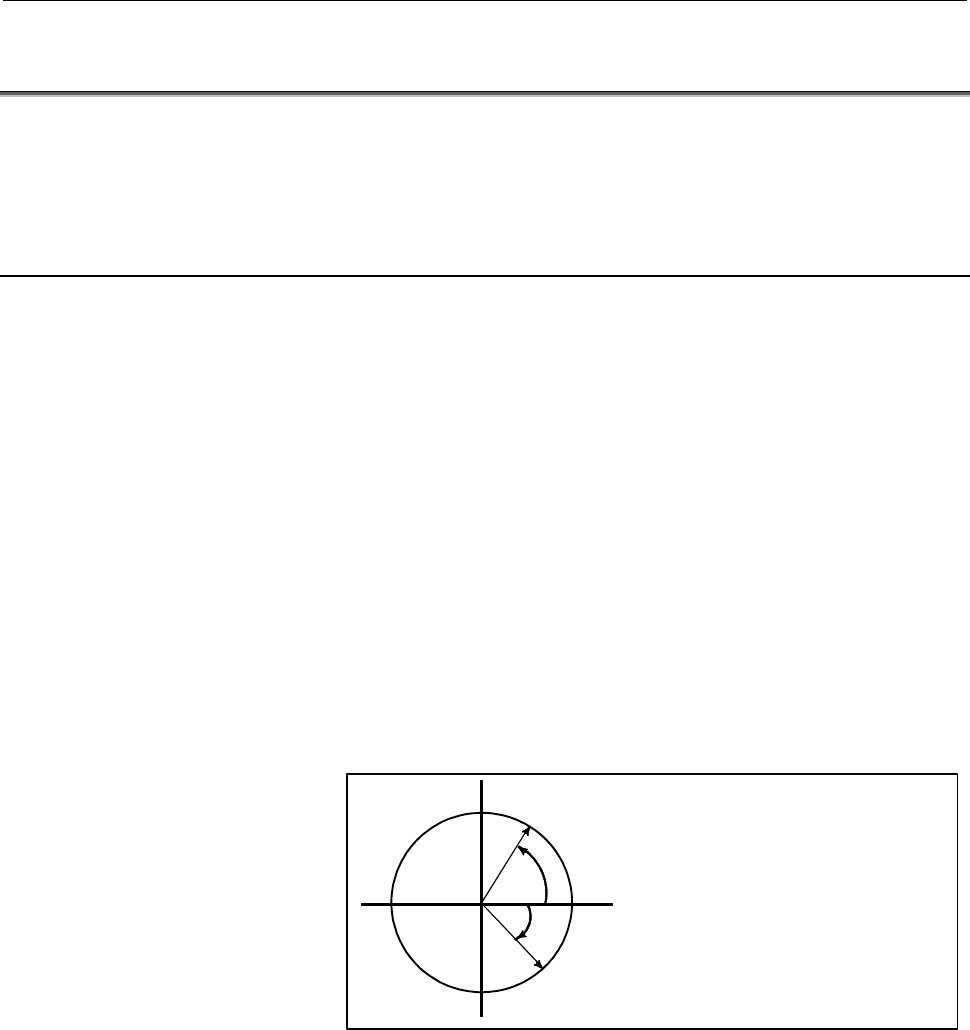

0°

-45

+60

Value specified for rotation from A to B

(case 2 described above)

G90 B-45.0 ; or

G91 B-105.0;
